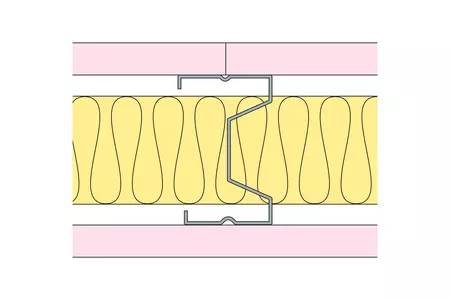

GypWall Single Frame - A206A296S (EN)
Verified 6 months ago
British Gypsum

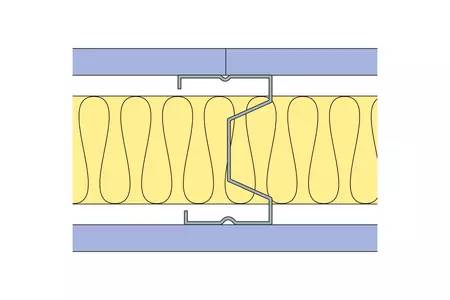

Two layers of Gyproc FireLine 12.5mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 100mm Isover Modular Roll in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 3000mm.

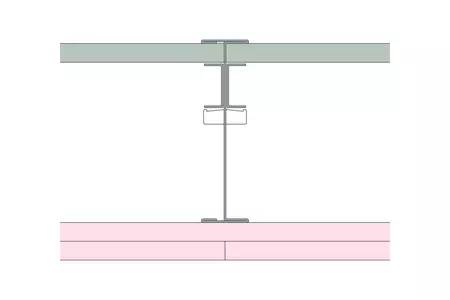

GypWall Shaft - A306039 (B) (EN)
Verified 6 months ago
British Gypsum
Gypframe 70 I 70 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G110 Retaining Channel. Two layers of Gyproc FireLine 12.5mm to non-shaft side. For heights up to 4400mm.

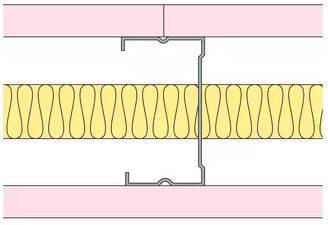

GypWall Single Frame Enhanced - X606A013 (EN)
Verified 6 months ago
British Gypsum

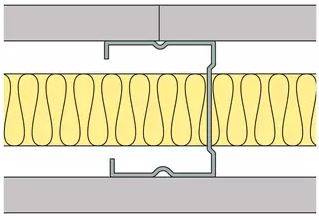

Inner layer of Gyproc SoundBloc 15mm with an outer layer of Rigidur H 12.5mm each side of Gypframe 146 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Single Frame - A206A306S (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc SoundBloc F 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.
GypWall Single Frame - A206A301 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc SoundBloc F 15mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. For heights up to 4000mm.
GypWall Twin Frame Audio - A326003B (B) (EN)
Verified 6 months ago
British Gypsum
Inner layer of Gyproc Plank 19mm with an outer layer of Gyproc SoundBloc 12.5mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe GAB3 Acoustic Braces at 3300mm centres. 100mm Isover Cladding Roll 40 in the cavity. For heights up to 5000mm.
GypWall Shaft - A306009 (A) (EN)
Verified 6 months ago
British Gypsum
Gypframe 146 TI 90 Tabbed ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G102 Retaining Channel. Two layers of Gyproc FireLine 15mm to non-shaft side. For heights up to 4200mm.
GypWall Single Frame - A206A179F (A) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm each side of Gypframe 146 AS 50 AcouStuds at 600mm centres. 60 minute EN fire height claim. For heights up to 4200mm.
GypWall Single Frame - A206A285 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc FireLine 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. For heights up to 4000mm.
GypWall Single Frame - A206A179 (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm each side of Gypframe 146 AS 50 AcouStuds at 600mm centres. For heights up to 4000mm.
GypWall Single Frame - A206265 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc FireLine 15mm each side of Gypframe 92 S 50 'C' Studs at 600mm centres. For heights up to 4000mm.
GypWall Single Frame - A206274S (A) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc FireLine 15mm each side of Gypframe 92 S 50 'C' Studs at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4200mm.
GypWall Single Frame Enhanced - A206A279 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc DuraLine 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Single Frame - A206A292 (A) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 100mm Isover Modular Roll in the cavity. For heights up to 4200mm.
GypWall Single Frame - A206A281S (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc SoundBloc 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.
GypWall Single Frame - A206A282 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc SoundBloc 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Single Frame - A206308S (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc SoundBloc F 15mm each side of Gypframe 92 S 50 'C' Studs at 600mm centres. 100mm Isover Modular Roll in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.
GypWall Twin Frame Independent - A216014 (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 48 I 50 ‘I’ Stud frameworks with studs at 600mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 2800mm.
GypWall Single Frame - A206A015 (A) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. For heights up to 4200mm.
GypWall Single Frame Enhanced - X606001 (EN)
Verified 6 months ago
British Gypsum
One layer of Rigidur H 15mm each side of Gypframe 70 S 60 'C' Studs at 600mm centres. For heights up to 4000mm.
GypWall Single Frame Enhanced - Q606065 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc DuraLine 15mm each side of Gypframe 70 S 50 'C' Studs at 600mm centres. 80mm Isover Modular Roll in the cavity. For heights up to 3800mm.
GypWall Staggered - A233023 (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm each side of Gypframe 60 I 70 ‘I’ Studs in Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Gypframe SC1 Spacer Clips and alternate studs staggered in the channel at 300mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 3900mm.
GypWall Single Frame Enhanced - A206258S (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc DuraLine 15mm each side of Gypframe 92 S 60 'C' Studs at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.
GypWall Twin Frame Audio - A326017B (B) (EN)
Verified 6 months ago
British Gypsum
Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe GAB3 Acoustic Braces at 3300mm centres. Four layers of 100mm Isover Cladding Roll 40 and two layers of 100mm stone mineral wool (min. 62kg/m3) in the cavity. For heights up to 8000mm.
GypWall Shaft - A306031 (B) (EN)
Verified 6 months ago
British Gypsum
Gypframe 92 I 90 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G105 Retaining Channel. Three layers of Gyproc FireLine 15mm to non-shaft side. For heights up to 6000mm.
GypWall Single Frame - A206A292S (A) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 100mm Isover Modular Roll in the cavity in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4200mm.
GypWall Single Frame - A206A243 (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm each side of Gypframe 146 AS 50 AcouStuds at 600mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Twin Frame Audio - A326016A (A) (EN)
Verified 6 months ago
British Gypsum
Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 3600mm centres. 100mm Isover Cladding Roll 40 in the cavity. For heights up to 4200mm.
GypWall Single Frame Enhanced - Q606A063SF (EN)
Verified 6 months ago
British Gypsum
Inner layer of Gyproc SoundBloc 12.5mm with an outer layer of Gyproc DuraLine 15mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. 90 minute EN fire height claim. For heights up to 4700mm.
GypWall Single Frame - A206A306 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc SoundBloc F 15mm each side of Gypframe 92 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Single Frame - H206015 (B) (EN)
Verified 6 months ago
British Gypsum
Inner layer of Gyproc WallBoard 12.5mm with an outer layer of Glasroc H TileBacker 12.5mm each side of Gypframe 70 S 50 'C' Studs at 600mm centres. For heights up to 4600mm.
GypWall Single Frame - A206016 (B) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc WallBoard 15mm each side of Gypframe 70 S 50 'C' Studs at 600mm centres. For heights up to 4900mm.
GypWall Twin Frame Audio - A326017B (C) (EN)
Verified 6 months ago
British Gypsum
Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe GAB3 Acoustic Braces at 3300mm centres. Four layers of 100mm Isover Cladding Roll 40 and two layers of 100mm stone mineral wool (min. 62kg/m3) in the cavity. For heights up to 9100mm.
GypWall Single Frame Enhanced - Q606A063F (EN)
Verified 6 months ago
British Gypsum
Inner layer of Gyproc SoundBloc 12.5mm with an outer layer of Gyproc DuraLine 15mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. 90 minute EN fire height claim. For heights up to 4700mm.
GypWall Twin Frame Audio - A326016A (C) (EN)
Verified 6 months ago
British Gypsum
Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 3600mm centres. 100mm Isover Cladding Roll 40 in the cavity. For heights up to 9000mm.
GypWall Shaft - A306023 (B) (EN)
Verified 6 months ago
British Gypsum
Gypframe 60 I 70 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G102 Retaining Channel. Two layers of Gyproc FireLine 15mm to non-shaft side and 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4500mm.
