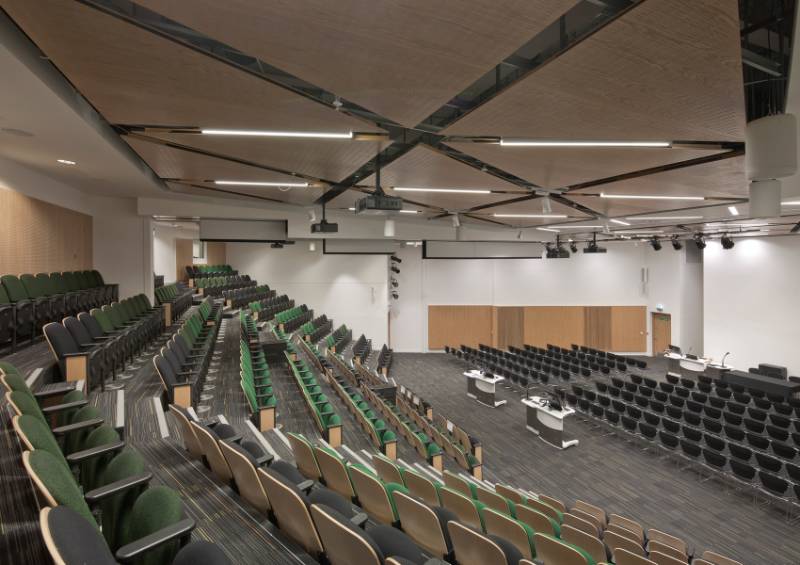

University of Strathclyde TICArchitect: BDPInstaller: Linear Projects LtdProduct: Gustafs Acoustic Panel System and Linear RibsGustafs Panel System was specified for the feature ceiling in the entry foyer as well as walls and ceilings in the lecture theatre at the University of Strathclyde Technology and Innovations building which opened in 2014.The £89 million campus will share facilities with local business, industry and public sector projects as well as being a leading research facility for Health, Energy and Environmental studies.Wall and ceiling panels in natural Oak veneer with SH8 slotted acoustic perforations were used on the atrium ceilings as well as the walls and ceilings of the lecture theatre. Gustafs Panel System was chosen to achieve a consistent look across wall and ceiling elements throughout the campus as well as for the flexibility of acoustic perforation styles and versatile Capax invisible installation systems.The Gustafs ceiling panels in both the foyer and lecture theatre of the Technology and Innovations centre at Strathclyde University were specified to be triangular, this design feature was approached differently for each area.The panels in the lecture theatre were cut and finished at the Gustafs factory to have finished edges on the finished triangles and a border of plain panel around the outside (completed using a special perforation pattern).In the foyer the panels were trimmed at the site finished with the white frames to give the illusion of triangular panels.In addition to Gustafs Panel System at the University, Linear Ribs were used across the vast atrium space along the mezzanine and balcony areas with varying widths of rib in Natural Oak VeneerLinear ribs were specified for its flexibility in design and installation, allowing the product to work continuously around the internal and external curves of the space.In addition to this, linear ribs enable the specifier to vary both the width and depth of each rib as well as the spaces between on a piece by piece basis giving infinite possibility for acoustic performance variations as well as value engineering.

Architect: Healy PartnersInstaller: John Paul ConstructionProduct: Gustafs Linear Ribs and Gustafs Panel SystemClose to 400m2 of Gustafs Linear Ribs and Gustafs Panel System in natural Walnut veneer were used to clad the walls and ceiling beams of the Padel Courts in the new leisure facilities at the Adare Manor in early 2020.The new Padel courts are a facility unique to the activity centre at Adare Manor. Padel is a hybrid sport between tennis and squash, traditionally played with 4 players and suitable for the whole family. Part of the larger expansion and restoration project the Padel Club also houses studio space for yoga as well as gym and swimming facilities, sauna and steam room.Gustafs Ribs were installed to the upper walls within the court area, 34mm deep ribs with 38mm gaps were used for 50% open area achieving class A for acoustic absorption, perfect for controlling sound levels in the sports hall.In addition to the ribs 171m2 of Gustafs Panel System was used to clad the steel ceiling beams in complimentary Walnut veneer. Specialist Gustafs capax profiles were used for their signature invisible fixing.

Architect: Allford Hall Monaghan MorrisInstaller: LacunarProduct: Gustafs Linear Ribs60m2 and around 500 individual ribs were installed to the walls and ceiling of the link bridge at the AHMM offices in London. Ribs were specified in varying depths and white foil wrapping for a subtle, textured, modern finish.“Having worked with GUSTAFS on previous projects such as Leonard Street, we knew to expect a quality product when specifying our own offices, AHMM City. As elsewhere in the fit out, we looked to use proprietary components in a new way.Installed on a tapered bridge linking two buildings with differing levels and heights, the installation on both walls and the ceiling provides an acoustic buffer between our open plan offices and meeting rooms.We specified white veneered GLS ribs of varying depths to amplify the unusual geometry of the space. Referencing Bridget Riley, we created a subtle visual illusion of increased width when crossing between the spaces.The LSA team ensured that the complex intersections we had developed were resolved and installed on site to a standard exceeding our expectations.”Lizi Cushen, Project Architect – AHMM“We have worked together for many years because the GUSTAFS team contribute to the collaborative process from inception to execution.”Simon Allford, Director – AHMM

Project: Ayr Academy, ScotlandProduct: OranitArchitect: BDP, GlasgowInstaller: Linear Projects, GlasgowAyr Academy, Scotland. BDP Architects (August 2017) Photos by Graeme DuncanSpecification:Oranit 7-501 Panels in Yellow PineQuantity:138m2  Oranit panels in PEFC Certified Yellow Pine were installed in rafts to the ceiling of the atrium space at the Ayr Academy campus which opened to students in September 2017.Shiluvit by Oranit was specified for it’s ease of design and installation as well as the stunning effect of slatted natural timber. The panels were installed in 12 rafts of 16 panels suspended at a slight angle to mirror the tilt and dimension of the true ceiling.The 6-year secondary school has state of the art classroom facilities for an engaging and high-tech learning experience as well as professional quality all-weather sports pitches as well as fitness, and dance suites which are available to the wider community. The school has followed suit from other local colleges and universities by including informal social and learning spaces in the atrium.The new campus is a huge step-forward from the previous historic 1880’s school and is inspiring enthusiasm and pride in all of it’s staff and students.In addition to the Oranit panels, LSA supplied Linear ribs to support the acoustics in the open plan main plaza of the school. The central drum clad in natural Oak ribs is a functional focal point of the space, housing a learning resource centre inside and hosting a computer classroom and social space on top.

Ayrshire College Main HallArchitect: Keppie DesignInstaller: DV McCollProduct: Shiluvit by Oranit250m2 of Shiluvit panels in 7-501A formation and Western Red Cedar were installed to the impressive wrap over wall and ceiling space at Ayrshire College in Scotland.Shiluvit panels were chosen in part for their ability to easily incorporate lighting and ventilation into the ceiling whilst also giving ease of access with the tip-and-tilt demountable design.In addition the Western Red Cedar chosen has significant natural colour and texture variation which gives the vast ceiling and wall space extra depth as well as a creative and bespoke feel.

Architect: Austin-Smith:LordInstaller: Lacunar LtdProduct: Gustafs Panel SystemOver 400m2 of Gustafs Panel System was installed to the walls of the Birmingham Royal Ballet during their £2.7m refurbishment in 2015. Acoustic panels were installed to two ballet rehearsal studios as well as the new informal performance space.In addition to the visual refurbishment of the space; the regeneration project aimed to improve the facility by upgrading the lighting, heating and ventilation, and accessibility, as well as improving administration and welfare areas.A mix of of SM5 and SM8 mini slotted acoustic perforations as well as nano acoustic perforations were used on the Birch, Oak, and White laminate faced panels. Slotted perforation styles give an elegant and dramatic finish to the panels whilst Nano perforations are almost invisible on the face of the panel, all three options provide up to Class B acoustic performance.

Architect: AtkinsInstaller: Vitec Ceilings and PartitionsProduct: Gustafs Linear RibA small but perfectly executed project at 75m2, the new Bracknell Forest Council chambers at the Times Square building in Berkshire is clad with Gustafs Linear Ribs to the ceiling and feature wall.The plain white ceiling ribs are organised into multiple square rafts across the space installed in alternating directions and interspersed with traditional ceiling tiles, lighting, and vents.The split feature wall which stands either side of the speakers’ podium and main panel desks is made up of a mixture of natural Oak and Bamboo veneer and painted ribs installed with irregularly positioned 45° angled joints.The ribs were delivered oversized and cut to size on site, the mitre joints were also cut on site by Vitec and joined using extra-long installation clips to keep the joint inline and give the illusion of a dip-dyed rib.

Architect: Wellwood LeslieInstaller: Profile Projects LtdProduct: ‘Shiluvit’ by OranitOver 400m2 of Shuluvit panels in WN-2592 (Oak effect) stained yellow pine in 7-600 format were installed across the ceilings of the 2018 Carnoustie Golf Link extension project.The extension was designed to complement the famous golf course; adding new facilities such as golf simulators and The Rookery Scottish-fusion restaurant and bar designed to make the club more accessible to the public.The Shiluvit panels along with LSA Black acoustic mineral wool were used to give a subtle dampening to the spaces and offset the large windows and skylights and exposed metalwork. Flexible panel cross ties were used to allow for a smooth wrap-over ceiling installation.

Architect: Artillery Architecture Installer: Stortford Interiors Product: Gustafs Panel System LSA supplied almost 200m2 of custom perforated Gustafs ceiling panels to the feature catwalk ceiling which spans the full length of the Catlin Insurance offices in London.This was our first project working with Gustafs to use custom perforation patterns, the chosen style is a backlit semi bespoke geometric pattern designed to be rotated to give the illusion of random perforations along the 60m long stretch whist giving excellent acoustic control. This design was previously used by Gustafs in the Swedish Embassy in Washington DC and we are very proud to have this project in our portfolio.

Dundee College Gardyne CampusArchitect: Archial NORRInstaller: GHI ContractsProduct: Gustafs Panel System500m2 of Gustafs Panel System in Gemini Walnut veneer were installed to the feature wrap-over wall and ceiling at the multi-million-pound makeover of the Gardyne Campus at Dundee College.SH8 acoustic perforations were used on small section of the panels in the main atrium. Slotted perforations give the illusion of a grille whilst providing class C acoustic absorption above the college walkways.Gemini Walnut veneer was chosen for the space to achieve a greater consistency in colour, tone, and texture, across the space. Gemini veneers from Gustafs are natural veneer that is stained to match a chosen timber species; doing this achieves a consistent colour across the panels as well as making them less photosensitive and less susceptible to natural colour variation over time.

Architect: Archial NORRInstaller: GHI ContractsProduct: Gustafs Panel System500m2 of Gustafs Panel System in Gemini Walnut veneer were installed to the feature wrap-over wall and ceiling at the multi-million-pound makeover of the Gardyne Campus at Dundee College.SH8 acoustic perforations were used on small section of the panels in the main atrium. Slotted perforations give the illusion of a grille whilst providing class C acoustic absorption above the college walkways.Gemini Walnut veneer was chosen for the space to achieve a greater consistency in colour, tone, and texture, across the space. Gemini veneers from Gustafs are natural veneer that is stained to match a chosen timber species; doing this achieves a consistent colour across the panels as well as making them less photosensitive and less susceptible to natural colour variation over time.

Project: Memorial Bahçelievler Hospital, Istanbul [TR]Year: 2018Architect: Memorial Project ManagementProducts: LOOP Type 3 and acoustic metal panel sub-ceiling Innovative exclusivity: In Istanbul, the impressive Memorial Bahçelievler Hospital has just been opened. A world-standard hospital that satisfies international accreditation and quality standards – the focus is always people with their individual needs.This hospital, in the centre of the Eurasian metropolis is one of the most comprehensively equipped healthcare complexes in the world. It has received Leed Platinum status (Leadership in Energy and Environmental Design), the most prestigious green certificate awarded in relation to the design of leading institutions. Modern and futuristic – this is the architectural claim of this hospital, which extends over a surface area of 72 000 m². One component of this comprehensive concept is the durlum LOOP® design ceiling, used in the lobby, the vestibule areas and the atrium.Powder-coated in gold bronze, this design ceiling creates a high-end and aesthetically pleasing atmosphere in these interior spaces. With round apertures as its hallmark feature, this unique ceiling blends harmoniously into the interior design. Curved, organic shapes create an impression of infinite distance. Perfectly matched to the carefully crafted interior decor, a vision of absolute perfection is created.Moreover, this ceiling system is more than simply an eye-catching feature: The LOOP® elements are attached by magnets to the suspended ceiling, made of rectangular metal panels. Perforated and lined with fabric, the acoustics are enhanced greatly – which also improves the feel-good factor.The Memorial Bahçelievler Hospital is based on a comprehensive concept in which nothing is left to chance. A hospital in which people occupy centre stage – a place to enjoy.

PROJECTSiemens, Warsaw [PL]COMPLETION2020ARCHITECTAPA Wojciechowski ArchitekciINTERIOR DESIGNERMassive Design WarsawPRODUCTSLOOP TYPE 2Aluminium; powder-coated in RAL 9016; deep-drawn perforation with a diameter of 60 mm; free cross-section >50 %; area: 165 m2In 1847, just six years after founding what is now the international corporation of Siemens, work commenced on construction of a railway telegraph line from Warsaw to the Prussian border, the start of the company’s success story in Poland. A success story that continues to the present day.In 2020, Siemens opened a new office building in the Warsaw district of Praga, planned around the concept of Activity Based Working. Our visually seamless LOOP design ceiling blends into this concept perfectly. It was used in the open-plan waiting areas and at reception, accentuating these through its organic shape.Our very aesthetic, open metal ceiling is an integral part of the sustainable, harmonious and feelgood interior design which focuses on flexibilization and optimization of the working environment.

PROJECTACTA, AmsterdamCOMPLETION2010ARCHITECTBenthem CrouwelPRODUCTSRectangular metal panels on two levels without visible sagging, 1 mm [dimensions 3950 x 900mm], approx 900 m2Perforated acoustic panel ceiling at the Academic Center for Dentistry in Amsterdam.

PROJECTCentral library in KAP 1, Düsseldorf [DE]COMPLETIONNovember 2021ARCHITECTSchrammel Architekten Stadtplaner PartGmbB & RKW Architektur + [ Düsseldorf ]LIGHTING PLANNERBartenbachPRODUCTSRectangular metal panels with torsion springs as a special version of S4.7 K-TS0.96 mm thickness of aluminium [DUROPLAN A], dimension [L x W] 1396 x 353 mm [approx. 400 m²]More than 135 years of history, always changing with the times: The municipal libraries in Düsseldorf can look back over an eventful time. At the end of last year, to reflect changing requirements, the central library in the KAP 1 cultural centre opened its doors on Konrad-Adenauer-Platz 1.Located directly in front of the railway station, this library extends across two floors with a total surface area of about 8000 m², attracting visitors young and old to browse, learn and linger.The ceiling design for the rectangular vestibule area presented a particular challenge to the renovation of this former postal service site. This called for a product that delivered precisely fitting angles while also bringing sufficient daylight into the library. An optimum daylight solution was provided by durlum.Made of highly reflective aluminium, these visually prestigious panels direct daylight effectively into the interior, contributing to the feel-good factor for visitors. The easy-to-install sprung system can either present a seamless appearance without joints, or can provide contrasting accentuation with visible joints. It was therefore possible to highlight this uniform ceiling pattern with joints 13 mm in width for light integration. There are also no obstacles to any revision work that may be required. The panels are quick and easy to swivel downwards and remove. Here, the position of individual elements is defined by the indexed mounting.

The Sands - Durham WaterfrontArchitect: Ryder Architecture LtdInstaller: Pennine ContractsProduct: Durlum Polylam BafflesLSA Projects supplied over 300 linear metres of Durlum Polylam baffles to the new facility The Sands on Durham Waterfront in the city centre. The new riverside development was intended to move the County Council headquarters into the city centre for improved public transport connections for staff and other visitors.In 2022 the building applied for change of use planning to convert the landmark building into additional learning spaces for Durham University Business School. The change of use allows the department of the Russell Group university to move straight into the ready-made facility after delays with their original plans for a different site.The £50m facility has space for the 2,300 students and members of staff at the business school across the 1.4 hectare site. In addition to traditional learning spaces the building has modern working space for staff and academics and hopes to attract leading businesses to work with the university and graduates.Durlum Polylam baffles were used for the feature ceiling in the main event space. The ceiling is made up of 320mm deep 100mm wide baffles in concentric squares with the outer square measuring an impressive 20 metres across. Polylam pieces were finished in a Dur-Graphic faux Cherry veneer print and mounted in 9 double-row rings with alternating strip lighting and integrated ventilation systems.Polylam from Durlum is a versatile ceiling system made up of vertical baffles available in a range of sizes up to 100mm wide by 800mm deep. Pieces can be installed using suspension grid systems available from Durlum in a variety of ways including independent mounting and group mounting with regular spacing and options for demount-ability.Baffles are made from either galvanised sheet steel or aluminium and finished in a choice of RAL colour powdercoating as a standard with options for gloss and metallic finishes as well as Dur-Graphic and Duroplan printed designs. Acoustic perforations can also be applied to the baffles as well as incorporating Dur-Sonic acoustic mineral wool filling to the inside of the hollow baffle lengths.

Universal Music Group – 4 Pancras Square, London
Architect: Aros
Installer: BOK Construction Ltd
Product:  Durlum PolylamIn the summer of 2018 Universal Music Group joins the likes of Google and Louis Vuitton inside the commercial floors of Eric Parry Architects’ Pancras Square 9 building development in Kings Cross, London. UMG’s 1,000 strong workforce occupy the entirety of the buildings 10 floors and 174,570 sq ft of floorspace.LSA Projects Ltd supplied 1,532 Durlum Polylam baffles (roughly 1000m2) to the project in 4 different lengths and custom timber effect finishes: natural oak, light stained oak, medium stained oak, and light grey stained oak. The baffles are installed independently at varying pitches and offset linear spacings to encourage visual flow through the space and elegant incorporation of linear lighting.By using metal baffles rather than a solid or wrapped timber product the architect and client were able to achieve the effect of a linear timber ceiling on a more dramatic scale than would be possible with natural wood. The baffles are also finished with micro perforations to the vertical sides and are filled with mineral wool for additional acoustic control.

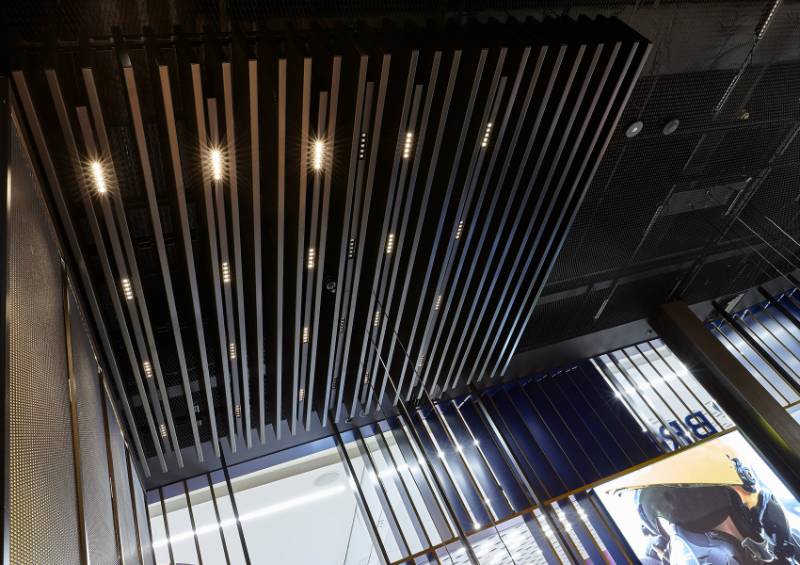

Architect: Breitling UK LtdInstaller:  Barnwood ConstructionProduct:  Durlum Polylam and RhombusA mixture of Durlum Rhombus expanded metal ceiling panels and Durlum Polylam acoustic metal baffles were supplied to Breitling UK Ltd for their Westfield White City store.Rhombus panels we’re produced to fit around feature elements of the shop’s ceiling space including structural beams and the curved storefront, in total 7 special sizes we’re designed by LSA alongside 3 types of standard rectangular panel.All pieces were powder coated with RAL 9004 (Black) for an industrial feel. 27 Polylam baffles with L6 perforations and filled with acoustic mineral wool were installed below the Rhombus panels above the till desk and signature black and gold ‘B’ wall.

PROJECTSecondary school in Grüze 5, Dübendorf [CH]COMPLETIONOctober 2023ARCHITECTStutz Bolt Partner Architekten AGPRODUCTSTANGENTA Y100 luminaireLight distribution: 2 x 60°; light colour: 4000 K; DALI dimmable; CRI > 80; LED: 3 x 34.5 W; dimensions [L x W x H]: 1,550 x 100 x 100 mm [72 units].S7 RHOMBOS TAIFUN expanded metal ceiling system1.5 mm thickness of black sheet; mesh size: 44 x 12 x 3 x 1.5 mm; dimensions: 980 x 790 mm and 1,650 x 680 mm; powder-coated in RAL 9016 matt [576 units] The new extension to the school building at Dübendorf-Schwerzenbach blends seamlessly into the existing complex and, with a lightness of design touch and its versatile range of usage options, it takes a big step towards modern school infrastructure. This building has been designed to enable it to be adapted to suit changing requirements in future. The school building is constructed on a double gym facility, two thirds of which are recessed below ground level, receiving natural daylight through a strip of windows at the top of its walls. When needed, the TANGENTA-Y100 luminaires supplied by durlum can be switched on. These deliver high lighting intensity combined with superlative lighting efficiency. These luminaires are discretely integrated in the S7 RHOMBOS TAIFUN expanded metal ceiling system with tested ball impact resistance to fulfil the special requirements of sports hall. Combined with its small mesh size, the white, powder-coated ceiling imbues an aesthetic appeal to this hall, which is also used by the general public. All entirely in sympathy with the architectural vision.

PROJECTmedi, Bayreuth [DE]COMPLETIONMarch 2023ARCHITECTSeiler Architektur GmbH / kadawittfeldarchitekturPRODUCTSTICELL in outdoor and indoor areas:White strip-painted aluminium; cell dimension: 54.55 x 54.55 mm; height: 40 mm, format 1200 x 600 mm; [1630 m²]STAR 3:White strip-painted aluminium; width of blade: 3 mm; height of blade: 20 mm; pitch: 20 mm [1700 m²]TANGENTA-H special version:Surface-mounted luminaire; light distribution: 2 x 35°; wide-angle; light colour: 3500 K; DALI dimmable [320 units]PUNTEO-Q50:Wide-angle downlight; light distribution: 2 x 55°; light colour: 3500 K; CRI >80; DALI-dimmable [40 units]PUNTEO-J85:Cardanic recessed downlight; light distribution: 2 x 30°; wide-angle; light colour: 3500 K; CRI >80; DALI-dimmable [6 units]With its new head office building in Bayreuth, medi GmbH & Co. KG , a manufacturer of medical aids, has created an open architecture concept that aims to promote dialogue between its employees. However, it is still possible to work centrally with additional break-out areas such as quiet workplaces.The ceiling and lighting solutions provided by durlum underline this architectural concept. The ’woven’ TICELL open-cell ceiling is used outdoors as well as indoors. In combination with the special version of the TANGENTA luminaire, this ceiling-lighting integration creates a unique look that gives the workspaces a modern, soothing lightness.In the washroom and toilet areas, the linear STAR 3 open-cell ceiling with its clearly defined edges sets architectural accents and creates a unique appearance.With this investment in its new building, medi has created a modern world of work, an impressive contribution towards the status of Bayreuth-East as a location for industry.

PROJECTAquilana, Baden [CH]COMPLETIONMarch 2023ARCHITECTofficeKonzept GmbHPRODUCTSTICELL-N open-cell ceilingSingle-louvre open-cell ceiling made of ’woven’ aluminium; cell dimensions: 33 mm; height: 40 mm; rectangular and round design; white strip-painted [74 m²]TANGENTA-Q24 linear LED lightingLight distribution: 2 x 60° wide distribution; light colour: 4000 K; DALI dimmable; CRI > 80; various dimensions [approx. 15 linear metres]PUNTEO-N 1x1 S02 LED downlightLight distribution: 2 x 38° wide distribution; light colour: 4000 K; CRI > 80 [81 units]’Health for Generations’ – Aquilana Versicherungen has been committed to this guiding principle for the best part of 130 years. This company values direct and personal contact to its customers. This is reflected in the modern design of its new customer zone. Sustainable materials, plants and natural colours create a pleasing atmosphere. The reception area is visually fascinating thanks to the round curves of the TICELL-N single-blade open-cell ceiling made of ’woven’ aluminium. The integrated and highly efficient PUNTEO-N downlights feature superlative anti-glare properties while also delivering maximum light output for a pleasing and well-lit ambience. In the consulting rooms, TICELL-N combines with the elegant TANGENTA-Q24 linear lighting installed above the open-cell ceiling and with LED spotlights to create unique light reflections, bathing these interior spaces in homogeneous light. Aquilana’s generously proportioned customer zone succeeds in creating interior spaces that situate customers and employees centre stage.

Architect: Barber Casanovas RufflesInstaller: S J EasternProduct: Gustafs Acoustic Panel System700m2 of Gustafs Panel System in Natural Oak veneer with PD8 and PH10 perforations were installed to the walls of the central atrium as well as the walls and ceilings of the 150 seat auditorium at the European Bioinformatics Institute (EBI) Technical Hub at the Genome Campus in Cambridge.The £17m, 5000sqm building is a collaborative research and training base for up to 225 staff from 85 research companies covering fields including bioinformatics and molecular data as well as pharmaceutical and agricultural studies.In addition to the acoustic panel system, LSA supplied over 500m2 of 44mm deep linear ribs in Natural Oak veneer were installed to the walls of the central atrium as well as the walls and ceilings of the auditorium.

Shiluvit’ by Oranit270m2 of Shuluvit panels in 7-501 format and American Red Oak were installed to the ceilings of various classrooms and lecture spaces at the Edward Boyle library at Leeds University.
Shiluvit panels were chosen in part for their ability to easily incorporate lighting and ventilation into the ceiling whilst also giving ease of access with the tip-and-tilt demountable design. The ceilings were installed as part of the £15m redesign of the historic Grade II listed library building which began in 2015 and was finished for the start of the January term of 2017. The regeneration project was designed to improve the student experience of the space, an additional 1,000 study spaces were added as well as a dedicated post-graduate hub in addition to the lecture and seminar rooms.We are also very pleased to share that the library regeneration project was the winner of a Leeds Architecture Award in the Conserved Building category. At LSA we believe in longevity of design and installation and are proud to offer all of our products with industry leading warranty periods and extended lifespans. We are happy to know that students at Leeds University will be able to enjoy our ceilings for many years to come.

The sound effectAt the same time, it provides effective sound dampening with an impressive acoustic class of ‘A’ to create a harmonious environment wherever it is specified. Feltfon Linear’s appearance is akin to wool, it has a strong textural appeal and represents a further exploration of material innovation.Based on a linear design and so in keeping with Gustafs well-known design language, this iteration of Feltfon can be specified with strips of wood in between the felt ribs, creating an appealing nature-inspired surface solution.Although this solution can be customised for each project, it is a uniquely designed ready-to-use system. Unlike most felt installations, Feltfon Linear uses the standard Capax Quick-Up installation system for walls and ceilings. Fully demountableThis system is sturdy for use in high traffic environments, it has the benefit of being able to grip multiple rib widths and it is also fully demountable during or at the end of its useful life. The range has a thickness of 9mm: comparable products do not usually have such generous proportions. This means it is suitable for high-traffic commercial application, for example, in school environments and other public spaces. Gustafs Acoustex material has a fire rating of B-s1,d0, in line with Gustafs continuing commitment to the fire safety of its products.Sustainable and flexible choiceFlexible in its design, the Feltfon Linear ribs can be chosen from a mix of three wool shades of grey, with many widths and depths to choose from as well. It is a sustainable choice too, with this next generation textile composed from a minimum of 50% post-consumer recycled material.Feltfon Linear pushes the boundaries of what is expected of a felt product system creating an attractive practical solution with infinite possibilities.Feltfon LinearFeltfon Wall installationFeltfon Ceiling installation

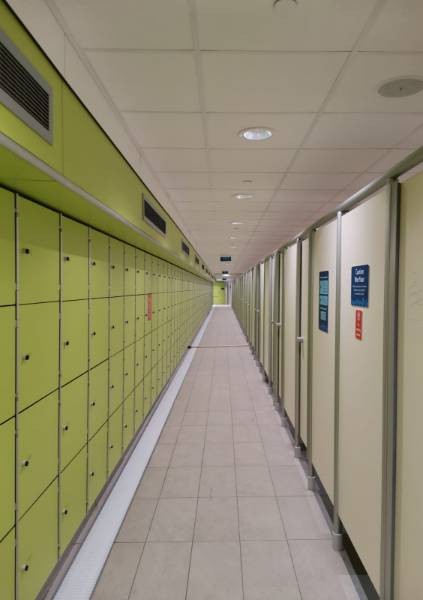

Architect: Holder Mathias ArchitectsInstaller: Bowmer and Kirkland, LSA Projects Ltd, and Geschwender
Product: Geschwender Lockers, Cubicles, and Accessories with Metra Electronic Locking SolutionsLSA Projects Ltd and Geschwender have been working with Center Parcs since 2010 to refit the changing areas at their UK sites.
In total LSA have supplied over 3,000 lockers to sites at Elvedon, Whinfell, Woburn and Sherwood in addition to hundreds of cubicle solutions and vanity stations to the changing villages. Center Parcs and Holder Mathias Architects specified brightly coloured bays of lockers to help guide guests through the areas of the changing villages.Original installations used traditional coin and key access for their lockers but all sites have now been fitted with Metra systems for keyless lockers. The smart-wristbands issued to Center Parcs guests at check-in works as both the key to their accommodation and their tool to assign lockers at the Sub-Tropical Swimming Paradises and Spas.Using smart locker allocation has the added bonus of allowing guests to locate their specific locker from hundreds on each site using a central display monitor and allows staff to clear locker allocations overnight for cleaning and ready for new guests in the morning.

Müller & Müller Denistry Practice, Rennerod GermanyInstaller: GeschwenderProduct: Geschwender Bespoke Furniture and DesksGeschwender designed and installed bespoke HPL furniture to their local dentist office in Rennerod.In addition to the backlit branded front desk Geschwender built custom dentistry cabinetry to the treatment room with a solid surface inset sink and dispensing hatches for gloves and tissue below the high-level cabinets. Specialist drawers and inserts were also made to securely hold tools.Using HPL for sanitaryware in a clinical environment means all the furniture can be cleaned regularly and thoroughly with almost any cleaning agents and suspended dispensers reduce touch points to reduce the risk of cross contamination.

Installer: LSA Projects Ltd and GeschwenderProduct: Geschwender Lockers and Metra Locking SystemLSA supplied almost 1000 lockers to Nottingham Emmanuel High School as part of a regeneration project in 2008. The lockers were commissioned by the school and designed by Geschwender to make the most of the space available in the curved concourse of the school.Lockers were also installed with Metra electronic locking, the school chose an RFID system which used the students existing ID cards to open their allocated locker when presented to the central access panel. Using existing cards meant that the school had minimal ongoing running costs as cards can be set-up and replaced by school staff without needing to order replacement keys or locks for students.Electronic locking also makes locker allocation and re-allocation easy and straightforward, master computers are managed by the school allowing remote access to lockers for changing user access settings and opening individual lockers without the key card if required.

Client: Pursuit CollectionInstaller: Geschwender GmbhProduct: Bespoke Cubicle Solution from GeschwenderOpened in 2021 Sky Lagoon in Kársnes Harbour, Kópavogur near Reykjavik in Iceland is a Geothermal Spa experience from luxury hospitality and attractions provider Pursuit. Pursuit Collection manage world-class attractions across the glove with facilities including wildlife safaris in National Parks and a growing collection of ‘FlyOver’ flight experiences in the United States, Canada, and Iceland.Sky Lagoon is a wellness retreat featuring their seven-step ritual experience including traditional sauna and steam room as well as the unique oceanfront geothermal infinity lagoon with unobstructed views of the ocean landscape.Geschwender supplied and installed a series of Bespoke Lockers and Changing Rooms to the spa. Sky Lagoon has both public and private changing facilities depending on the ritual package chosen each being carefully designed and installed by Geschwender in matching faux Oak laminates to reflect the natural ethos of the space. Lockers and private changing spaces are controlled using contactless electronic locking systems which are perfectly integrated into Geschwender fittings.

The hospitality industry has been hit hard by the pandemic as visitors, for obvious reasons, have been conspicuous by their absence. Hotel Savoy in Luleå took advantage of the situation by completely renovating the hotel’s restaurant with new surfaces, design and furnishings.The old brick wall in the interior of the restaurant had taken its toll. In order to find a new material that would fit in, they looked for a wooden panel that could also contribute to a better atmosphere in the form of an acoustic absorbing solution. But finding such a product that would also meet the fire requirements of the premises was not the easiest thing to do.We at Gustafs received the request at the same time as we were working on the development of our new product, Lamellow+. In short, the Lamellow panels delivered to the Hotel Savoy in Luleå became a pilot project for the product. The panels installed in the restaurant are made of American Oak wood veneer with a grey gypsum core and Wool grey acoustic felt – a combination that feels natural and minimises the contrasts in the product. The panel was also approved by the fire engineers working on the project, thanks to the natural fire protection provided by the reinforced fibreboard.

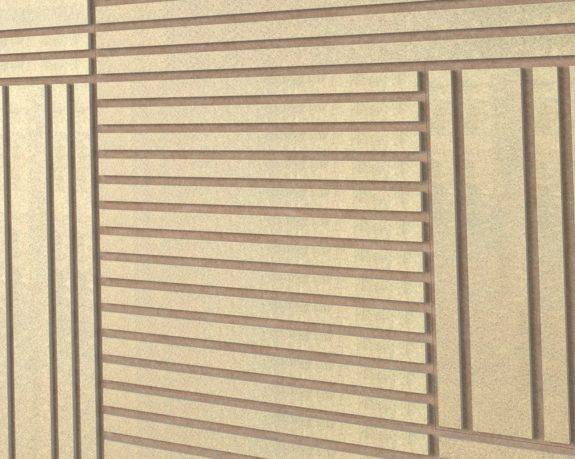

Lamellow+ PuzzleExplore new design possibilities with our latest Lamellow+ in design Puzzle. This collection features twelve unique models that offer limitless assembly possibilities, both horizontally and vertically. We are excited to unveil a new fresh aesthetic of genuine composite Cera ribs, paired with a new palette of vibrant felt colours inspired by the nature. The Cera ribs have a special matte finish coating for enhanced durability and ease of maintenance. Lamellow+ Puzzle is designed for effortless installation and meets all the requirements for public space utilization. Importantly, the fire safety of our Gustafs Lamellow+ is always inherent in its material makeup, eliminating the need for chemical treatments. This results in a solid fire classification of B-s1,d0 for the Lamellow+ panels.Lamellow+ Cera: PatternsPuzzle ConfigurationOur Puzzle design is now available in four distinct, irregular patterns and three sizes. Regardless of how the panels are combined, the gap between ribs is uniformly maintained, ensuring a cohesive look in any configuration.Lamellow+ Cera: Dimensions & SpacingCera CompositionCera sets a new standard for modern aesthetics, offering a genuine, solid composite material distinguished by its natural imperfections and enhanced by a protective matte coating. This choice reflects a commitment to both beauty and durability.Lamellow+ Cera: MaterialFelt Colour OptionsThe Gustafs Acoustex felt not only sounds beautiful but also serves as a robust foundation for the ribs. Choose from a broad spectrum of colours, from the subtle Wool Grey to natural tones such as Wet Sand and Old Clay, to perfectly complement your design vision.Lamellow+ Cera: Felt colours

Architect: BDPInstaller: Linear Projects LtdProduct: Gustafs Acoustic Panel System and Linear RibsGustafs Panel System was specified for the feature ceiling in the entry foyer as well as walls and ceilings in the lecture theatre at the University of Strathclyde Technology and Innovations building which opened in 2014.The £89 million campus will share facilities with local business, industry and public sector projects as well as being a leading research facility for Health, Energy and Environmental studies.Wall and ceiling panels in natural Oak veneer with SH8 slotted acoustic perforations were used on the atrium ceilings as well as the walls and ceilings of the lecture theatre. Gustafs Panel System was chosen to achieve a consistent look across wall and ceiling elements throughout the campus as well as for the flexibility of acoustic perforation styles and versatile Capax invisible installation systems.The Gustafs ceiling panels in both the foyer and lecture theatre of the Technology and Innovations centre at Strathclyde University were specified to be triangular, this design feature was approached differently for each area.The panels in the lecture theatre were cut and finished at the Gustafs factory to have finished edges on the finished triangles and a border of plain panel around the outside (completed using a special perforation pattern).In the foyer the panels were trimmed at the site finished with the white frames to give the illusion of triangular panels.In addition to Gustafs Panel System at the University, Linear Ribs were used across the vast atrium space along the mezzanine and balcony areas with varying widths of rib in Natural Oak VeneerLinear ribs were specified for its flexibility in design and installation, allowing the product to work continuously around the internal and external curves of the space.In addition to this, linear ribs enable the specifier to vary both the width and depth of each rib as well as the spaces between on a piece by piece basis giving infinite possibility for acoustic performance variations as well as value engineering.

Architect: Paul Murphy ArchitectsInstaller: TKS UK LtdProduct: Gustafs Linear Plank150m2 and 500 individual Walnut veneered planks were used inside the private hotel bedrooms and corridors at the RAF Club Squash Court Redevelopment in Piccadilly, London.Gustafs Linear Planks are a great compromise between the Gustafs Linear Rib and Panel systems for use in smaller installations with multiple small sections which do not lend themselves to the larger panel system. Planks use similar invisible fixing Capax profiles for quick and efficient installation and subtle closed butt joints across the plank area.The plank system at the RAF Club is made up of 100mm wide natural Walnut veneer wrapped planks installed to the feature wall sections in 12 hotel rooms as well as in the lift lobbies over 4 floors at the club in Piccadilly.

Inverness College, University of the Highlands and IslandsArchitect: BDP, GlasgowInstaller: DV McCollProduct: Shiluvit by Oranit and Gustafs Panel System1200m2 of Shiluvit panels in 7-501A formation and stained Yellow Pine were installed to ceilings in the main concourses at Inverness College at the University of the Highlands and Islands.The grand space combines bright blue oxidised copper cladding to the central column (which extends above the building itself) and timber cladding for a colourful and warm space.Staining Yellow Pine to look like Oak is a popular choice across Oranit installations, Pine is not only has a more defined grain than other timbers it also comes fully PEFC certified for sustainable wood sourcing and ethical management of the entire production chain of custody.In addition to the Oranit timber panels at the University, 460m2 of Gustafs Panel System were supplied for the Sports Hall and Performance Studio at the Campus. Panels in Gemini Oak veneer were used in the sports hall for consistency of colour and grain structure across the installation. Panels in plain white laminate were also installed in the hall to be used as whiteboards for classes and exams held in the space.

Project: Kingsgate Primary SchoolProduct: Shiluvit by Oranit in White Washed Nordic PineArchitect: Maccreanor LavingtonInstaller: Lacunar LtdKingsgate Primary School, London (2018) Photos by Michael Whitestone PhotographySpecification:
Shiluvit 7-501White Washed Nordic Pine
20 x 45mm Blades with 40mm Gaps
Quantity:
1300m2LSA Projects Ltd are delighted to share with you a new award winning Oranit installation at Kingsgate Primary School in London.The £18 million, 5000m2 school has created over 420 new primary school places at the purpose built facility which is comprised of two connected two storey teaching blocks with generous picture windows throughout for an abundance of natural light.The site also has ample external space including running tracks, a science garden, and covered playing spaces in addition to being part of a community development project linking the site to a neighbouring park developed from unused green space in the area.The saw-toothed roof and external appearance of school was designed to reflect its industrial past and the cool tone light brickwork and generous windows bring the design up-to-date with current trends and the requirements of a modern building.Inside the school there is a consistent airy and neutral palette with white walls and ceiling interspersed with pale wood feature walls and stairways in addition to the white washed Nordic Pine Shiluvit panels.Oranit Shiluvit panels were chosen in part for the ceilings of the spaces due to their impressive acoustic power; the configuration chosen which included LSA Black High Density Acoustic mineral wool achieves an overall rating of Class A for acoustic absorption making it perfect for ensuring minimal reverberation across the spaces helping to keep a calm atmosphere.Nordic Pine timber was chosen for its depth of texture as well as its PEFC Certification, the timber was then white washed for a clean and bright appearance.

Architect: Maestria Installer: Battistini Augustus LtdProduct: Durlum PolylamCompleted in 2016 the KitchenAid flagship store in Wigmore Street, London was the first Durlum project completed by LSA Projects.LSA supplied 160m2 (almost 1000 linear metres) of Durlum Polylam baffles in faux Oak Dur-Graphic print to the store.
