3 Knuckle Butt Hinge (HUKP-0102-04) - Single Axis Butt Hinges
Verified by manufacturer today
Certifire Certificate
Certificate type

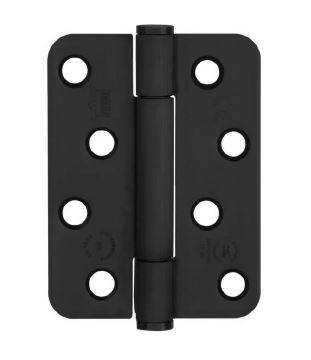

Mild steel triple knuckle butt hinge
Application
Suitable for up to maximum adjusted door weight 160 kg EN14.
Description
Mild steel triple knuckle butt hinge, fully concealed bearing with staggered hole pattern.
Features and benefits:
- Fully concealed triple knuckle butt hinge 102 x 76 mm.
- EN 14 maximum adjusted door weight 160 kg.
- Square and radiused corners available.
- Maintenance free, low friction design.
- Supplied with steel number 12 woodscrews.
General information
Color | Black Silver Bronze |
Finish | Polished Guidance for specification option: Steel. Satin Guidance for specification option: Steel. Matt Guidance for specification option: Black. Manufacturer guidanceOther finishes available to special order. |
Material | Steel |
Shape | Rectangle |
Length | 102 mm |
Width | 76 mm |
Height | 3 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/7 Single-axis door hinges P21/310 Single-axis door hinges |
Product range |
Specification data - Single axis door hinges
Standard | To BS EN 1935: 2002. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Test door mass | 7. |
Suitability for use on fire and smoke doors | 1.Guidance for specification option:
|
Corrosion resistance | 4. |
Security, burglar resistance | 0. |
Hinge grade | 14. |
Size | 76 x 102 x 3 mm. |
Material and finish | Mild steel. |
Colour | Polished steel.Satin steel.Matt blackLight bronze.Dark bronze.Hafele black. |
Integral accessories | Radiused corners.Intumescent hinge pads.Guidance for specification option: Packs available for ITT doors:
|
