Verified by manufacturer 6 days ago

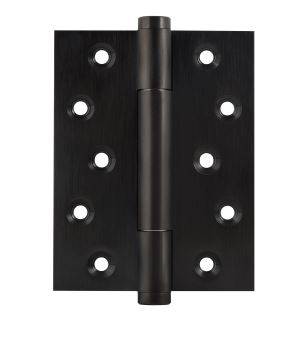

Brass concealed bearing butt hinge.
Suitable for maximum door weight of 160 kg.
Brass concealed bearing butt hinge 100 x 75 mm.
Features and benefits:
Color | Black Silver Gold Bronze Brown |
Finish | Matt Guidance for specification option: Black. Satin Guidance for specification option: Nickel and brass. Polished Guidance for specification option: Brass. |
Material | Brass Steel |
Shape | Rectangle |
Length | 5.5 mm |
Width | 75 mm |
Height | 100 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/7 Single-axis door hinges P21/310 Single-axis door hinges |
Product range |
Standard | To BS EN 1935: 2002 and BS 1634-1. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Test door mass | 7. |
Suitability for use on fire and smoke doors | 1.Guidance for specification option:
|
Corrosion resistance | 4.Guidance for specification option: Salt spray tested to over 1000 hours (PVD). |
Security, burglar resistance | 0. |
Hinge grade | 14. |
Form | Ball bearing butts. |
Size | 75 x 100 x 5.5 mm. |
Material and finish | Brass. |
Colour | Matt black PVD.Satin nickel.Satin brass.Light bronze.IBMA.Polished brass. |
