Application

Suitable for maximum door weight of 160 kg.


Description

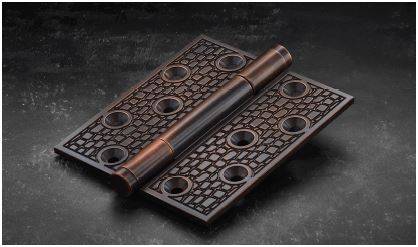

Brass concealed bearing gator butt hinge 100 x 75 mm.


Features and benefits:

  • Brass high performance decorative concealed bearing hinge.
  • Decorative gator design on hinge leaves.
  • Maximum load capacity 160 kg to EN Grade 14.
  • Maintenance free triple knuckle bearings.
  • Supplied complete with matching pozi/ slotted head woodscrews.

General information

Color

Grey

Silver

Gold

Black

Finish

Satin

Guidance for specification option:

Nickel and brass.

Matt

Guidance for specification option:

Black.

Polished

Guidance for specification option:

Chrome and brass.

Material

Brass

Steel

Shape

Rectangle

Length

100 mm

Width

75 mm

Height

3.5 mm

Warranty description

25 year

Uniclass

Pr_30_36_36_79 Single axis door hingesPrimary
Pr_30_36_36_09 Butt door hinges

CAWS

P21/7 Single-axis door hinges

P21/310 Single-axis door hinges

Product range

Hinges

Specification data - Single axis door hinges

Standard

To BS EN 1935.

Classification grades (minimum)

-

Category of use

4.

Durability

7.

Test door mass

7.

Suitability for use on fire and smoke doors

0.

Corrosion resistance

4.

Guidance for specification option:

Salt spray tested to over 240 hours.

Security, burglar resistance

0.

Hinge grade

14.

Form

Ball bearing butts.

Size

75 x 100 x 3.5 mm.

Material and finish

Brass.

Colour

IBMA.

Satin nickel.

Satin brass.

Matt black PVD.

Polished chrome.

Polished brass.
