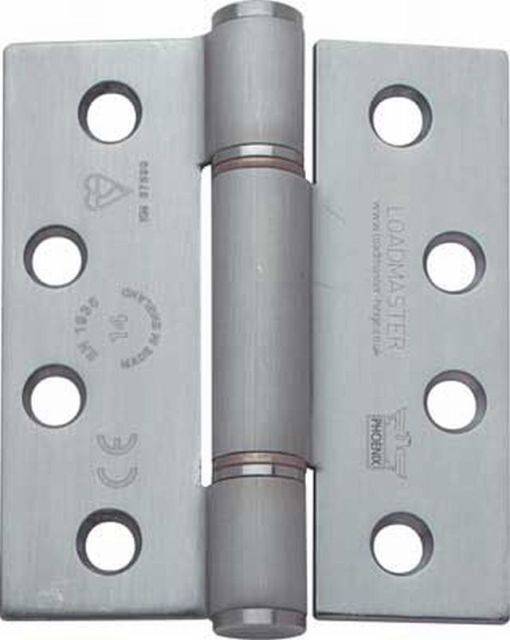

Stainless Steel Loadmaster Butt Hinges - Door hinge

Verified by manufacturer 6 days ago

Hafele UK Ltd

A range of stainless steel Loadmaster butt hinges that comply with BS EN 1935.

Jump to:
+44 (0)800 171 2907 Website

Application

Suitable to function as door hinges for residential, business and domestic doors.

Description

A range of stainless steel Loadmaster butt hinges.


Features and benefits:

  • ANSI pattern.
  • Minimum door thickness: 44 mm.
  • Maximum adjusted door weight: 160 kg.
  • Material: Grade 316 stainless steel.
  • BS EN 1935 grade 14.
  • CE marked.
  • High performance oilite bush bearings.
  • Salt water tested CP 240.
  • CE Conformant reference No. 1121.
  • Certifire approved.
  • Fixing screws included.

General information

Color

Silver

Finish

Satin

Polished

Material

Stainless steel

Shape

Rectangle

Length

102 mm

Width

89 mm

Height

3 mm

Warranty description

25 year

Uniclass

Pr_30_36_36_79 Single axis door hingesPrimary

CAWS

P21/7 Single-axis door hinges

P21/310 Single-axis door hinges

Specification data - Single axis door hinges

Standard

To BS EN 1935.

Product Reference

Stainless Steel Loadmaster Butt Hinges, ref: 926.91.120

Accessories

Hospa special fixing screws.

Guidance for specification option:

5 mm diameter.

Countersunk head with Pozidriv® cross slot.

Hydraulic damper unit.

Guidance for specification option:

Hydraulic damper unit.

  • Reference: 908.15.900.
  • Specifically designed to control the doors closing speed when used in conjunction with very heavy doors.
  • The stainless steel damper unit fits discretely into the hinge jamb and is fully adjustable.
  • Fixing screws included.
