432-A01-025

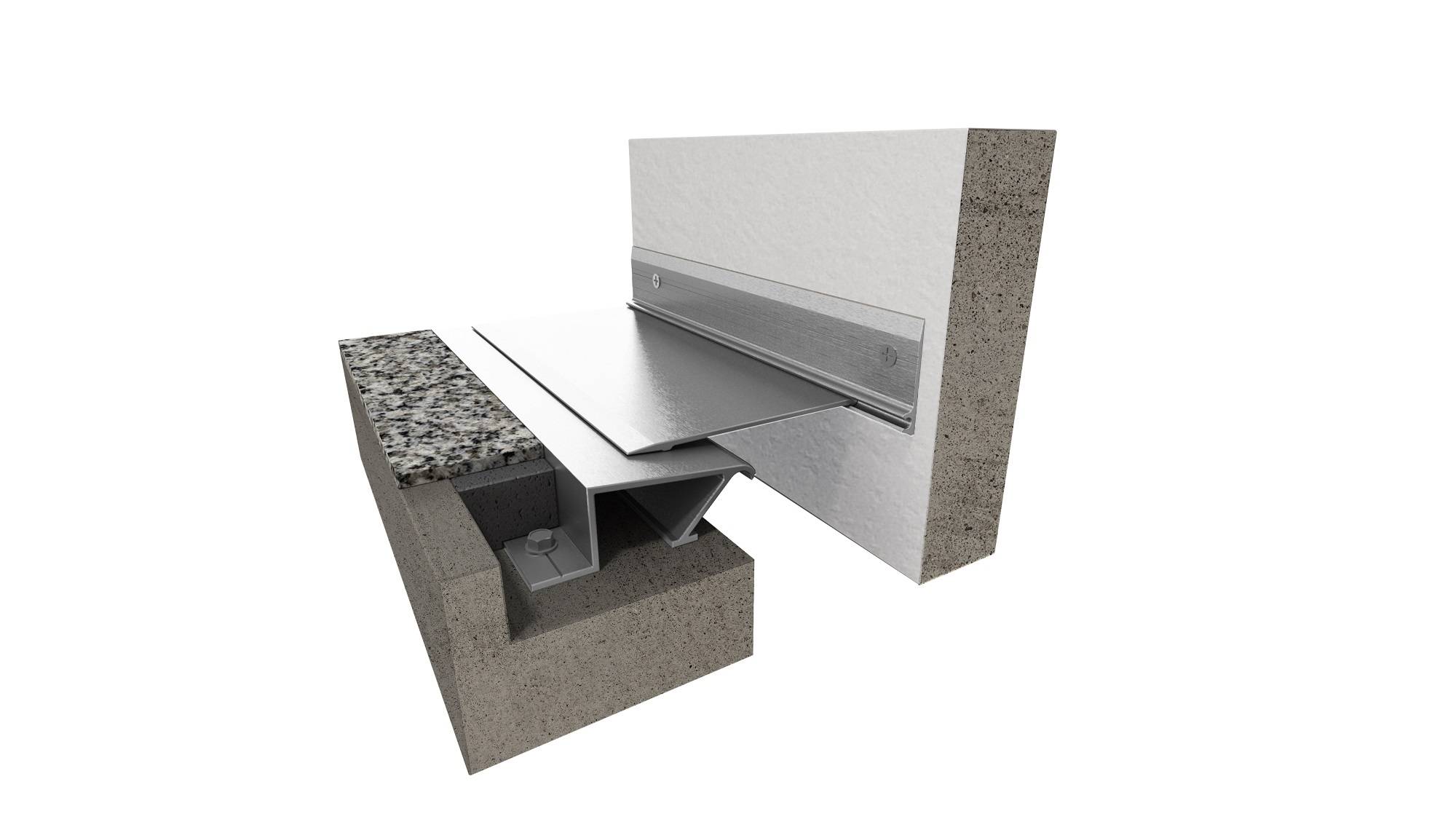

The 432 floor expansion joint cover accommodates horizontal, vertical and shear seismic movement.
Suitable for use with carpet, vinyl, ceramic tile and other floor finishes.
The 432 floor expansion joint cover accommodates horizontal, vertical and shear seismic movement. Ideal system for use with carpet, vinyl, ceramic tile and other floor finishes. The 432 is engineered with exposed hardware which provides simple accessibility for joint maintenance and inspection.
Features and benefits:
Key specs:
Finish | Aluminum |
Material | Aluminum |
Uniclass | |
CAWS | M41/465 Metal section movement joints M10/476 Metal section movement joints M40/835 Metal section movement joints M13/395 Metal section movement joints M40/80 Strip movement joints M10/460 Strip movement joints M41/445 Strip movement joints M13/375 Strip movement joints M40/825 Strip movement joints M41/445 Strip movement joints M12/440 Strip movement joints |
Joint width (nominal) | 25 mm.51 mm.76 mm.102 mm.153 mm.203 mm. |
Edging | |
Material | Aluminum. |
Joint | Floor to Floor. |
Platform | Compatible | Version |
---|---|---|
Revit 2017 | 1 |
