Verified by manufacturer 3 months ago
615-A07-050

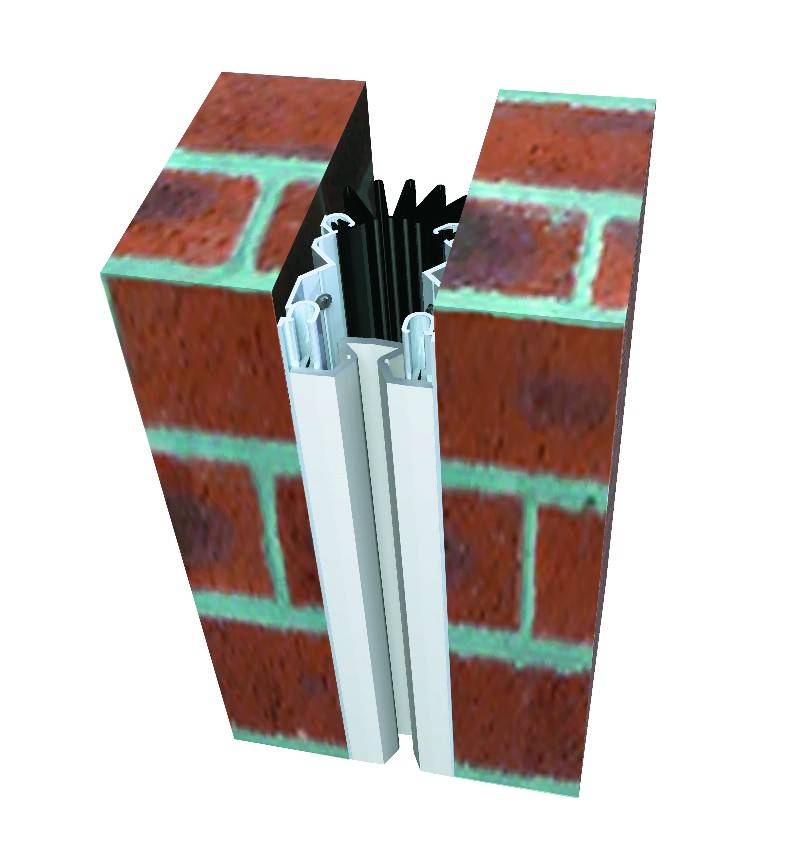

Flush mounted wall and ceiling movement joint system.
Flush mount expansion joint system suitable for interior and exterior applications.
The 615 Exterior Wall And Ceiling System is flush mounted to reduce sightlines. Additionally, the pleated seal comes in a variety of colours to blend into your wall material.
Features and benefits:
Shape | Manufacturer guidance"Hourglass" profile to ensure the seal holds straight lines and supports itself in a ceiling application |
Color | Black Beige Grey White Guidance for specification option: Off white and bright white available. Manufacturer guidanceCustom colours available upon request, consult manufacturer. |
Material | Aluminium Rubber Guidance for specification option: Synthetic. Manufacturer guidanceUL Greenguard Gold Certified Santoprene seal |
Warranty description | Five year Guidance for specification option: Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations. |
Uniclass | |
CAWS | J10/330 Movement joint system |
Joint width (nominal) | 51 mm. |
Edging | |
Material | Aluminium. |
Colour | Natural. |
Insert | |
Material | Synthetic rubber.Guidance for specification option: Santoprene®. |
Colour | Black.Beige.Grey.Off white.Bright white.Other.Guidance for specification option: Custom colours available upon request. |
Options | Not required. Fire mineral wool and sealant fire barrier system. Fire blanket system. |
Frame height | 61 mm. |
Sightline | 51 mm. |
Joint type | Ceiling to ceiling. Wall to wall. |
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Recyclability | 25% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 68 % |
Platform | Compatible | Version |
---|---|---|
- | 1 |
