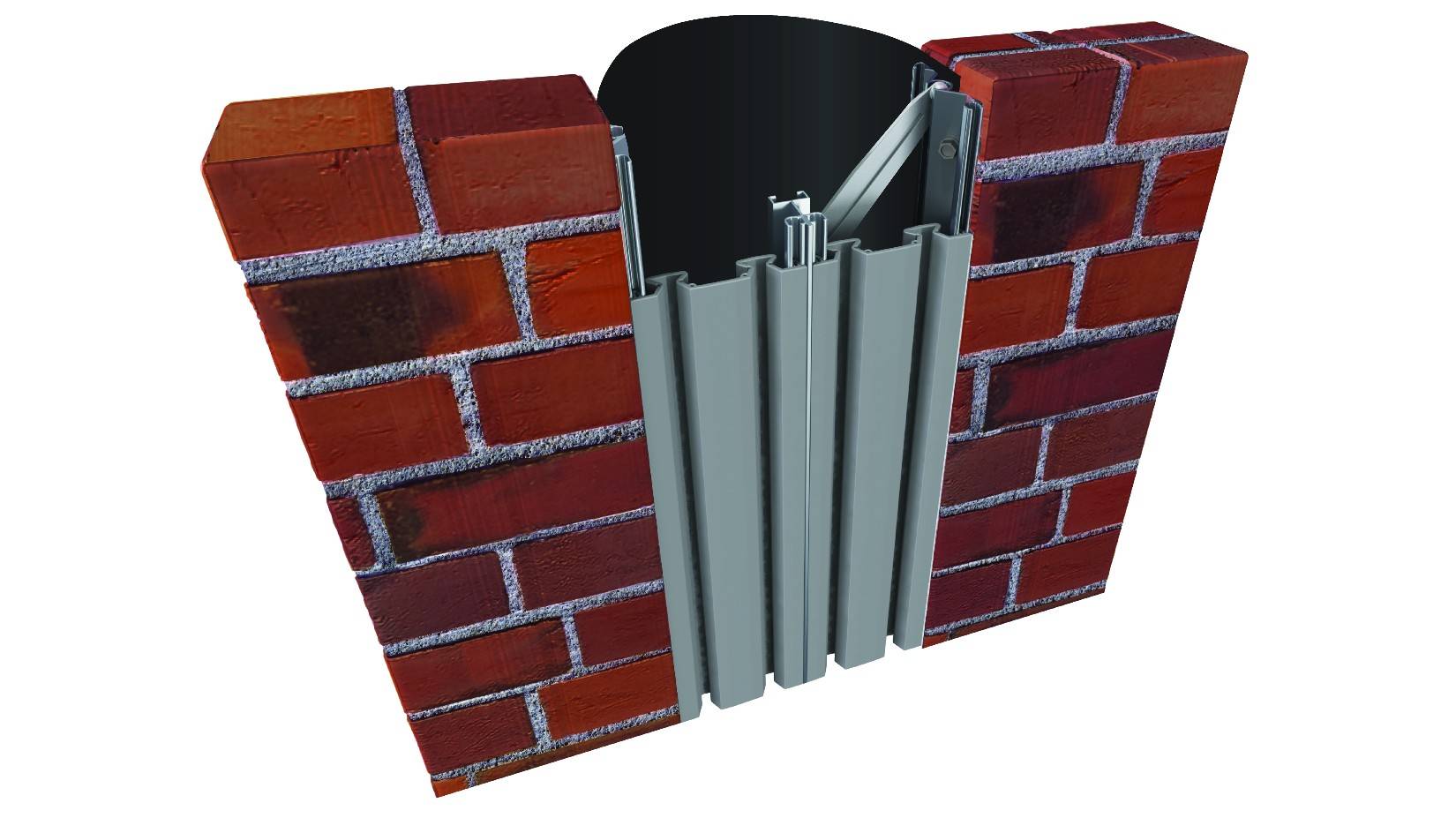

616 Flush Mount Expansion Joint System

Verified by manufacturer 3 months ago

616-A07-200

Inpro Variant:

The 616 flush mount expansion joint system can be used for interior and exterior applications.

Jump to:
07494249485 Website

Application

Flush mount expansion joint system suitable for interior and exterior applications.

Description

The 616 flush mount expansion joint system uses a thick seal to create crisp, clear lines and resist waviness.


Features and benefits:

  • Flush mount interior and exterior systems reduce sightline.
  • Santoprene® seals – field heat weldable for weather tight transitions.
  • Standard seal colours: black, beige, grey off white and bright white. Custom colours available upon request.
  • May be installed on various substrates with mechanical anchors or epoxy adhesive.

General information

Color

Black

Beige

Grey

White

Guidance for specification option:

Off white and bright white available.

Manufacturer guidance

Custom colours available on request, consult manufacturer.

Material

Aluminium

Rubber

Guidance for specification option:

Synthetic.

Manufacturer guidance

UL Greenguard Gold Certified Santoprene Rubber.

Warranty description

Five year

Guidance for specification option:

Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations.

Size

Guidance for specification option:

Available in a range of sizes.

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary
Pr_35_90_53_52 Metal movement joint edging angles

CAWS

Q21/470 Expansion joints

Specification data - Metal section movement joints

Joint width (nominal)

200 mm.

Edging

-

Material

Aluminium.

Colour

Natural.

Insert

-

Material

UL Greenguard Gold Certified Santoprene® rubber.

Colour

Black.

Beige.

Grey.

Off white.

Bright white.

Other.

Guidance for specification option:

Custom colours available on request.

Options

Not required.

Insulated vapour barrier.

Fire blanket system.

Frame height

75 mm.

Sightline

200 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Recyclability

25%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

68 %

BIM objects

Platform Compatible Version
Revit
-

1
