Acoustic Underlay - Isocheck Underwood system - Acoustic layer for under a timber floor

Verified by manufacturer 1 month ago

Isomass Ltd

Impact improvement of engineered timber floors. Acoustic underlay for timber floor finishes.

Jump to:
+44 (0)330 175 8228 Website

Application

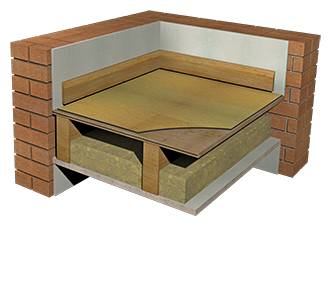

To be used over floorboards or concrete floors for conversions, refurbishments or listed buildings requiring minimal structural change.

Description

The Isocheck Underwood system is designed to be used under laminate and wood flooring. It is designed to provide resilience, durability and support to protect the floor covering against undue stress.

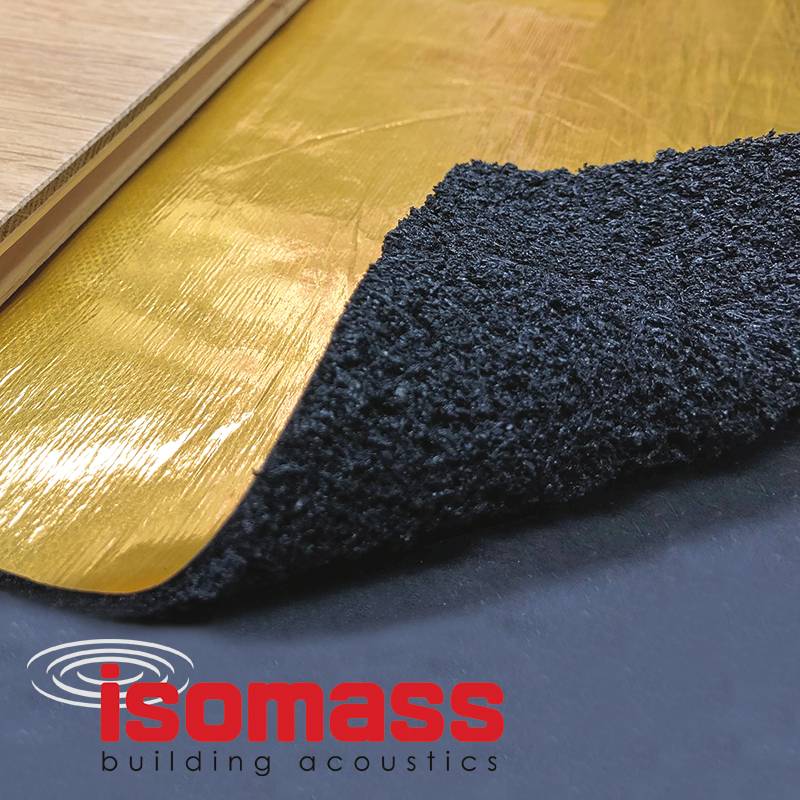

Isocheck Underwood is a lightweight, 3.5 mm thick layer of recycled rubber crumb (mainly vehicle tyres) bound together in a distinctive latex formulation. This high content of recycled raw materials ensures that the product has strong environmental credentials


Isocheck Underwood’s integrated metalised scrim ensures good resistance to moisture transmission thereby eliminating the need for an additional polythene sheet.

General information

Color

Black

Silver

Gold

Finish

Foil

Material

Rubber

Length

10000 mm

Width

1000 mm

Height

3.5 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K21/146 Laminate flooring

K21/145 Composite laminate flooring

K21/20 Composite laminated flooring

K21/111 Wood floating floor

K21/115 Wood laminate flooring

K21/10 Wood laminate flooring

Specification data - Resilient layer insulation

Material

Recycled rubber mat with integrated metalised scrim.

Guidance for specification option:

Recycled rubber crumb (mainly vehicle tyres) bound together in a latex formulation.

Thickness

3.5 mm.

Sound insulation rating

Up to 26 dB (ΔLw).

Guidance for specification option:

Isocheck Underwood will typically achieve up to 26dB ΔLw in laboratory conditions.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Not recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

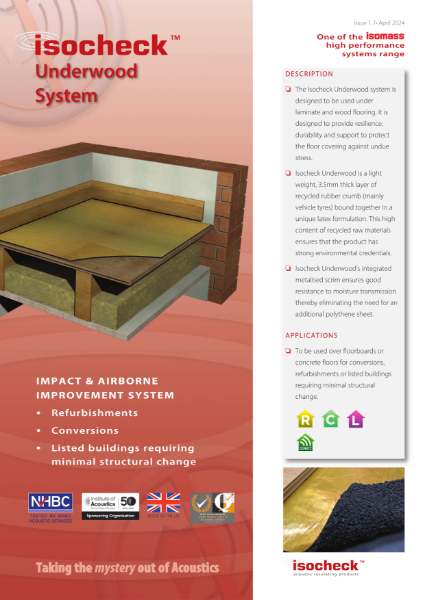

Isocheck Underwood - Data Sheet v1.7

Isocheck Underwood - Data Sheet v1.7

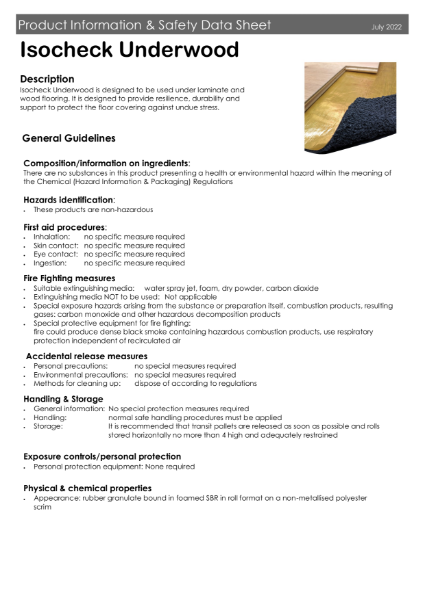

Isocheck Underwood - Safety Data Sheet

Isocheck Underwood - Safety Data Sheet
