Screedcheck XL6 System
Screedcheck XL6 System
Acoustic floor under screed systems for concrete floors.
Application
- Designed to be placed within a masonry structural floor directly below the screed.
- For concrete floors (XL6 and XL9) and beam and block floors (XL9).
- Suitable for new builds and conversions.
Description

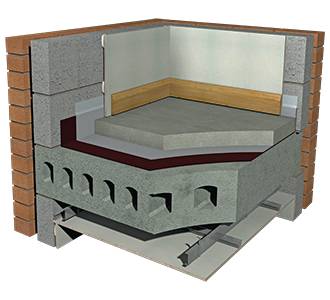

The Isocheck Screedcheck XL impact improvement systems are designed to be placed within a masonry structural floor directly below the screed, to isolate the screed from the structural subfloor.
The Isocheck Screedcheck XL6 system features a 6 mm closed cell cross-linked foam layer, whilst the Isocheck Screedcheck XL9 system features a 9 mm closed cell non cross-linked foam layer.
When installed correctly, the Screedcheck XL systems will enable compliance with Approved Document E 2003 and subsequent amendments in 2004, 2010, 2013 and 2015.
Features and benefits:
- Closed cells prevent water absorption which can impair acoustic performance.
- Rolls are light and easy to handle.
- All installations over 500 m² come with a free site pre-screed inspection.
General information
Color | Black White |
Finish | Smooth |
Material | Polyethylene Guidance for specification option: Isopoli, cross linked polyethylene foam. |
Length | 7500 mm 5000 mm |
Width | 1500 mm 1200 mm |
Height | 6 mm 9 mm |
Material | Polyethylene Guidance for specification option: Isopoli, cross linked polyethylene foam. |
Uniclass | |
CAWS | M10/40 Floating construction M10/295 Floating construction (thin sheet impact sound insulation) |
Specification data - Resilient layer insulation
Material | Closed Cell Cross Linked Isopoli. |
Density | Manufacturer's standard. |
Thickness | 6 mm. |
Sound insulation rating | 50 dB (DnT,w + Ctr); ≤45dB (L’ nT,w).Guidance for specification option: Based upon the typical construction (commonly 50dB+), consult manufacturer. |
Recycled content | Manufacturer's standard. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyethylene Guidance for specification option: Isopoli, cross linked polyethylene foam. |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

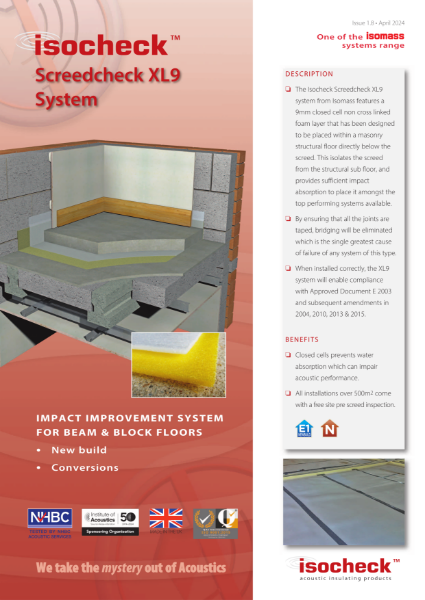

Isocheck Screedcheck XL9 (B&B) - Data Sheet v1.8

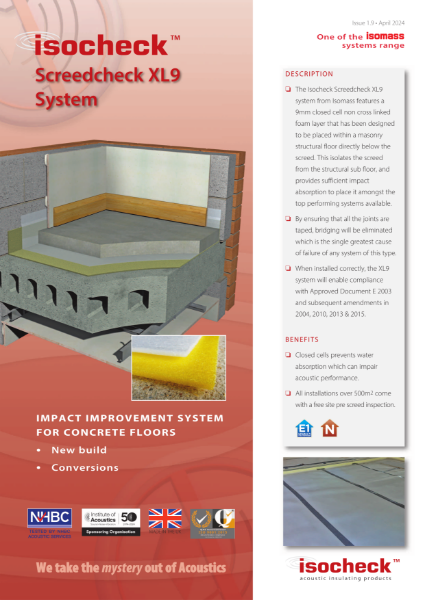

Isocheck Screedcheck XL9 (Concrete) - Data Sheet v1.9
Isocheck Screedcheck XL9 - Safety Data Sheet

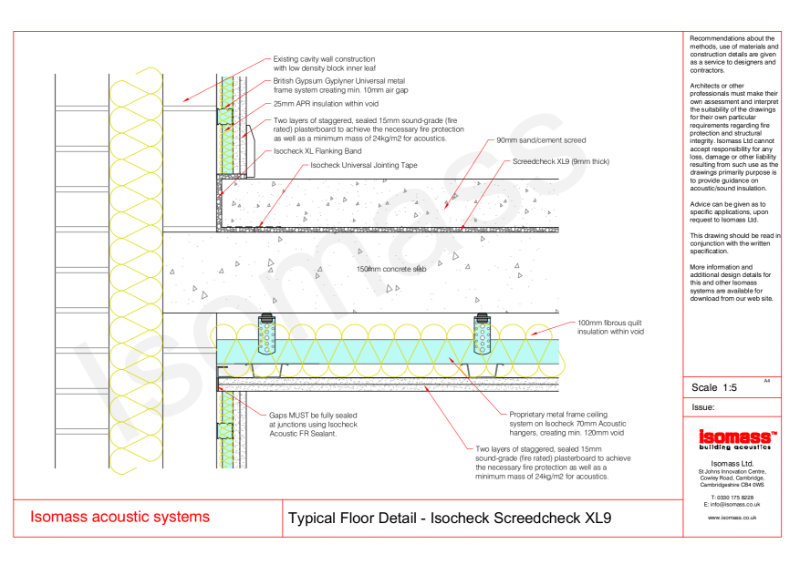

Typical Floor Detail - Isocheck Screedcheck XL9

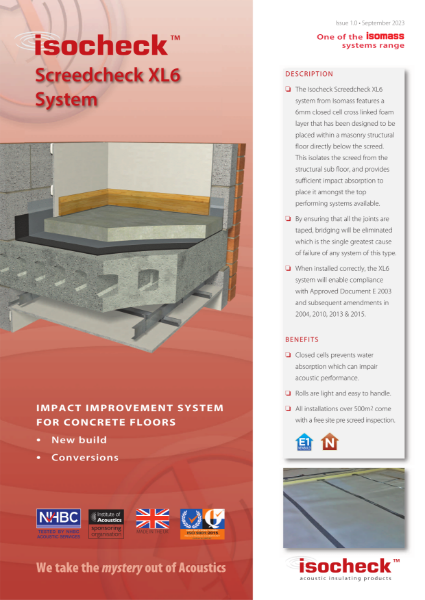

Isocheck Screedcheck XL6 - Data Sheet V1.1
