Acoustic Underscreed - Isocheck Re-Mat Base 3, 6 & 10 - Acoustic layer to go under a screed
Verified by manufacturer 2 months ago
Underscreed acoustic impact improvement systems to isolate a concrete or liquid screed.
Application
To be used on concrete, beam and block, hollow core, in-situ and all other types of concrete structural subfloors, for conversions, refurbishments or new build.
Description
The Isocheck Re-Mat Base 3, 6 and 10 under screed impact improvement systems are designed to reduce impact sound transmission through all types of structural concrete floors where a screed floor finish is also required.

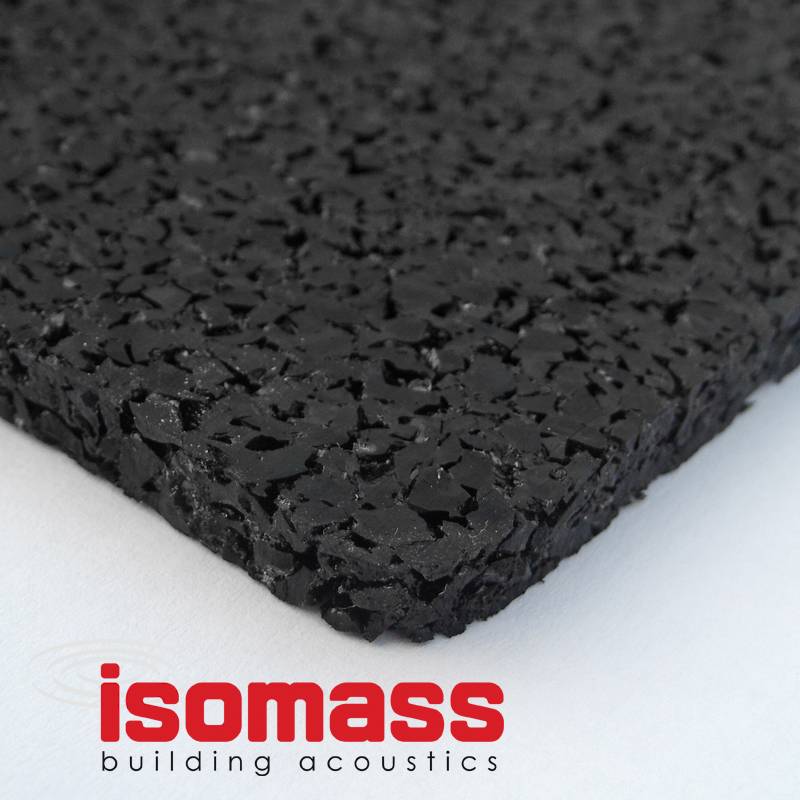

The Isocheck Re-Mat Base comprises a reconstituted bonded rubber layer that has been designed to be placed within a masonry structural floor directly below the screed, to isolate the screed from the structural subfloor.
By ensuring that all the joints are taped, bridging will be eliminated which is the single greatest cause of failure of any system of this type.
Features and benefits:
- Tested as a single 6 mm layer.
- Composition prevents water transmission which can impair acoustic performance.
- All installations over 250 m² come with a free site pre-screed inspection.
- Tested to BS EN 29052-1:1992 and satisfy the dynamic stiffness requirement with a figure of 10 MN/m³.
General information
Color | Black |
Finish | Manufacturer guidanceBonded granules. |
Material | Rubber Guidance for specification option: Bonded rubber fibres. Cork |
Length | 10000 mm |
Width | 1250 mm |
Height | 3 mm 6 mm 10 mm |
Uniclass | |
CAWS | M10/40 Floating construction M10/295 Floating construction (thin sheet impact sound insulation) |
Specification data - Resilient layer insulation
Material | Bonded rubber fibre mat. |
Density | 730 kg/m³ ±5%. |
Thickness | 6 mm.10 mm. |
Fire performance | To DIN 4102, B2. |
Sound insulation rating | 18 dB impact sound insulation.Guidance for specification option: Under UKAS laboratory tests, it was found to provide an impact improvement of 18 dB ΔLw when placed below a 65 mm sand/cement screed. |
Compressive strength (minimum) at 10% compression | To DIN 53421, 0.24 MPa, (E-Module) 2.9 MPa. |
ThermalConductivity | To DIN 52612, 0.14 W/mK. |
Sustainability data
Country of material origin | United Kingdom Manufacturer guidanceEU. |
Country of product manufacture | Germany |
Material | Rubber Guidance for specification option: Bonded rubber fibres. Cork |
Recyclability | 100 Manufacturer guidanceRecyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Manufacturer guidanceRecycled tyres. |
Literature
Isocheck ReMat Base 3, 6 & 10 - Safety Data Sheet

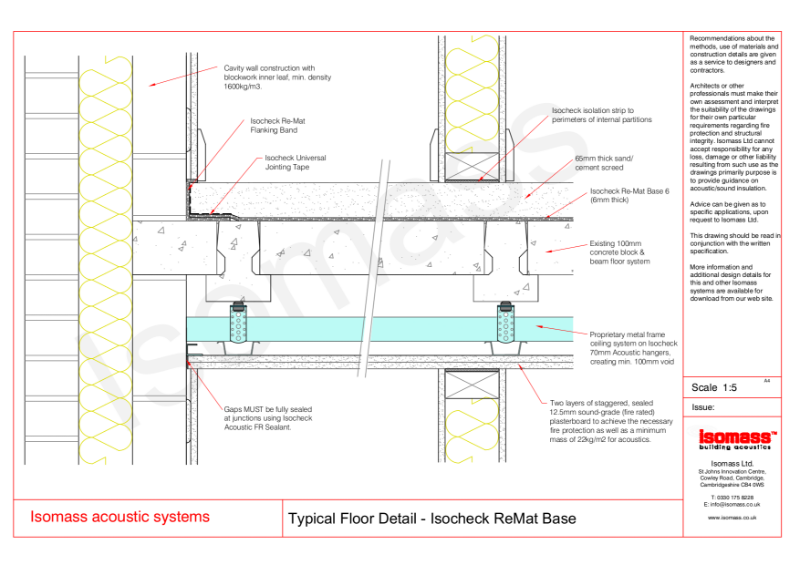

Typical Floor Detail - Isocheck ReMat Base
