AIRTRAK® IL Inline Ventilators - Roof Ventilation System

Name: AIRTRAK® IL Inline Ventilators - Roof Ventilation System
Brand: Nicholson STS Ltd
SKU: w7PtFufFKLVCHRD7Kq5DPj

Verified by manufacturer 5 days ago

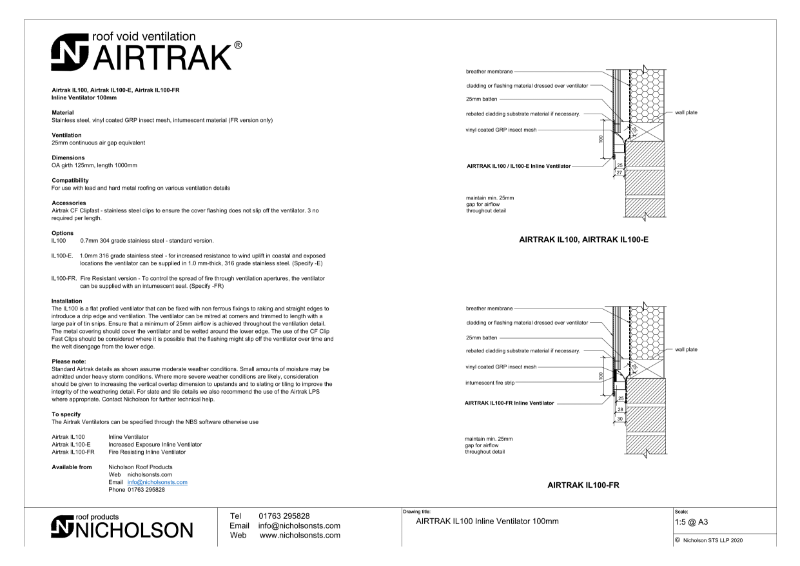

Airtrak IL100 Inline Ventilator

Nicholson STS Ltd

Third party certifications:

ISO 9001 Quality Management
Certificate type

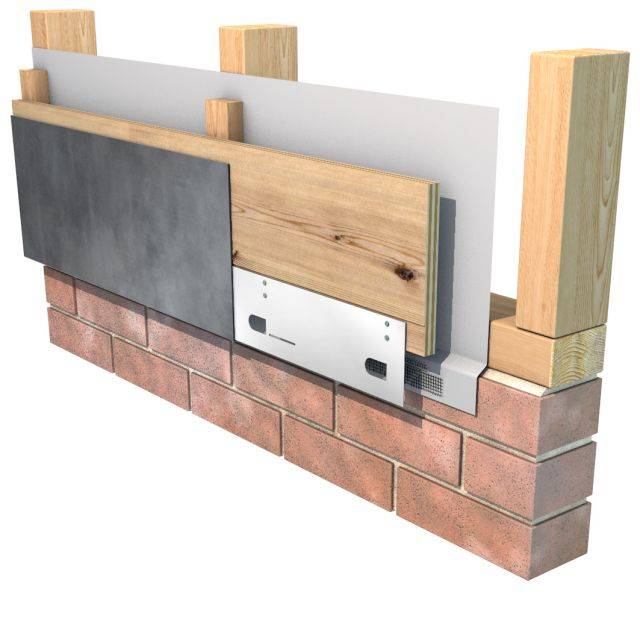

Inline ventilators for use at the foot or head of vertical or pitched cladding to provide a continuous airgap for ventilation.

Jump to:

+44 (0) 1763 295828 Website

Application

Suitable for use with lead and hard metal roofing for a range of ventilation details.
E Version: For increased resistance to both wind uplift in exposed locations and corrosion in coastal locations, the ventilator can be supplied in 1.0 mm-thick, 316 grade stainless steel. Where extreme weather conditions are likely, consideration should be given to providing more weathering cover to upstands and slating or tiling to improve the integrity of the detail.
FR Version: To reduce spread of fire through ventilation apertures, the ventilator can be supplied with an intumescent seal.

Note: Standard AIRTRAK® details assume moderate weather conditions. Small amounts of moisture may be admitted under heavy storm conditions. Where more severe weather conditions are likely, consideration should be given to increasing the vertical overlap dimension to upstands and to slating or tiling to improve the integrity of the weathering detail. For slate and tile details the manufacturer also recommends the use of the AIRTRAK® LPS where appropriate. Contact manufacturer for further technical help.

Description

Inline ventilators for use at the foot or head of vertical or pitched cladding to provide a continuous airgap for ventilation.

Features and benefits:

Inconspicuous profile provides effective ventilation whilst minimizing visual impact.
Can be formed to a curved substrate in the horizontal plane.

General information

Material	Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh.
Shape	Rectangle
Length	1000 mm
Width	100 mm 145 mm 180 mm Manufacturer guidance Overall girth.
Warranty description	Ten year

Uniclass	Pr_30_59_29_82 Strip ventilatorsPrimary
CAWS	H62/47 Eaves H65/355 Ventilated eaves – separated grilles/ trays P10/110 Eaves roof ventilators for existing roofs

Specification data - Strip ventilators

Ventilation opening	25 mm continuous ventilation aperture.
Colour	Stainless steel.

Airtrak CF ClipFast fixing clips	Not required. Airtrak CF ClipFast clips, stainless steel. Guidance for specification option: 70 x 60 mm, 0.6 mm thickness. Airtrak CF ClipFast clips, copper. Guidance for specification option: 70 x 60 mm, 0.5 mm thickness. Manufacturer guidance Fixing clip for securing lead flashings to the Airtrak ventilators to prevent flashing creep over time. Clips locate in the slots found in the lower edge of the ventilator; these slots are spaced at approximately 330 mm centres.
Grade	304.
Dimensions	1000 x 100 mm. Guidance for specification option: Unit length x overall girth. Downstand: 75 mm.
Type	Standard.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh.
Recyclability	Recyclable at end of life
Recycled content As defined in clause 7.8 of BS EN ISO 14021	50 %
Expected Life	30 year
