Anhydritec Gyvlon XTR Screed

Verified by manufacturer 4 months ago

Anhydritec Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    Certificate type

Free flowing screed for use in areas requiring a strong screed for high impact loading, C35-F7.

Jump to:
+44 (0)1925 428780 Website

Application

Suitable for both commercial and domestic buildings where higher than usual loadings are expected, prior to the application of final floor finishes.

Description

Calcium sulfate based screed for use where higher than usual loadings are expected. It is a blend of Gyvlon binder, special additives and selected aggregates mixed with clean potable water to produce a pumpable, self smoothing, flowing screed (manufactured to BS EN 13813).


It is designed to provide a smooth level surface in both commercial and domestic buildings where higher than usual loadings are expected, prior to the application of final floor finishes and is particularly suitable for application as a floating screed and use in conjunction with under floor heating systems (where higher loadings are expected, special attention should be paid to the loading characteristics of the insulation being specified).


With the addition of Faster Drying (FD) and Early to Cover (E2C®) technologies, the installation of floor covering is achieved twice as fast as standard screeds; allowing tiles and vinyls to be laid safely from 1.5% MC, speeding up installations.


Features and benefits:

  • Avoids the need for reinforcement.
  • Easily achieves SR2 finish as described in BS 8204.
  • Environmentally friendly - recycled content of 98%, VOC free, 100% recyclable.
  • Excellent thermal conductivity.
  • Extremely low shrinkage - does not curl and minimises the risk of cracking.
  • Increased productivity - Up to 200 m²/ hour.
  • Large bay sizes of up to 800 m² depending on application (heated floors 300 m²).
  • Minimal thermal expansion (0.012 mm/mK).
  • Non combustible (tested to BS 476-4).
  • Protein free - cannot harbour harmful bacteria.
  • Self compacting.
  • Self curing.
  • Significantly reduced thickness when compared to traditional sand/ cement screed.
  • Weight saving as a result of thinner section.
  • Can be walked on in 24-48 hours.
  • Can be force dried as early as 7 days after application.
  • Flow 240 mm (± 10 mm).


Primer:

Requires priming prior to application of adhesives; generally acrylic dispersion or water based epoxy.


Product Options:

Sub base:

Gyvlon screeds are suitable for application to most types of sub bases, demonstrating an excellent degree of dimensional stability (maximum shrinkage/ expansion on drying of 0.02%) when compared to traditional sand/ cement based screeds.

Thickness (minimum):

  • Bonded: 25 mm.
  • In contact with substrate: 30 mm.
  • Unbonded: 30 mm.
  • Floating commercial: 40 mm.
  • Floating domestic: 35 mm.
  • Underfloor heating: 25 mm (30 mm nominal) cover to pipes, heating elements.

Drying time:

  • Dries at a rate of 1 mm per day up to a screed depth of 40 mm in good drying conditions.
  • Can be walked on in 24-48 hours.
  • Can be loaded after 7 days.
  • Can be force dried as early as 7 days after application.

General information

Color

White

Finish

Smooth

Material

Calcium sulphate

Aggregate

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

70 year

Uniclass

Pr_35_31_06_71 Ready-mixed levelling and wearing screedsPrimary

CAWS

M13/20 Proprietary self-smoothing levelling screeds

M13/120 Proprietary self smoothing levelling screeds

Specification data - Ready-mixed levelling and wearing screeds

Standard

To BS EN 13813.

Binder type

Calcium sulfate.

Compressive strength

C35.

Guidance for specification option:

To BS EN 13813.

Flexural strength

F7.

Guidance for specification option:

To BS EN 13813.

Dry density

2000 kg/m³.

Density

2200 kg/m³ (wet).

pH

>10.

Colour

Off-white.

Loading capability

After 7 days.

Thermal expansion

0.012 mm/mK.

Guidance for specification option:

Minimal thermal expansion (0.012 mm/mK).


Screed thickness

-

Manufacturer guidance

Insert requirements:

  • 30 mm – unbonded.
  • 35 mm (domestic) – floating.
  • 40 mm (commercial) – floating.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Calcium sulphate

Aggregate

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.94 kg CO₂ eq/m²

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

98 %

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Gyvlon Eco Screed BBA

EPD

EPD

Gyvlon Binder EPD

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

Reaction to Fire Classification

Literature

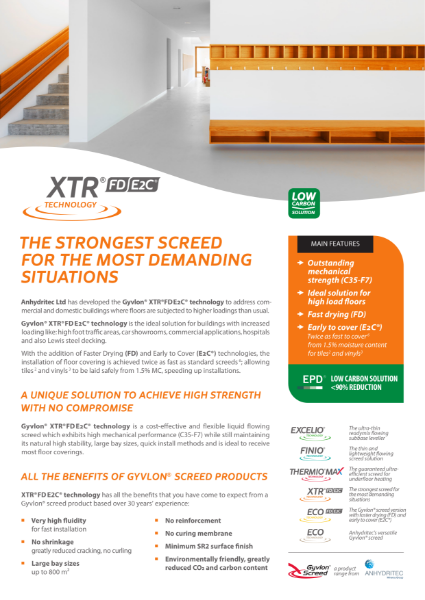

Gyvlon XTR FD E2C

Gyvlon XTR FD E2C
