Barbican® Barbed-Top A1 (SR1) Fencing

Verified by manufacturer 5 months ago

Jacksons Fencing Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

LPS 1175 certified vertical bar fencing with barbed pales.

Jump to:
0800 408 4757 Website

Application

Construction sites; medium-risk areas; commercial premises.

Description

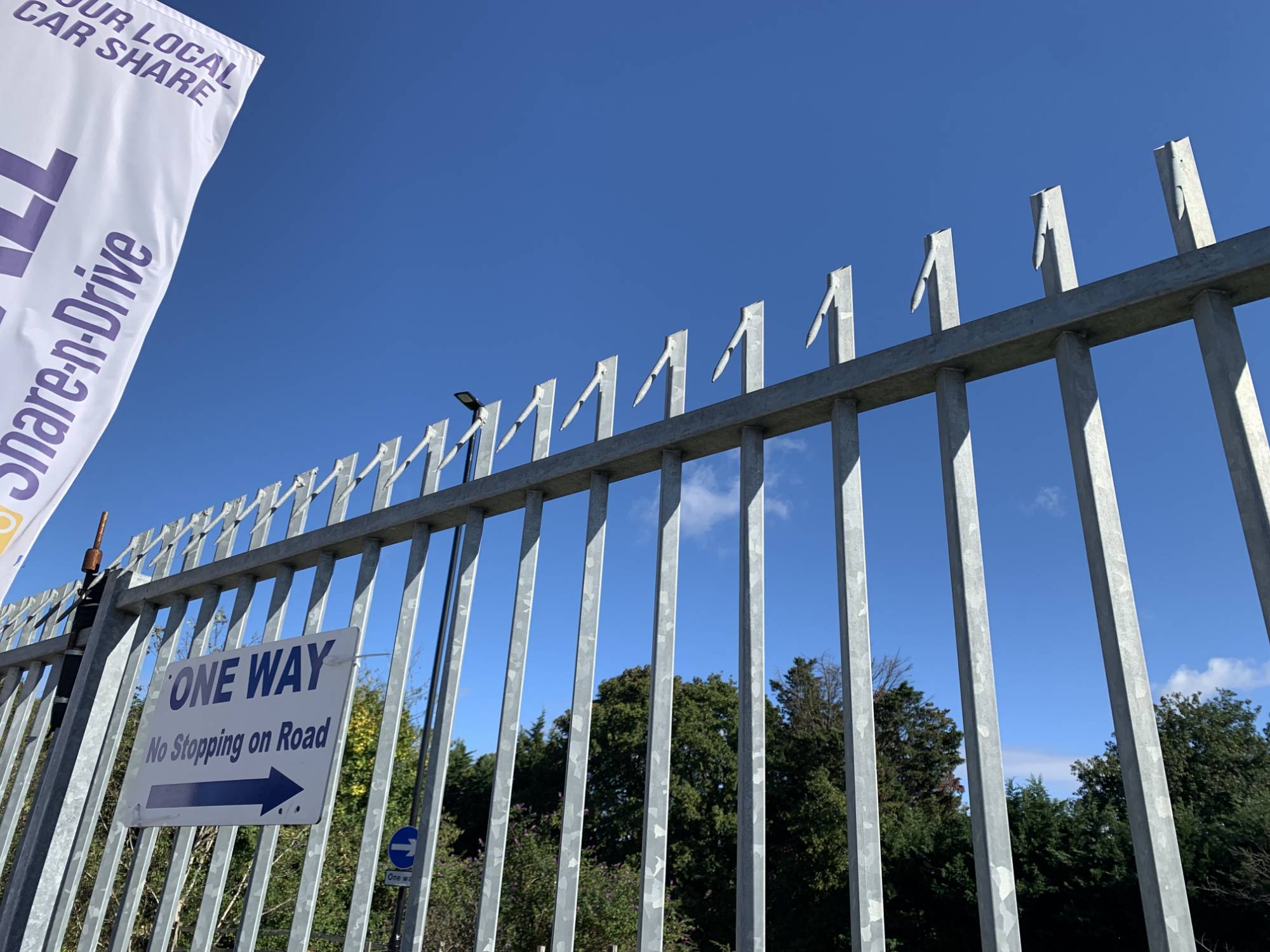

Security-rated vertical bar fencing with barbed top. The menacing barbs welded to the top of the pales provide an intimidating and highly effective physical barrier.


Features and benefits:

  • Anti-climb design.
  • Fully welded, pale-through-rail construction.
  • Built-in barbed top security topping.
  • LPS 1175 A1 (SR1)-certified.
  • Secured by Design-preferred specification.
  • Seamless, concealed rail-to-post fixing.
  • Provides high visibility for natural surveillance.
  • Can be stepped.
  • Matching SR1 gates are available (specified separately).
  • 25-year guarantee.

General information

Color

Black

Blue

Brown

Green

Grey

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Height

1800 mm

2000 mm

2500 mm

3000 mm

Warranty description

25 year

Guidance for specification option:

Jacksons' Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass

Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/340 Steel vertical bar fencing

Q40/40 Steel

Q40/430 Proprietary fencing

Product range

Vertical Bar Railings
LPS 1175 Certified Fencing

Specification data - Steel vertical bar fencing systems

Posts

Manufacturer's standard.

Guidance for specification option:

60 x 60 mm or 80 x 60 mm, dependent on height selected.

Rectangular, hollow section posts with anti-tamper fixings, with internal connectors and no visible bolts.

Post foundations

Set in concrete.

Guidance for specification option:

Standard.

Base-plated.

Guidance for specification option:

To bolt down onto concrete.

Cranked.

Rails

Horizontal rectangular hollow section (RHS) rails, 60 x 40 mm.

Guidance for specification option:

1800–2500 mm-high panels: two rails; 3000 mm-high panels: three rails.

Panels

Vertical RHS 25 x 25 mm pales, 1800 mm high.

Guidance for specification option:

Overall post length: 2500 mm; post centres: 3000 mm.

Vertical RHS 25 x 25 mm pales, 2000 mm high.

Guidance for specification option:

Overall post length: 2800 mm; post centres: 3000 mm.

Vertical RHS 25 x 25 mm pales, 2500 mm high.

Guidance for specification option:

Overall post length: 3300 mm; post centres: 3000 mm.

Vertical RHS 25 x 25 mm pales, 3000 mm high.

Guidance for specification option:

Overall post length: 3800 mm; post centres: 2484 mm.

Manufacturer guidance

Post centres dependent on height specified.

Pales are passed through the rails with standard spacing at 129 mm centres, which have a 10 mm, round pointed bar added to each pale.

Fence topping

Built-in 10 mm pointed bar on each pale.

System accessories

None.

Matching gates.

Guidance for specification option:

To be specified separately.

Worked finish

Hot-dip-galvanized.

Guidance for specification option:

Standard. To BS EN 1461.

Galvanized and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, other.

Guidance for specification option:

Special order, insert requirements (BS or RAL).

Marine coated.

Guidance for specification option:

For installations within 500 m of saltwater or an estuary.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

QA Certificate

QA Certificate

913h Loss Prevention Certification Board (LPCB): LPS 1175 - A1 (SR1)

QA Certificate

QA Certificate

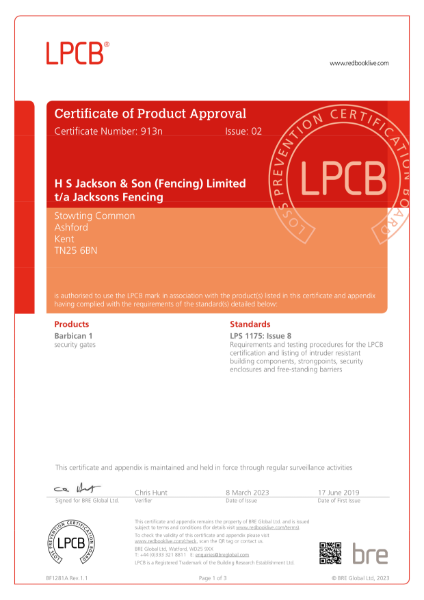

913n Loss Prevention Certification Board (LPCB): LPS 1175 A1

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
