Barbican Imperial® Residential Metal Railings

Verified by manufacturer 4 months ago

Jacksons Fencing Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Aesthetically pleasing metal railings with slender pales.

Jump to:
0800 408 4757 Website

Application

Residential projects; parks; schools.

Description

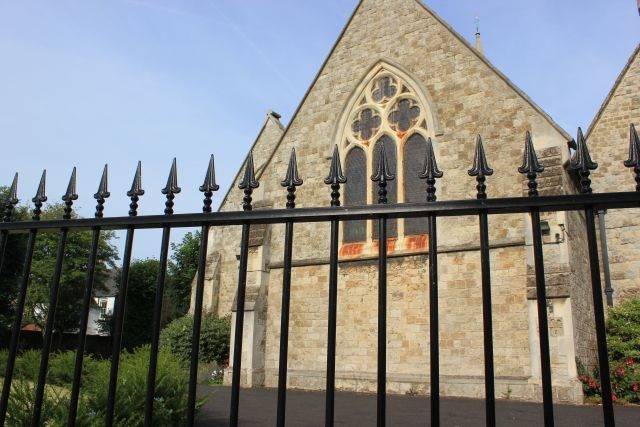

Decorative slender pale metal railings with optional finials to mimic traditional wrought iron railings, suitable for residential properties and to provide demarcation.


Features and benefits:

  • 119 mm pale pitch,19 mm pales
  • Flat top pales as standard; optional finials available.
  • Panels can be manufactured to accommodate sloping ground.
  • 25-year guarantee.
  • Welded pale-through-rail construction.
  • Correspond(s) to the generic component/material 'steel' in the BRE Global Guide online generic specification(s) 'Galvanised steel railings' which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
  • Matching single-leaf and double-leaf gates available (specified separately).

General information

Color

Black

Green

Other

Finish

Galvanized

Powder-coated

Material

Steel

Width

3000 mm

Height

1000 mm

1250 mm

Warranty description

25 year

Guidance for specification option:

Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass

Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/340 Steel vertical bar fencing

Q40/40 Steel

Q40/430 Proprietary fencing

Product range

Metal Railings

Specification data - Steel vertical bar fencing systems

Posts

60 x 60 mm.

Guidance for specification option:

Rectangular hollow section (RHS).

Post foundations

Set in concrete.

Guidance for specification option:

Standard.

Base-plated.

Guidance for specification option:

To bolt down onto concrete.

Cranked.

Rails

50 x 25 mm.

Guidance for specification option:

Rectangular hollow section (RHS).

Panels

19 mm pales welded through rails with 100 mm spacing, 1000 mm high.

Guidance for specification option:

Overall post length: 1600 mm; post centres: 3000 mm.

19 mm pales welded through rails with 100 mm spacing, 1250 mm high.

Guidance for specification option:

Overall post length: 1850 mm; post centres: 3000 mm.

Manufacturer guidance

Finish and colour specified separately below.

Fence topping

Flt top pales extend above top rail.

System accessories

None.

Finials.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Matching gates.

Guidance for specification option:

To be specified separately.

Finish/ Colour

Hot-dip-galvanized to BS EN 1461.

Guidance for specification option:

Standard.

Galvanized and powder-coated, Black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, Green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, other.

Guidance for specification option:

Special order, insert requirements (BS or RAL).

Marine coat.

Guidance for specification option:

For installations within 500 m of saltwater or an estuary.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
