Barbican Imperial® Fencing

Name: Barbican Imperial® Fencing
Brand: Jacksons Fencing
SKU: uxPAoDAmpJvhjUbN915d7d

Verified by manufacturer 4 months ago

1000 mm-high panels

Third party certifications:

Round pale metal security fencing suitable for light commercial and residential properties.

Jump to:

Application

Residential properties; commercial premises; schools

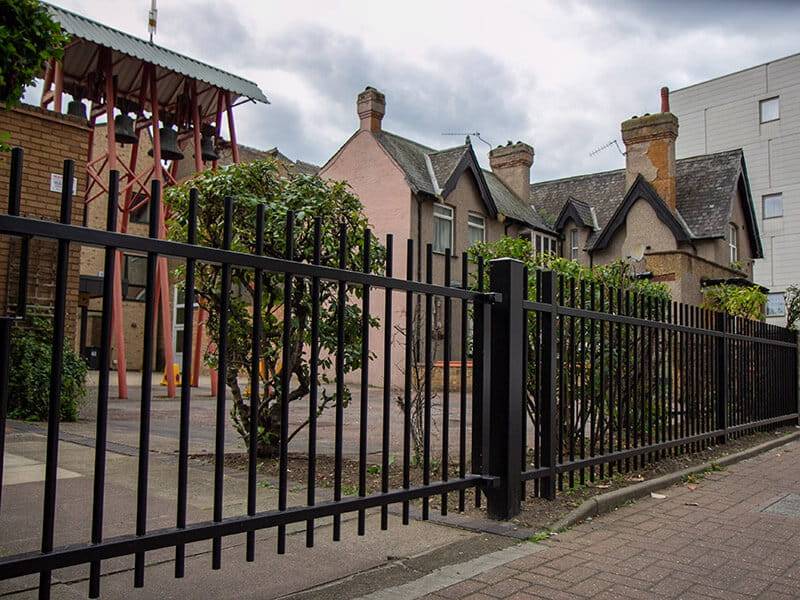

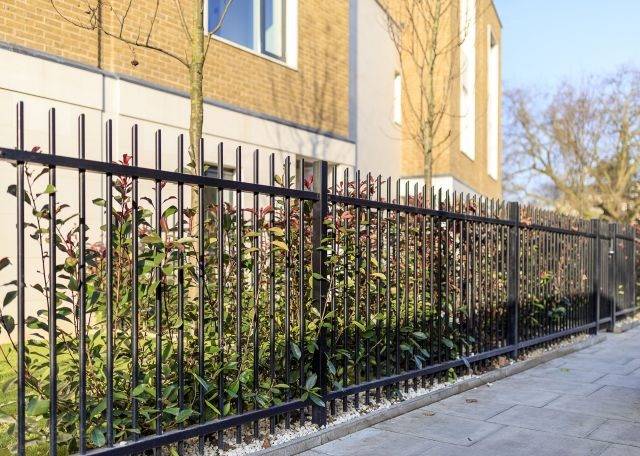

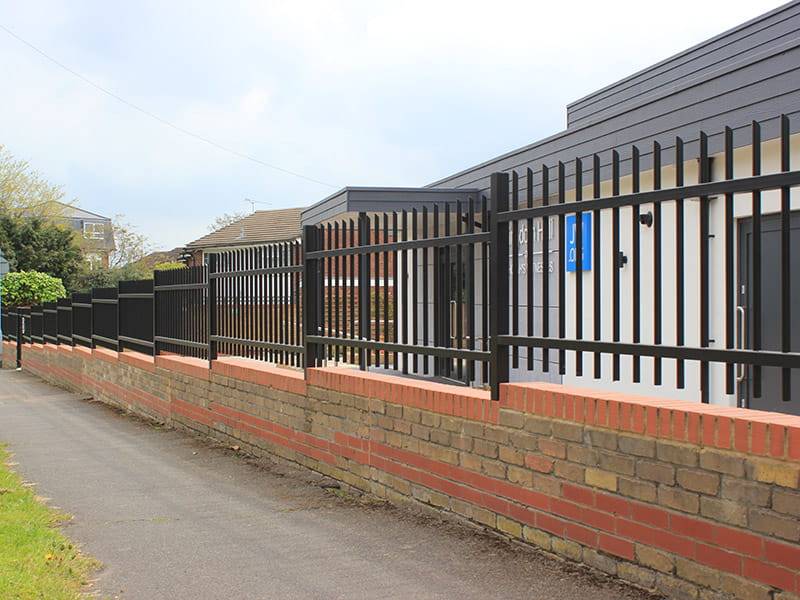

Round pale security fencing with welded pale-through-rail construction for providing security with a non-intimidating aesthetic.

Features and benefits:

Anti-climb design with a less intimidating appearance (25 and 32 mm-diameter round pales).
Vandal-proof panel to post connectors.
Welded pale-through-rail construction
Posts can be customized for barbed wire, razor wire or Rota Spike®.
Available with a choice of decorative finials and post tops.
Vertical pale spacing conforms to building regulations for anti-trap.
Can be manufactured to accommodate sloping ground.
Pales can be extended and set into concrete to protect against burrowing.
Correspond(s) to the generic component/material 'steel' in the BRE Global Guide online generic specification(s) 'Galvanised steel railings' which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
Matching single-leaf and double-leaf gates are available (specified separately).
25-year guarantee.

Color	Black Green Other Brown Yellow White Grey Red Blue Show more
Finish	Galvanized Powder-coated
Material	Steel
Width	3000 mm
Height	1000 mm 1250 mm 1500 mm 1800 mm 2000 mm 2500 mm 3000 mm Show more
Warranty description	25 year Guidance for specification option: Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/40 Steel Q40/430 Proprietary fencing

Product range	Vertical Bar Railings

Posts	Manufacturer's standard. Guidance for specification option: Overall post length: 1600 mm; post centres: 3000 mm. Rectangular hollow section (RHS) posts with anti-tamper fixings, with internal connectors and no visible bolts.
Post foundations	Set in concrete. Guidance for specification option: Standard. Base-plated. Guidance for specification option: To bolt down onto concrete. Cranked.
Rails	60 x 40 mm. Guidance for specification option: Two rails.
Panels	25 x 25 mm pales with 124 mm pale centres. Manufacturer guidance Finish/ colour specified separately.
Fence topping	Flat top. Manufacturer guidance Pales extended above top rail.
System accessories	None. Finials. Guidance for specification option: Consult manufacturer for options and insert requirements. Matching gates. Guidance for specification option: To be specified separately.

Finish/ Colour	Hot-dip-galvanized to BS EN 1461. Guidance for specification option: Standard. Galvanized and powder-coated, Black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, Green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order, insert requirements (BS or RAL). Marine coat. Guidance for specification option: For installations within 500 m of saltwater or an estuary.
