Barbican® Barbed Top Gates - Security gates
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type
Barbed top security gates.
Application
Commercial premises; medium-risk areas.
Description
Barbed top security gates to complement Barbican® Barbed Top fencing.
Features and benefits:
- Anti-climb design, matching Barbican® Barbed Top A1 (SR1) fencing (specified separately).
- Gates are available in heights from 2.25 to 3.0 m to prevent accidental injuries caused by contact with the protruding spikes.
- Built-in barbed top on each pale.
- Welded pale-through-rail construction.
General information
Color | Black Green Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 855 mm 2403 mm 2532 mm 3435 mm 3564 mm |
Height | 2250 mm 2500 mm 3000 mm |
Warranty description | 25 year Guidance for specification option: Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details. |
Uniclass | |
CAWS | Q40/40 Steel Q40/560 Steel Q40/570 Gates |
Product range |
Specification data - Carbon steel gates
Dimensions | |
Span | Manufacturer guidanceInsert requirements. |
Height | 2250 mm.2500 mm.2750 mm.3000 mm. |
Posts | Rectangular hollow section steel posts, set in concrete.Rectangular hollow section steel posts, base-plated. |
Gate leaves | Cantilevered sliding, single.Cantilevered sliding, double.Swing, single.Swing, double.Tracked sliding, single.Tracked sliding, double. |
Hardware | |
Hinges | Tamper-proof. |
Operating | Automatic, rear-mounted operator.Automatic, sliding gate operator.Automatic, underground operator.Manual. |
Finish as delivered | |
Applied finish | To match fencing.Hot-dip-galvanized to BS EN 1461.Guidance for specification option: Standard. Galvanized and powder-coated, Black RAL 9005.Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, Green RAL 6005.Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other.Guidance for specification option: Special order; insert requirements (BS or RAL). Marine coat.Guidance for specification option: For installation near seawater. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
Literature

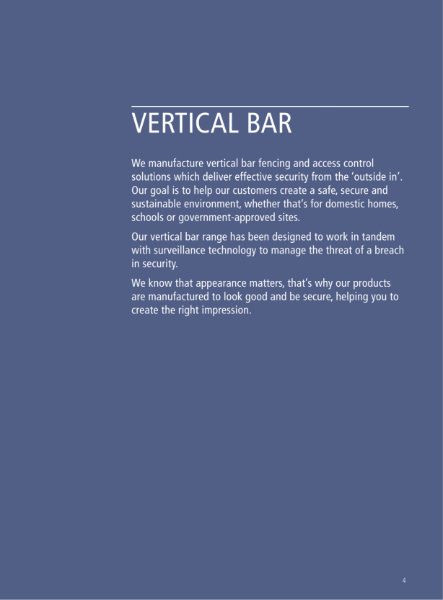

Vertical Bar Fencing
