LPS 1175 Vertical Bar Gates

Name: LPS 1175 Vertical Bar Gates
Brand: Jacksons Fencing
SKU: uMC79Vv17wBqzupEVV4Qpj

Verified by manufacturer 5 months ago

Barbican® A1 (SR1) Gates (Single Leaf)

Product certifications:

A range of LPS 1175-rated security gates.

Jump to:

Application

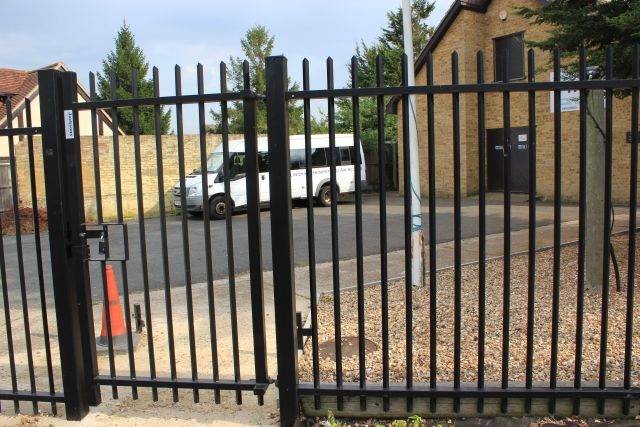

A range of security gates with vertical bar designs, LPS 1175 tested and certified.

Features and benefits:

Color	Black Green Other Guidance for specification option: Other colours available on request. Brown Blue White Yellow Grey Red Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Width	Bespoke Guidance for specification option: 500–6000 mm (single leaf); 1500–10000 mm (double leaf).
Height	Bespoke Guidance for specification option: 1800–3000 mm.
Warranty description	25 year Guidance for specification option: Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details,

Uniclass	Pr_30_59_34_14 Carbon steel gatesPrimary
CAWS	Q40/560 Steel gates and posts Q40/570 Proprietary gates and posts

Product range	Vertical Bar Gates LPS 1175 Certified Gates LPS 1175 Certified Fencing

Classification data
Dimensions	-
Span	- Manufacturer guidance 500–6000 mm. Insert requirements.
Height	- Manufacturer guidance 1800–3000 mm. Insert requirements.
Posts	Rectangular hollow section (RHS) steel posts.
Gate leaves	Single leaf.
Hardware	-
Hinges	180° opening, tamper proof.
Securing	Shrouded turn handle key lock.
Operating	Manual.
Finish as delivered	-
Applied finish	To match fencing. Hot-dip-galvanized to BS EN 1461. Guidance for specification option: Standard. Galvanized and powder-coated, Black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, Green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order; insert requirements (BS or RAL). Marine coat. Guidance for specification option: For installation near seawater.
Certification	LPS 1175 A1.
Infills	Pointed top. Flat top.
Accessories	Not required. Opening out with padlockable slide hatch. Opening out with key lock. Opening out with emergency exit push pad. Opening in with padlockable slide latch. Opening in with key lock.
