EuroGuard® Extra Gates
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type

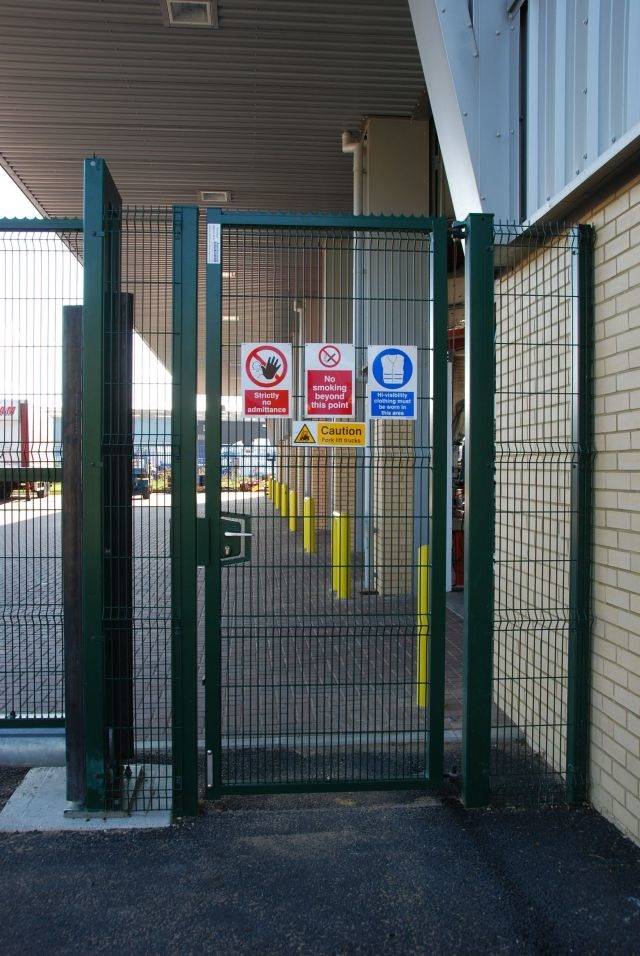

Gates for use with EuroGuard® Extra security fencing, available in swing, cantilever sliding and tracked in either automated or manual operation.
Application
Suitable for schools, transport or commercial properties.
Description
Gates for use with EuroGuard® Extra security fencing, available in swing, cantilever sliding and tracked in either automated or manual operation.
Features and benefits:
- Can be stepped to accommodate sloping ground.
- Extra-rigid 'V' mesh.
- Anti-climb.
- Vandal-proof.
- Zinc alloy coated.
- Matching fencing available.
- 25-year guarantee.
General information
Color | Black Blue Brown Green Grey |
Finish | Galvanized Powder-coated |
Material | Steel |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/40 Steel Q40/560 Steel Q40/570 Gates |
Product range |
Specification data - Carbon steel gates
Dimensions | |
Span | Manufacturer guidanceUp to 10 000 mm; insert requirements. |
Height | Manufacturer guidanceUp to 3000 mm; insert requirements or 'To match fencing.' |
Posts | 80 x 60 mm rectangle hollow section (RHS) with anti-tamper connectors.Guidance for specification option: Hot-dip galvanized to BS EN 1461. |
Gate leaves | Single leaf, cantilevered sliding.Single leaf, swing.Single leaf, tracked sliding.Double leaf, cantilevered sliding.Guidance for specification option: Drop bolts included. Double leaf, swing.Guidance for specification option: Drop bolts included. Double leaf, tracked sliding.Guidance for specification option: Drop bolts included. |
Hardware | |
Hinges | Tamper-proof. |
Securing | Key in lock, handles, stop. |
Operating | Automatic, rear mounted operator.Automatic, sliding gate operator.Automatic, underground operator.Manual. |
Finish as delivered | |
Applied finish | Galfan zinc alloy treated (mesh).Galvanized.Galvanized and powder coated, black RAL 9005.Guidance for specification option: To BS EN 13438. Galvanized and powder coated, green RAL 6005.Guidance for specification option: To BS EN 13438. Galvanized and powder coated, BS.Guidance for specification option: Special order, insert requirements. Galvanized and powder coated, RAL.Guidance for specification option: Special order, insert requirements. |
Control | Card systems. Ground loops. Hard-wired audio intercom. Hard-wired video intercom. Key fob. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
