EuroGuard® Flatform Gates

Name: EuroGuard® Flatform Gates
Brand: Jacksons Fencing
SKU: gDr2XtpUsAQ7GNcD1ap5G2

Verified by manufacturer 5 months ago

Gates for use with EuroGuard® Flatform mesh security fencing, available in swing, cantilever and tracked sliding, with automated or manual operation. Heavy and medium mesh gauge available.

Jump to:

0800 408 4757 Website

Application

Suitable for schools, sports and leisure and commercial sites.

Description

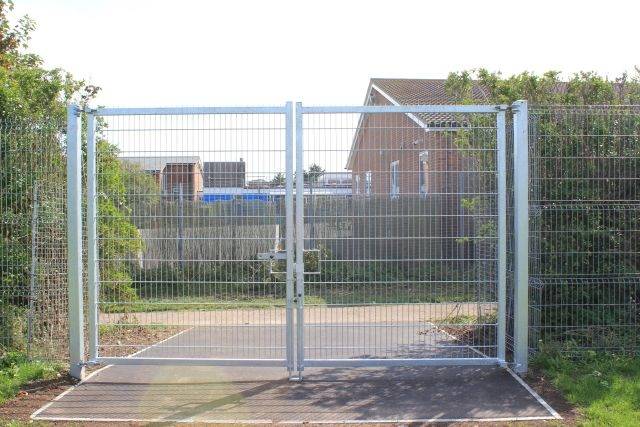

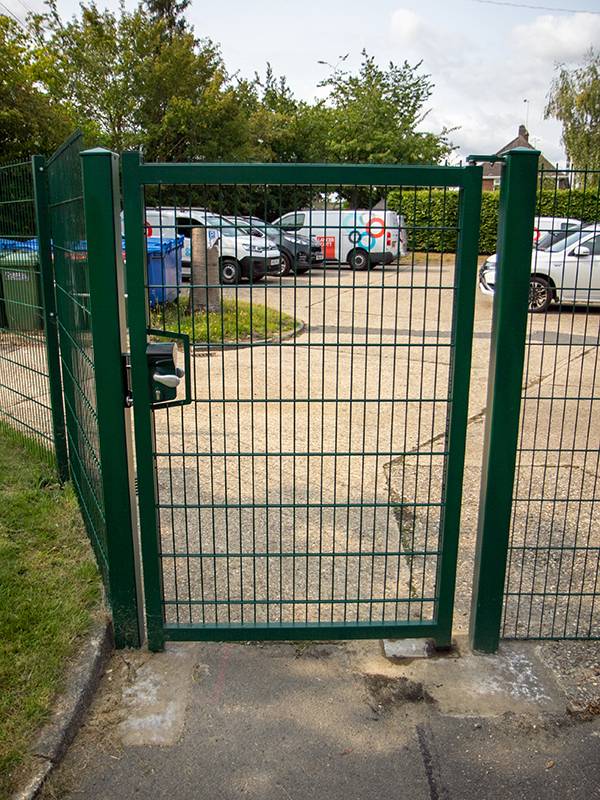

Flat profile twin wire welded mesh gates for use with EuroGuard® Flatform security fencing, available in swing, cantilever and tracked sliding in either automated or manual operation. Simple design with high visibility.

Features and benefits:

Anti-climb flat profile for increased security.
Vandal-proof fixings.
25-year service life guarantee.
Wire gauge measured before coating.
Twin horizontal wires for durability and strength.
Zinc alloy coated for increased protection against rust.
Double or single leaf.
Medium and heavy mesh gauge options available.

General information

Color	Black Blue Brown Green Grey Red White Yellow Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Width	Bespoke
Height	Bespoke
Warranty description	25 year

Uniclass	Pr_30_59_34_14 Carbon steel gatesPrimary
CAWS	Q40/40 Steel gates Q40/560 Steel gates and posts Q40/570 Proprietary gates and posts

Product range	Mesh Security Gates

Specification data - Carbon steel gates

Classification data
Dimensions	-
Span	- Manufacturer guidance Up to 10 000 mm; insert requirements.
Height	- Manufacturer guidance Up to 3000 mm; insert requirements.
Posts	Square section posts. Guidance for specification option: 100, 120, 150 or 250 mm, subject to size specified.
Gate leaves	Single leaf, cantilevered sliding. Guidance for specification option: Height to match fence, single or double leaf. Single leaf, swing. Guidance for specification option: Height to match fence, single or double leaf. Single leaf, tracked sliding. Guidance for specification option: Height to match fence, single or double leaf. Double leaf, cantilevered sliding. Guidance for specification option: Drop bolts included. Double leaf, swing. Double leaf, tracked sliding.
Hardware	-
Hinges	180° opening, tamper-proof.
Securing	Key in lock, handles, stop.
Operating	Automatic, rear mounted operator. Automatic, sliding gate operator. Automatic, underground operator. Manual.
Finish as delivered	-
Applied finish	Galfan zinc alloy treated (mesh). Galvanized. Galvanized and powder coated, Black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder coated, Green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder coated, BS. Guidance for specification option: Special order, insert requirements. Galvanized and powder coated, RAL. Guidance for specification option: Special order, insert requirements.
Control	Card systems. Ground loops. Hard-wired audio intercom. Hard-wired video intercom. Key fob. Key pad. Key switches. Photocells. Push button. Safety edges. Time clocks. Token reader. Traffic lights.
