CIM800 Contact Input Module With Cover

Verified by manufacturer 3 months ago

Johnson Controls Third party certifications:
  • Certificate of constancy of performance

    Certificate type

Contact input module.

Jump to:
BOS
Website

Application

Installation of modules into an ANC-8 ancillary housing The housing can accommodate up to eight ancillary PCBs. A stacking kit is available if a second layer of PCBs is required.

Description

The CIM800 Addressable Contact Input Module supervises two circuits of voltage-free contacts such as outputs from extinguishing systems, ventilation controls, fire door controls, sprinkler flow switches, non indicating detectors, etc. The LED illuminates when any input goes into alarm, and can also be programmed to blink when polled by the Tyco MX Control and Indicating Equipment

(CIE.). The CIM800 can be configured to supervise:

  • Two circuits of multiple normally-open contacts; with short circuit alarm.
  • Two circuits of multiple normally-closed contacts; open circuit alarm.
  • Two circuits with a single normally-open contact closing for alarm; with short circuit fault. This requires a resistor in series with the alarm contact and special programming at the MX4428 CIE.


On the MX4428, the two circuits are presented as a single

addressable point; either circuit in alarm puts the point into alarm, any circuit in fault puts the point into fault.


Features and benefits:

  • MX addressable module
  • Supervise two circuits
  • Supervise multiple contacts per circuit
  • Up to 250 devices per loop
  • ActivFire Listing afp-1446
  • FPANZ Listing VF/640.


The CIM800 is supplied as an open circuit board (PCB) with

mounting hardware and End of Line (EOL) resistors. It must be fitted in a suitable enclosure. It may be mounted on a gear plate using plastic standoffs, to an M520 Ancillary Cover and K2142 back box, or into the D800 Ancillary Housing. The K2142 mounting box provides a convenient surface mounting enclosure and the M520 Cover is designed to accommodate the CIM800.

The contacts supervised must be voltage free. Do not connect the two circuits of a CIM800 together or join with other MX module inputs. Unused inputs must be terminated with an EOL resistor.


The CIM-800 is supplied with a default (invalid) address of 255 and must be set to the correct loop address using the 850EMT or 801AP MX Service Tool and programming lead.

General information

Color

Green

Finish

Acrylic

Material

Plastic

Shape

Rectangle

Length

25 mm

Guidance for specification option:

Depth

Width

84 mm

Height

61 mm

Warranty description

Three year

Uniclass

Pr_75_80_30_28 Fire alarm input and output modulesPrimary

Specification data - Fire alarm input and output modules

Device type

Contact Input Module.

Mounting arrangement

M520 Ancillary Cover.

Voltage

20–40 Vdc.

Manufacturer guidance

Quiescent Current 275 μA.

Alarm State Current 2.8 mA.

Operating temperature

–25 to +70°C.

RelativeHumidity

10–95% (non condensing).

Accessories

517.035.010 K2142 Back Box.

557.201.401 D800 Ancillary Housing.

Sustainability data

Contains Red List materials

No

Country of material origin

Czechia

Country of product manufacture

Czechia

Material

Plastic

Manufacturing plant location

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

Third party certifications

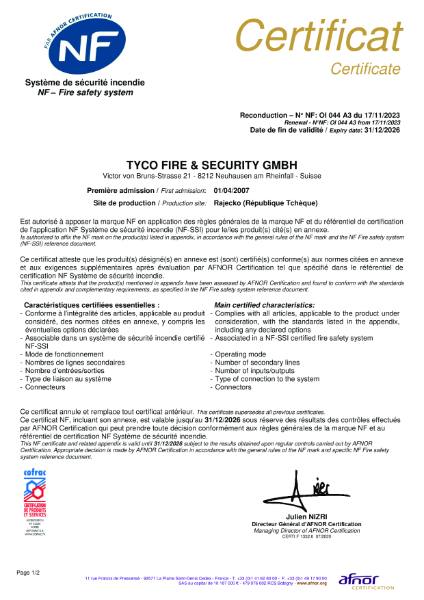

Certificate of constancy of performance

Certificate of constancy of performance

CIM800 CPR

Literature

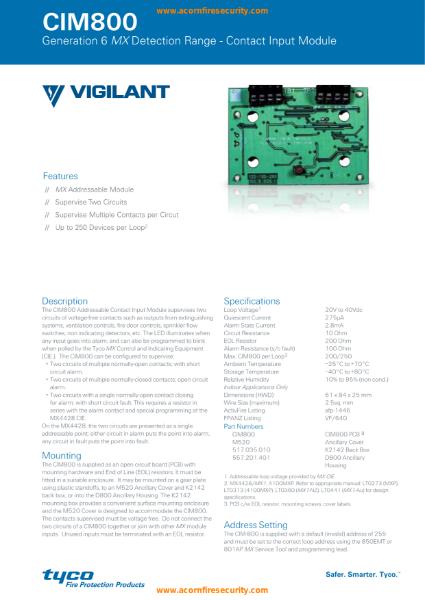

555.800.032 CIM800 Contact Input Module With Cover
