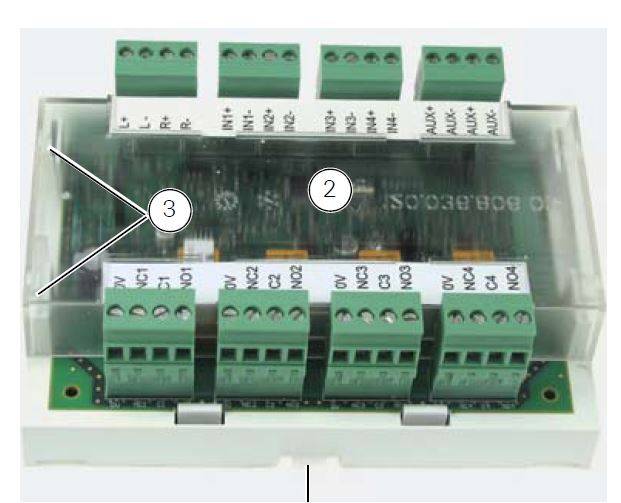

QIO850 Quad Input/ Output Module

The module provides four monitored inputs and four potential free relay changeover outputs.

The outputs are monitored with parallel contacts of

the relays. The outputs can be connected to an Auxiliary

Voltage source and its voltage can be monitored.

Additionally, all the outputs can be connected to the HVR800, for switching high power galvanic isolated

loads. For more details refer to the HVR800 documentation.

The module has an integral loop isolator. If this activates

a yellow LED illuminates. The activation remains in place until the short is removed.

The digital input monitoring and isolator functions

are both configurable.

Features and benefits:

Input Circuit:

• EOL terminator: nominal 3.3 Kilo Ohms
• Alarm resistor: nominal 0.68 Kilo Ohms
• Open and Short circuit detection can be set to:
• Maximum cable resistance: 50 Ohms
• Maximum cable length: 200 m (standard cable J-Y(ST)Y nx2x0.8)

Output Circuit (Relay Contact):

• Nominal switching capacity 2 A 30 VDC (resistive load)
• Maximum switching power 60 W, 125 VA (resistive load).

Auxiliary Voltage Input:

• Auxiliary voltage 24 VDC max 55 VDC (Threshold voltage for auxiliary voltage fault indication: 18 VDC ± 1 VDC)
• Auxiliary voltage 48 VDC max 55 VDC (Threshold voltage for auxiliary voltage fault indication: 36 VDC ± 2 VDC)
