IF800Ex MZX Digital Addressable Interface Module Assembly

Verified by manufacturer 3 months ago

Johnson Controls Third party certifications:
  • Certificate of constancy of performance

    Certificate type

Digital addressable interface module assembly.

Jump to:
BOS
Website

Description

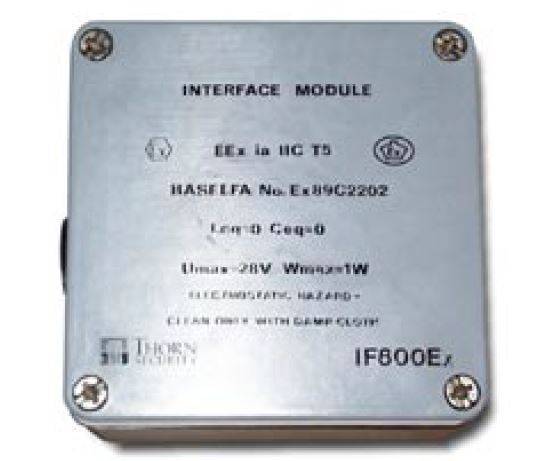

The Intrinsically Safe IF800Ex Addressable Interface Module is designed to monitor a clean contact from a “simple apparatus”, e.g., detector, switch, etc., in a hazardous area and communicate its status to compatible MX Control and Indicating Equipment (c.i.e.). The IF800Ex is self-contained in a grey compression-moulded glass-filled polyester box with 3 x 20 mm cable gland holes. The electronic components are mounted on a double sided printed circuit board (PCB) built into a potted module formed from a plastic moulding. Connectivity is via two terminal blocks fitted to the PCB. The remote LED output is not to be used.

The module can be configured to initiate an interrupt procedure in the event of an alarm condition.


The box is to be surface mounted.

General information

Color

Grey

Material

Polyester

Shape

Square

Length

95 mm

Guidance for specification option:

Depth

Width

122 mm

Height

120 mm

Uniclass

Pr_75_80_30_28 Fire alarm input and output modulesPrimary

Specification data - Fire alarm input and output modules

Third-party certification

ATEX certified: BAS01ATEX1394X. IECEX Certificate IECEx BAS 07.0063X.

Device type

Digital Addressable Interface Module Assembly.

Mounting arrangement

Surface.

Enclosure

-

Ingress protection (minimum)

IP 65.

Material

Compression-moulded glass-filled polyester box.

Colour

Grey.

Voltage

20–40 Vdc.

Guidance for specification option:

Quiescent Current 325 μA.

Operating temperature

–25 to +70°C.

RelativeHumidity

10–95% (non condensing).

Sustainability data

Material

Polyester

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

Third party certifications

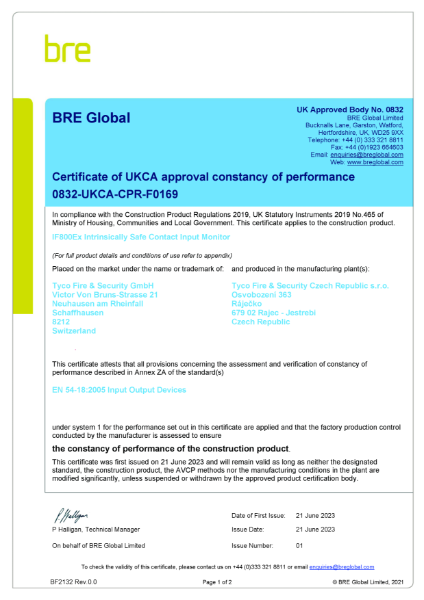

Certificate of constancy of performance

Certificate of constancy of performance

IF800Ex CPR
