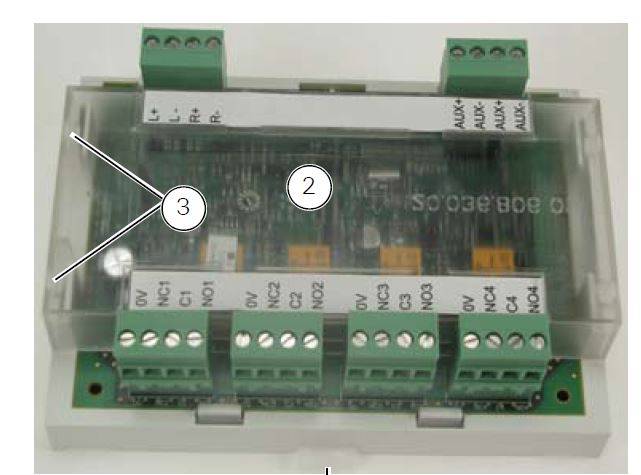

QRM850 Quad Relay Module
Verified by manufacturer 2 months ago
Certificate of constancy of performance
Certificate type
Quad relay module.
Application
Use only with MZX Fire Alarm Controllers. Indoor application only.
Description
The module provides four potential free relay changeover outputs. The outputs are monitored, with parallel contacts of the relays. The outputs can be connected to an Auxiliary Voltage source and its voltage can be monitored.
Additionally, all the outputs are configurable to the HVR (High Voltage Relay) mode, which allows you to connect up to four HVR800 modules for switching; for example 240 V loads galvanically isolated.
The module has an integral loop isolator. If this activates
a yellow LED illuminates. The activation remains in place until the short is removed.
Features and benefits:
Output Circuit (Relay Contact)
- Nominal switching capacity 2 A 30 VDC (resistive load)
- Maximum switching power 60 W, 125 VA (resistive load).
General information
Color | Clear |
Finish | Acrylic |
Material | Plastic |
Shape | Rectangle |
Length | 49 mm Guidance for specification option: Depth |
Width | 103 mm |
Height | 134 mm |
Warranty description | Three year |
Uniclass |
Specification data - Fire alarm input and output modules
Standards | To EN 54-17, EN 54-18 EN 50130-4 and EN 61000-6-3. |
Device type | Quad Input/ Output Module. |
Mounting arrangement | Back box surface mounted.DIN rail. |
Enclosure | |
Ingress protection (minimum) | 557.201.410 IP66 Housing for Quad I/O Modules. |
Colour | Clear. |
Operating temperature | –25 to +70°C. |
RelativeHumidity | Up to 95 % non condensing. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | Czechia |
Material | Plastic |
Manufacturing plant location | |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Certificate of constancy of performance
QRM850 CPR
Literature
555.800.073 QRM850 Quad Relay Module
