Classic Sliding Pocket Door System – Single Fire-Rated

Verified by manufacturer 6 months ago

Eclisse UK Third party certifications:
  • KIWA BDA

    KIWA BDA

    Certificate type

Top-hung, manually operated single sliding pocket door system for use with FD30 rated fire doors.

Jump to:
BOS
+44 (0)333 5770828 Website

Application

Suitable for use in downstairs toilets, utility rooms, bathrooms, en-suites, storerooms and pantries, walk-in wardrobes, and any room that requires the usable floor space to be maximized and FD30 fire rating.

Description

Top-hung, manually operated single sliding pocket door system for use with FD30 rated fire doors. Provides a larger passage width for standard UK approved 30-minute fire doors.


Features and benefits:

  • The door post, pocket and track assemble together and are inserted into the stud work as a complete unit which helps to ensure the door will run true and in line.
  • Door slides into the pocket in the wall.
  • Wide range of sizes to suit standard UK door sizes.
  • Door panels up to 100 kg (note: self-closing device maximum is 40 kg).
  • Suitable for use with 44 mm FD30 fire doors (not included, please see Field of Application Report PAR/10057/01 Revision E for list of suitable door panels).
  • System comes with specially designed jamb/ architrave kit made from a high-density slow burning hardwood.
  • Channels routed out in jambs to accept standard 15 x 4 mm graphite-based intumescent seals (supplied).
  • For use with 12.5 mm fireboard (not supplied).
  • Maintenance-free track and runners.
  • Fully adjustable front and rear door stops.
  • Self-centring floor guide with anti-warp profile.
  • Also available as a fire-rated double-door system; consult manufacturer for details.

General information

Material

Steel

Wood

Guidance for specification option:

Hardwood.

Shape

Rectangle

Warranty description

15 year

Guidance for specification option:

On the complete Eclisse steel pocket system and runners.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

L20/520 Sliding doors

L20/525 Sliding pocket doors

Specification data - Sliding door and partition sets

Performance

Fire resisting.

Arrangement

Single leaf top hung.

Track system

Manufacturer's standard.

Guidance for specification option:

Maintenance-free track and runners.

Runners are tested to 100 000 cycles.

Door leaves

-

Construction

-

Manufacturer guidance

Doors to be specified separately.

Operation

Manual.

Hardware

Not required.

Required.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Accessories

None.

ECLISSE BIAS®.

Guidance for specification option:

Soft close up to 40 kg door panel with anti-slam.

Self-closing mechanism.

Guidance for specification option:

The manufacturer advises checking with your Building Inspector to determine whether or not your particular application will require a self-closer. Maximum door panel weight: 40 kg.

Door

626 x 2040 mm.

Guidance for specification option:

Maximum passage size: 578 x 2010 mm.

Overall size: 1294 x 2120 mm.

726 x 2040 mm.

Guidance for specification option:

Maximum passage size: 678 x 2010 mm.

Overall size: 1494 x 2120 mm.

826 x 2040 mm.

Guidance for specification option:

Maximum passage size: 778 x 2010 mm.

Overall size: 1694 x 2120 mm.

926 x 2040 mm.

Guidance for specification option:

Maximum passage size: 878 x 2010 mm.

Overall size: 1894 x 2120 mm.

610 x 1981 mm.

Guidance for specification option:

2' 0" x 6' 6".

Maximum passage size: 563 x 1951 mm.

Overall size: 1279 x 2061 mm.

Show more

Manufacturer guidance

Bespoke sizes available on request. Suitable for use with 44 mm FD30 doors only.

Finished wall thickness

100 mm.

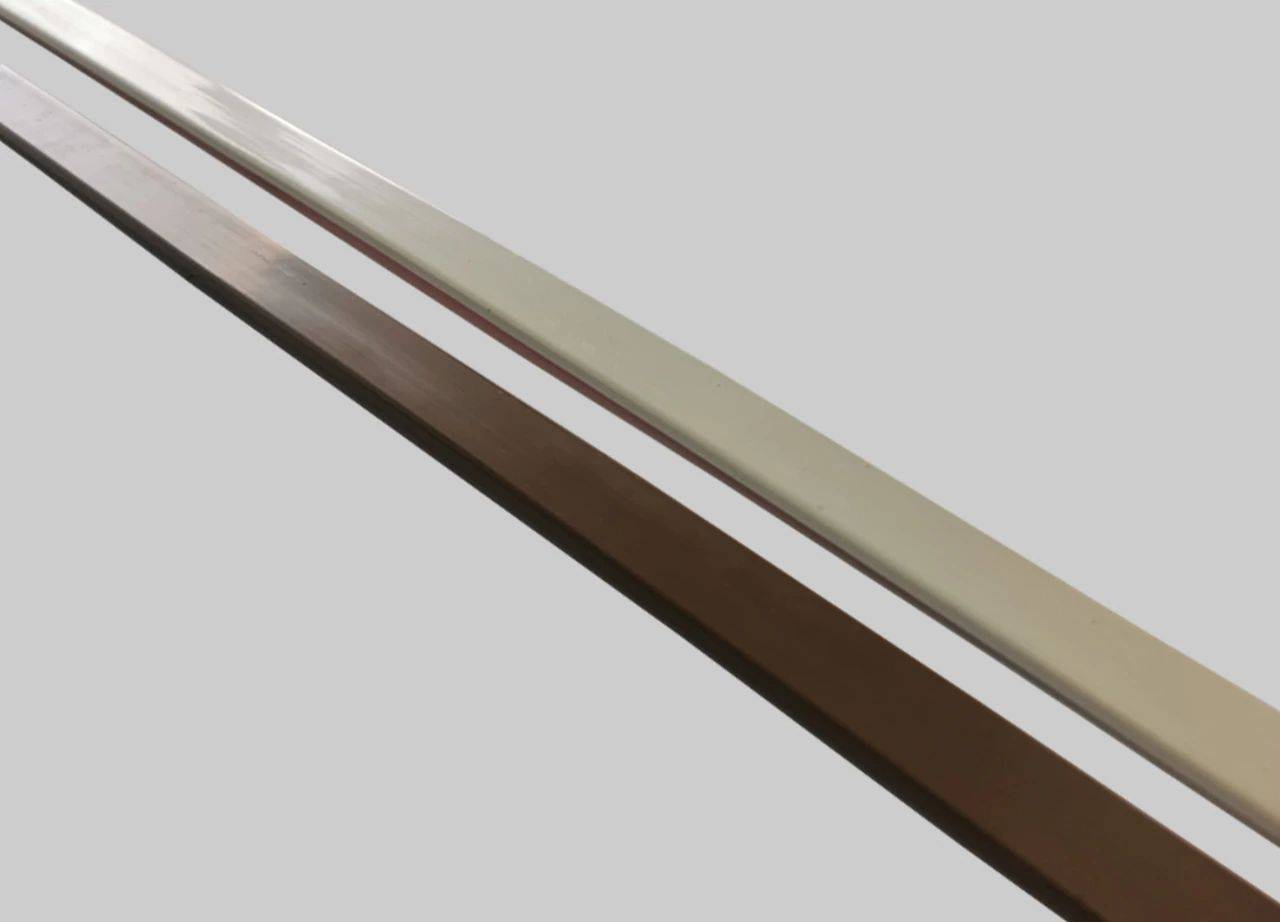

Intumescent seals

Brown.

White.

Wall jamb

75 mm complete with jamb/architrave kit made from a high-density hardwood.

Guidance for specification option:

100 mm finished wall thickness.

Third-party certification

Fully tested and approved by International Fire Consultants PAR/10057/01 Revision E.

Guidance for specification option:

The system was tested to BS EN 1634-1:2008 for fire resistance at Cambridge Fire Research which is an independent UKAS accredited testing laboratory.

Installation

Frame should be installed at finished floor level. Consult manufacturer for detailed installation instructions and details of the inbuilt 8 mm height tolerance. FD30 door and fireboard not supplied.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

85%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Guidance for specification option:

Aluminium: 56%.

Steel: 20%.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

KIWA BDA

KIWA BDA

Kiwa Fire Safety Compliance Report PAR/10057/1 Revision F
