Sliding Door Kit
Verified by manufacturer 3 months ago

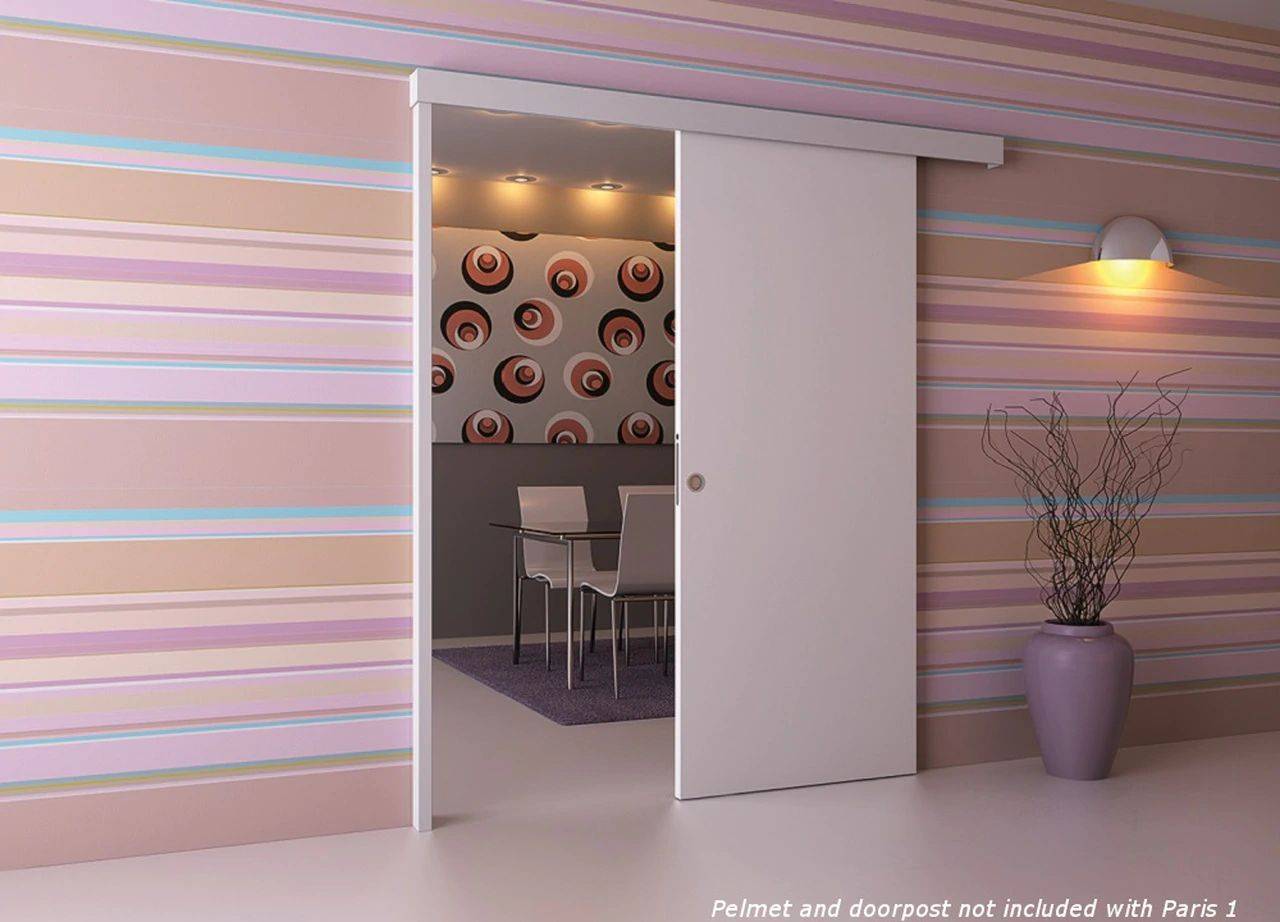

Wall mounted sliding door kit.
Application
Where sliding doors are required but sliding pocket door cannot be specified.
Description
Wall mounted sliding door kit.
Features and benefits:
- In situations where it is impossible to specify a pocket sliding door, the Eclisse Paris surface-mounted sliding door can be used.
- Uses a traditional sliding system brought up-to-date with design specific door posts, pelmets and track holders for a professional finish.
- Can carry a door of maximum 60 kg subject to substrate.
Paris 1:
- Anodized aluminium 2000 mm-long track and running gear.
- Adjustable door stops.
- Door guide.
- Fixings.
Paris 2:
- As Paris 1 components plus MDF pelmet with pelmet ends to cover the track.
Paris 3:
- As Paris 2 plus a full length 2100 mm recessed door post made from a real wood veneer. Comes with bumpers..
General information
Color | Silver Other |
Material | Aluminium |
Shape | Other |
Length | 2000 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | L20/520 Sliding doors |
Specification data - Sliding door and partition sets
Performance | Internal. |
Arrangement | Top hung. |
Track system | 2000 mm anodized aluminium.Guidance for specification option: Can be cut to length. No bottom track required. Runners are tested to 100 000 cycles. |
Door leaves | |
Construction | Manufacturer guidanceDoor not supplied. Maximum door leaf weight: 60 kg (subject to suitable substrate). |
Operation | Manual. |
Hardware | Required.Guidance for specification option: Consult manufacturer for flush pull handles and insert requirements. Not required. |
Execution | Consult manufacturer for details. |
Product Reference | Sliding Door Kit – Paris 1 Guidance for specification option:
Sliding Door Kit – Paris 2 Guidance for specification option:
Sliding Door Kit – Paris 3 Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | 55% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % Guidance for specification option: Aluminium. |
Literature
Eclisse Sliding Pocket Door Systems - Future Of Doors
