Delta Amphibia 1.3mm - EPDM Multi-Layer Waterproofing Membrane
Verified by manufacturer 5 months ago
DMS 1035
DMS 1035
BBA Agrément Certificate
Certificate type
Co-extruded multi-layer waterproofing membrane.
Application
Waterproofing and protection of concrete underground structures such as residential and commercial buildings, shopping centres, public works etc, which require close and continuous contact between the waterproofing product and structure (foundation slabs and walls, against slurry walls, piles, Berlinese or disposable formwork). It can also be used in other structures such as channels, tanks, purification systems and tunnels.
Anti-damp protection for concrete structures built at ground level such as underfloor screeds.
Delta Amphibia Pre-Applied Membrane 1.3mm is suitable for:
- Multi-storey underground constructions.
- Cellars, garages, taverns, technical rooms and underground rooms in general.
- Tunnels, underpasses and similar infrastructures.
- Inground pool waterproofing.
- Existing cellars, garages, taverns, technical rooms and underground rooms in general.
- Existing tunnels, underpasses and similar infrastructures.
- Elevator pits/lightwells.
Description

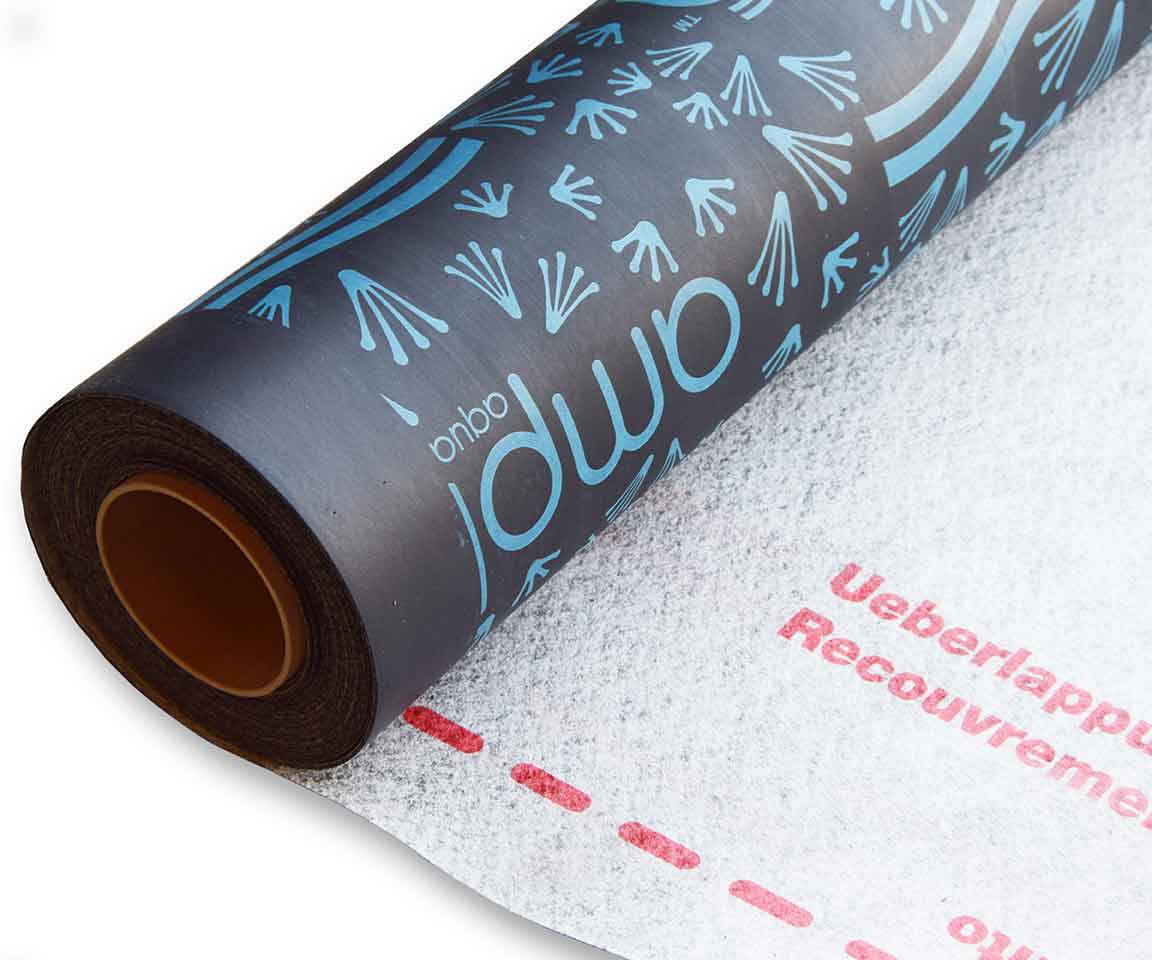

Delta Amphibia 1.3 mm pre-applied membrane is a co-extruded multi-layer waterproofing membrane. This robust, tough but flexible waterproofing membrane is suitable for all construction applications.
Delta Amphibia 1.3 mm is an EPDM waterproof membrane available in two widths, reactive to contact with water, self-repairing, self-sealing and self-fastening to concrete.
Offers differentiated function for total water tightness of underground structures against water seepage.

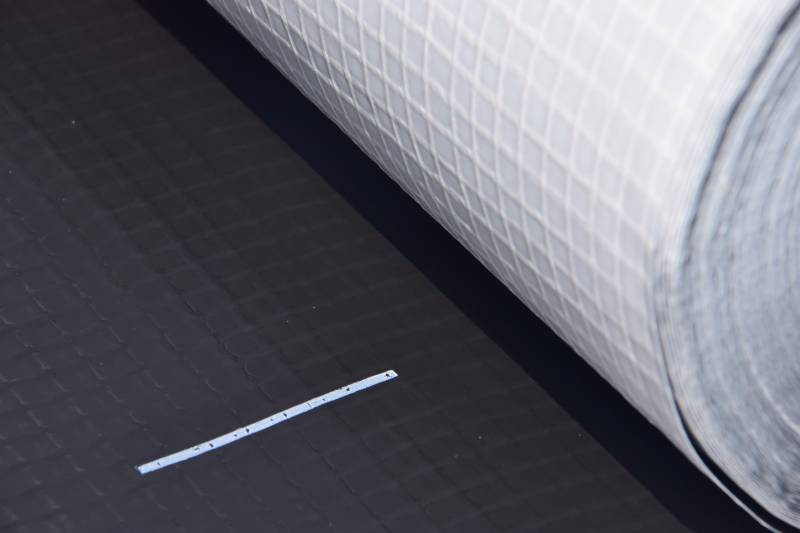

It is provided with a calibrated non-woven fabric on the inner face/side in contact with fresh concrete which allows the mechanical adhesion of the membrane to the structure.
Features and benefits:
- Cold application with easy visual inspection of correct installation.
- Resistant to groundwater.
- Self-sealing overlappings.
- Absolute impermeability with no side seepage of water.
- High puncture resistance.
- Immediate mechanical protection, self-repairing also on accidental holes.
- High resistance to hydraulic load.
- High flexibility and capacity to bridge cracks.
- Total adhesion to the reinforced concrete structure.
- Easy passage of connecting reinforcements with self-sealing holes.
- Conforms to BS 8102:2022.
- CE marked.
- BBA approved, certificate 22/6047.
General information
Color | Black Grey |
Material | EPDM |
Length | 10000 mm 20000 mm |
Width | 900 mm 1800 mm |
Height | 1.3 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing |
Specification data - Plastics sheets
Material | EPDM. |
Purpose | Waterproofing membrane. |
Standard | To BS 8102:2022. |
Third-party certification | CE marked and BBA certified 22/6047. |
Form | Non-woven.Guidance for specification option: Co-extruded multi-layer waterproofing membrane with a calibrated non-woven fabric on the inner face/side. |
Physical properties | |
Colour | Black. |
Weight (minimum) | 1.67 kg/m². |
Dimensions | |
Thickness (minimum) | 1.3 mm. |
Width (minimum) | 0.9 m. |
Roll length (minimum) | 10 m. |
Roll weight | 15 kg |
Accessories | Not required. Delta Amphibia Pressure Line DMS1037. Guidance for specification option: Steel straight profile coated on one side with Delta Amphibia membrane.
Delta Amphibia Pressure Corner 90º DMS1038. Guidance for specification option: Steel corner profile coated on one side with Delta Amphibia membrane.
Delta Amphibia Pressure Corner 270º DMS1039. Guidance for specification option: Steel corner profile coated on one side with Delta Amphibia membrane.
Delta Amphibia Safety Tape DMS1002. Guidance for specification option: One-sided sealing tape, typically used for connecting and sealing Delta Amphibia membranes together where they join or overlap. 25 m roll. |
Sustainability data
Contains Red List materials | No |
Material | EPDM |
Recyclability | 0% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

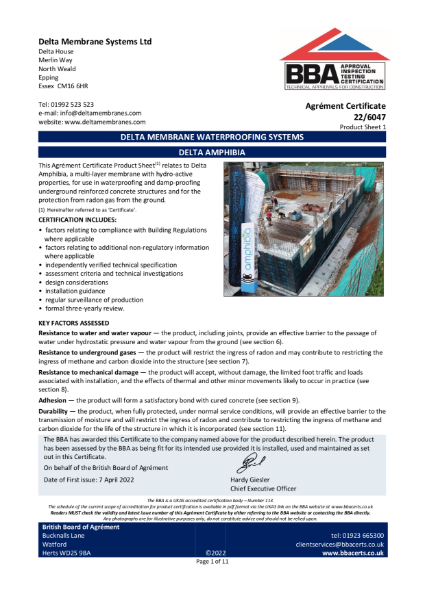

BBA Agrément Certificate
6047ps1i1 BBA Certificate Delta Amphibia
Literature
Delta Amphibia Product Brochure
Delta Amphibia Installation Guide
Case studies

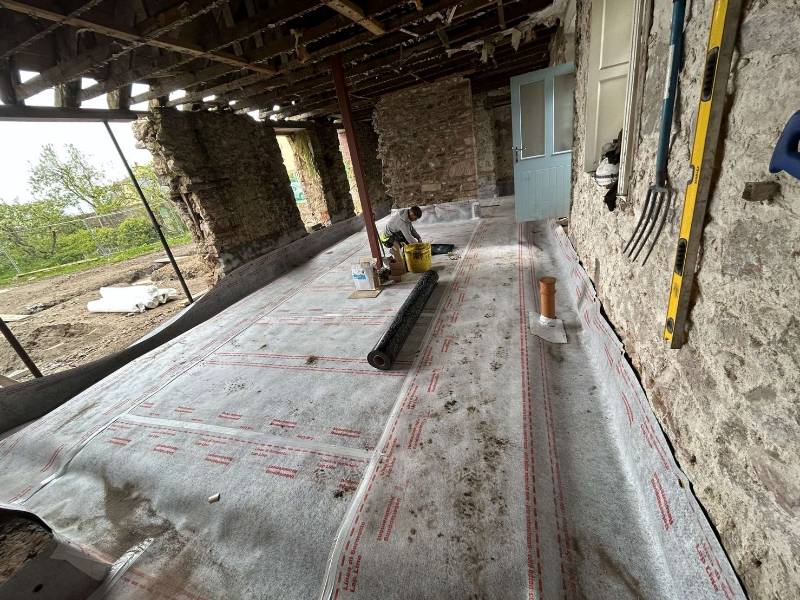

Type A and Type C Waterproofing - Delta Amphibia
