Pro Titan Tank

Verified by manufacturer 3 months ago

Delta Membrane Systems Ltd

Post applied polyethylene waterproofing membrane and ground gas protection membrane.

Jump to:
BOS
+44 (0)1992 523523 Website

Application

Can be applied horizontally as well as vertically and is used in all applications where structures require protection against ground water, seepage, ground gas, hydrocarbons, volatile organic compounds (VOCs) and other contaminants.


Typically used in the following constructions:

  • New build basements.
  • Foundations.
  • Tunnels.
  • Concrete structures below ground.

Description

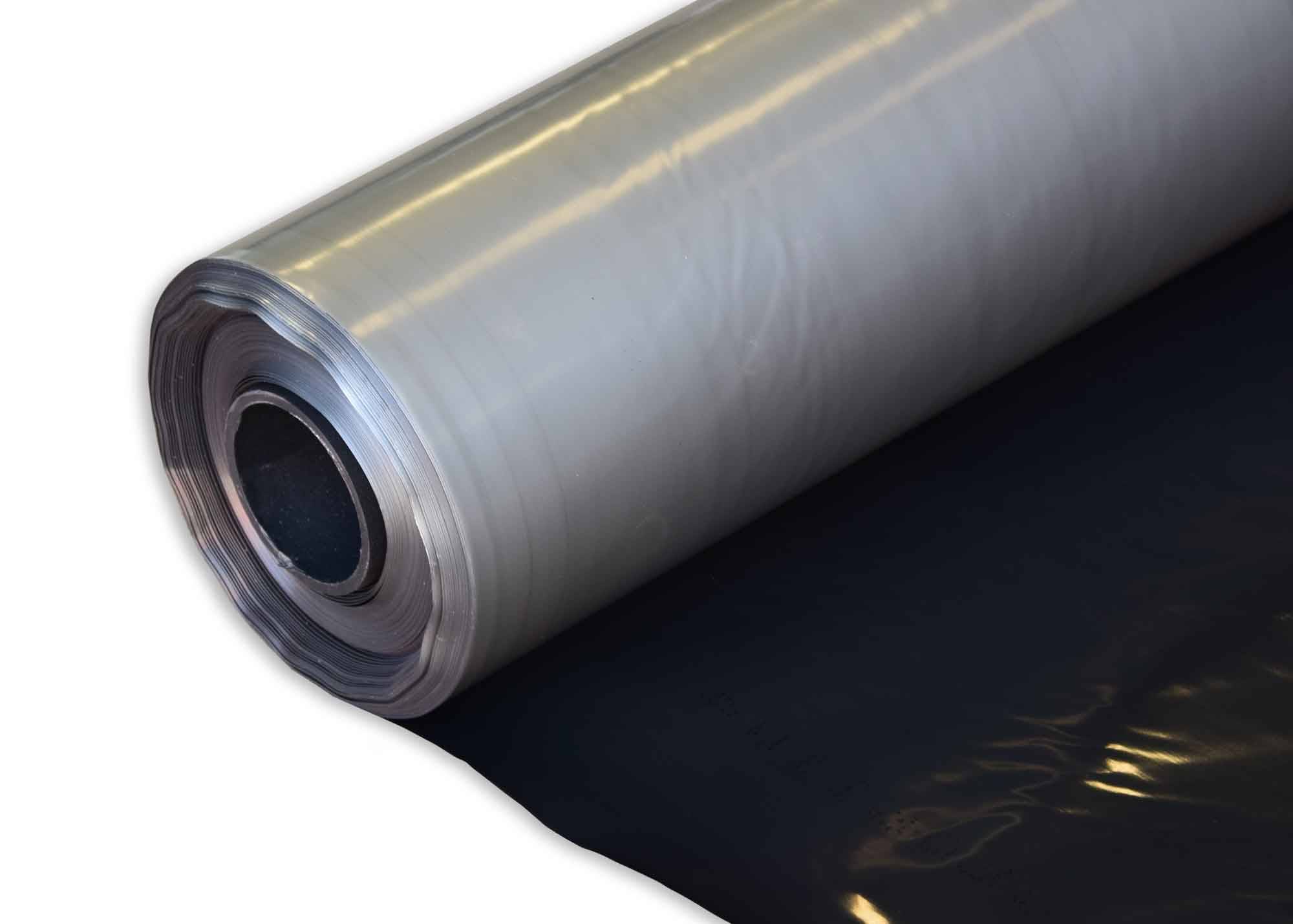

A multi-layer polyethylene membrane with an adhesive coating for post applied vertical applications as a waterproof membrane, specifically designed and manufactured to perform as a methane, carbon dioxide, radon, volatile organic compounds (VOCs), hydrocarbon and ground gas protection system.


It complies with the latest codes of practice as published by BRE, CIRIA (748) and BSI (BS 8485 and BS 8102). It is suitable for use as ground gas/ hydrocarbon protection for NHBC Green, Amber1, Amber2 and Red sites.


It comprises of Pro Titan and a specialist all weather adhesive backing to provide a bonding layer for specifically waterproofing applications, providing Type A barrier protection in accordance with BS 8102. Immersion testing has also been completed for chemical resistance to BS EN 14414 and BS EN 14415. CE marked to BS EN 13967.

General information

Color

Black

Material

Polyethylene

Length

20000 mm

Width

900 mm

Warranty description

60 year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing

J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing

Specification data - Plastics sheets

Material

Polyethylene.

Purpose

Gas protection system.

Standard

To BS EN 14414 and BS EN 14415.

Third-party certification

CE marked to BS EN 13967.

Performance characteristics

-

Tensile strength (minimum)

>550 N/50 mm and >400 N/50 mm.

Guidance for specification option:

To BS EN 12311-1: Longitudinal: >550 N/50 mm; transverse >400 N/50 mm.

Tear resistance

>300 N.

Guidance for specification option:

To BS EN 12310-1.

Resistant to underground gases

-

Manufacturer guidance

Gas permeability: Consult manufacturer's literature for information.

Fire performance

To BS EN ISO 11925-2, class E.

Physical properties

-

Weight (minimum)

1000 g/m².

Dimensions

-

Thickness (minimum)

1.2 mm.

Roll length (minimum)

20 m.

Dimensions

300 mm.

1000 mm.

Resistance

-

Manufacturer guidance

  • Resistance to static load (to BS EN 12730): 20 kg.
  • Resistance to impact (to BS EN 12691-B): 650 N.
  • Resistance to artificial ageing (to BS EN 1296): Pass.
  • Resistance to chemicals (to BS EN 1847): Pass.

Water tightness (to EN 1928)

-

Manufacturer guidance

  • Water tightness (to BS EN 1928, at 60 kPa): Pass.
  • Water tightness (to BS EN 1928, at 196 kPa - 20 m head): Pass.

Adhesion

-

Manufacturer guidance

Concrete peel adhesion (to ASTM D903 (mod)): >3 kN/m.

Water vapour permeability

-

Manufacturer guidance

Consult manufacturer's literature for information.

Water vapour transmission

0.14 g/m²/day.

Guidance for specification option:

To BS EN 1931.

Sustainability data

Contains Red List materials

No

Material

Polyethylene

Recyclability

No

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
