Pro Titan Bond
Verified by manufacturer 4 months ago
Polyethylene waterproofing and ground gas protection membrane
Application
Can be applied horizontally as well as vertically and is used in all applications where structures require protection against ground water, seepage, ground gas, hydrocarbons, volatile organic compounds (VOCs) and other contaminants.
Typically used in the following constructions:
- New build basements.
- Foundations.
- Tunnels.
- Concrete structures below ground.
Description

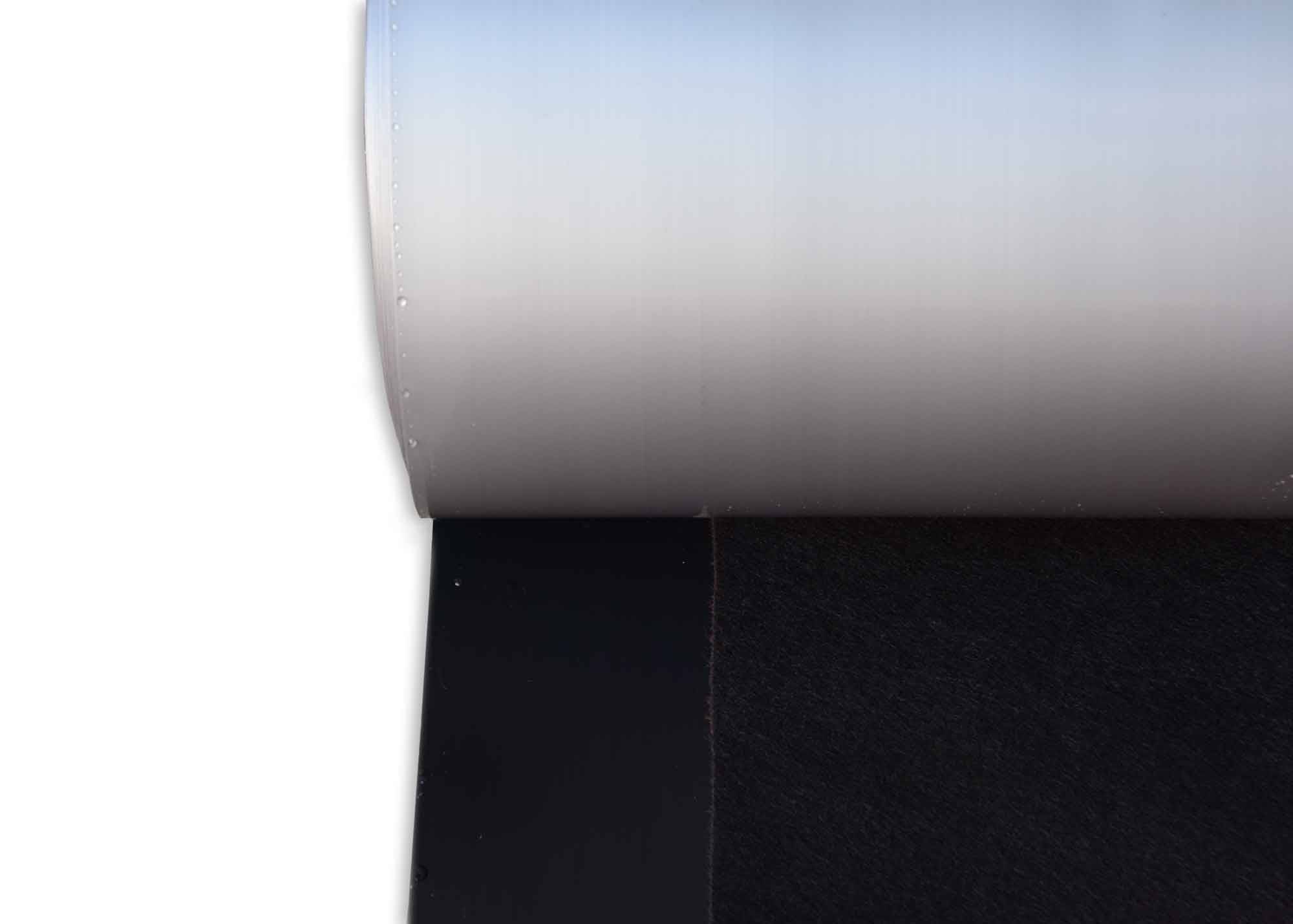

A multi-layer polyethylene membrane with a bonded textile for pre applied applications as a waterproof membrane, specifically designed and manufactured to perform as a methane, carbon dioxide, radon, volatile organic compounds (VOCs), hydrocarbon and ground gas protection system.
It complies with the latest codes of practice as published by BRE, CIRIA (748) and BSI (BS 8485 and BS 8102). It is suitable for use as ground gas/ hydrocarbon protection for NHBC Green, Amber1, Amber2 and Red sites.
It comprises of Memtech Titan and a specialist bonded geotextile to provide a bonding layer for poured concrete, providing Type A barrier protection in accordance with BS 8102. Immersion testing has also been completed for chemical resistance to BS EN 14414 and BS EN 14415. CE marked to BS EN 13967.
General information
Color | Silver Black |
Material | Polyethylene |
Length | 25000 mm |
Width | 2000 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing |
Specification data - Plastics sheets
Material | Polyethylene. |
Purpose | Gas protection system. |
Standard | To BS EN 14414 and BS EN 14415. |
Third-party certification | CE marked to BS EN 13967. |
Performance characteristics | |
Tensile strength (minimum) | >550 N/50 mm and >400 N/50 mm.Guidance for specification option: To BS EN 12311-1: Longitudinal: >550 N/50 mm; transverse >400 N/50 mm. |
Tear resistance | >300 N.Guidance for specification option: To BS EN 12310-1. |
Resistant to underground gases | Manufacturer guidanceGas permeability: Consult manufacturer's literature for information. |
Fire performance | To BS EN ISO 11925-2, class E. |
Physical properties | |
Weight (minimum) | 700 g/m². |
Dimensions | |
Thickness (minimum) | 1 mm. |
Width (minimum) | 2 m. |
Roll length (minimum) | 25 m. |
Water tightness (to EN 1928) | Manufacturer guidance
|
Resistance | Manufacturer guidance
|
Adhesion | Manufacturer guidanceConcrete peel adhesion (to ASTM D903 (mod)): >3 kN/m. |
Water vapour transmission | 0.14 g/m²/day. Guidance for specification option: To BS EN 1931. |
Water vapour permeability | Manufacturer guidanceConsult manufacturer's literature for information. |
Sustainability data
Contains Red List materials | No |
Material | Polyethylene |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
