Double Swing Aluminium Hinge

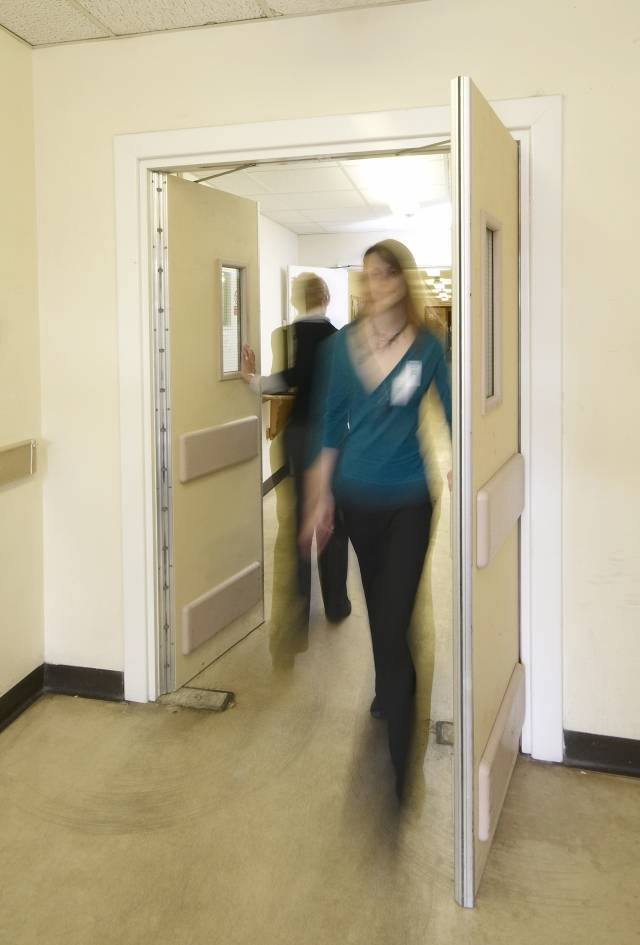

This solution is ideal for doors that need to swing 90° in both directions (180°) and eliminates the possibility of pivot doors splitting on impact. It provides an ideal solution for busy corridor doors which are exposed to impact damage and toilet/ shower room doors where there is a risk of barricade or patients collapsing in the room. The Double Swing Continuous Geared Hinge is available with an anti-vandal concealed closer, which can either be frame or floor mounted with a closing force size of 3–6. The closer is suitable for leaf widths up to 1100 mm, its closing speed and latching action is adjustable and comes complete with a safety valve to prevent deliberate overloading. It has a closing range from approximately 180° and is CE approved in accordance with EN 1154 and Certifire approved in accordance with EN 1634-1.

Features:

• Swings 90° in both directions.
• Fire tested to European Standard EN 1634-1 2000 to 30 minutes.
• UK Patent GB 2451 276A.
• Distributes loads stress uniformly along the full length of the door and frame.
• Available with anti-vandal concealed closer.

Benefits:

• Ideal for doors that need to open 180°.
• Ensures staff and patient safety in the event of a fire by maintaining fire integrity of the door allowing safe evacuation.
• Reduces life cycle costs by prolonging the lifetime of a door.
• Prevents door dropping and addresses door alignment issues to prevent damage to floor.

Disclaimer: Please note that Intastop offers a range of measures designed to reduce the risk of self-harm or suicide, and does not offer any guarantee that it will not take place. The solutions have been designed as a deterrent only.
