SECURAHinge - Ligature Resistant Continuous Hinge

Verified by manufacturer 29 days ago

Intastop Ltd

Top to bottom hinge safety.

Jump to:
+44 (0) 1302 364 666 Website

Application

Used on new or existing doors and is applied so as to conceal both leaves.

Description

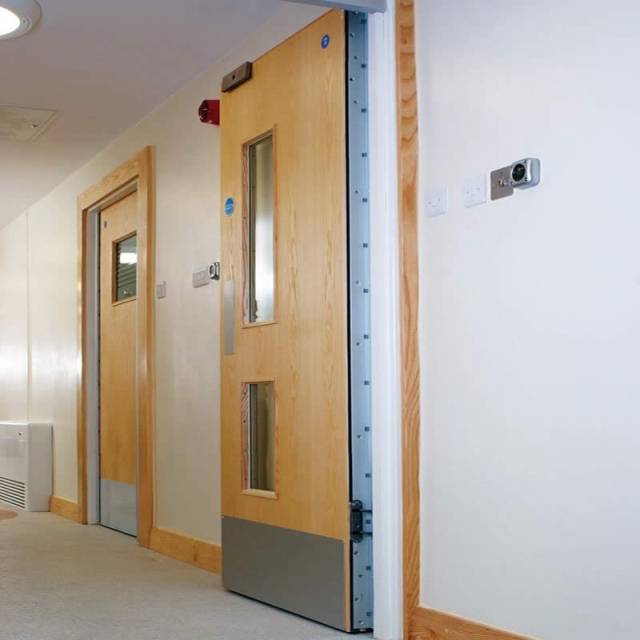

The full length continuous SECURAHinge can be used on new or existing doors and is applied so as to conceal both leaves. Unlike conventional hinges, it not have a pin. It consists of two full height, paired and geared leaves. Each geared leaf rotates evenly from top to bottom riding on Delrin-Teflon bearings. These softened bearings greatly reduce the ligature between the bearing and hinge leaves, which minimizes potential self-harm in the open state (i.e. when rubbing wrist against hinge). It features an anti-ligature tip which greatly minimizes the potential gap in open and closed positions and ensures no gap behind the bearing. The design features of the tip improve safety, making it ideal for use in a wide variety of situations in healthcare, psychiatric and secure accommodation environments where self-harm is a risk.


Features and benefits:

  • Fire tested to BS 476-20 and -22 for 30 and 60 minutes.
  • Opens 180° in one direction, allowing door to fold back.
  • Tested to DHF TS 001: B4 (0.5 mm wire test).
  • Grade 1 abuse tested.
  • Meets and exceeds BS EN 1935 (life cycle tested to 250 000 cycles).
  • Standard duty – for use on doors up to 125 kg in weight.
  • Helps reduce the risk of patient suicide and self-harm.
  • Reduces maintenance and overall lifecycle costs.
  • Provides patient privacy.


Disclaimer: Please note that Intastop offers a range of measures designed to reduce the risk of self-harm or suicide, and does not offer any guarantee that it will not take place. The solutions have been designed as a deterrent only.

General information

Color

Silver

Finish

Satin

Anodized

Material

Aluminium

Shape

Rectangle

Length

2100 mm

2400 mm

Uniclass

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

P21/320 Door hinges

P21/8 Door hinges

Product range

Hinges

Specification data - Cranked hinges

Form

Cranked.

Category of use

Standard duty.

Guidance for specification option:

For doors up to 125 kg in weight.

Heavy duty.

Guidance for specification option:

For doors up to 245 kg in weight.

Extreme duty.

Guidance for specification option:

For doors up to 500 kg in weight.

Size

2100 mm.

2400 mm.

Material and finish

Satin anodized aluminium (SAA).

Colour

Silver.

Accessories

None.

Fire/smoke seal pack.

Guidance for specification option:

Required for FD30 and FD60 applications.

Sustainability data

Material

Aluminium

BIM objects

Platform Compatible Version
Revit
-

1
