Full Mortice Continuous Geared Hinge

Verified by manufacturer 29 days ago

Intastop Ltd

Fire rated full mortice continuous geared hinges eliminate door alignment problems such as door dropping.

Jump to:
+44 (0) 1302 364 666 Website

Application

Used on new or existing doors and are applied so as to conceal both leaves.

Description

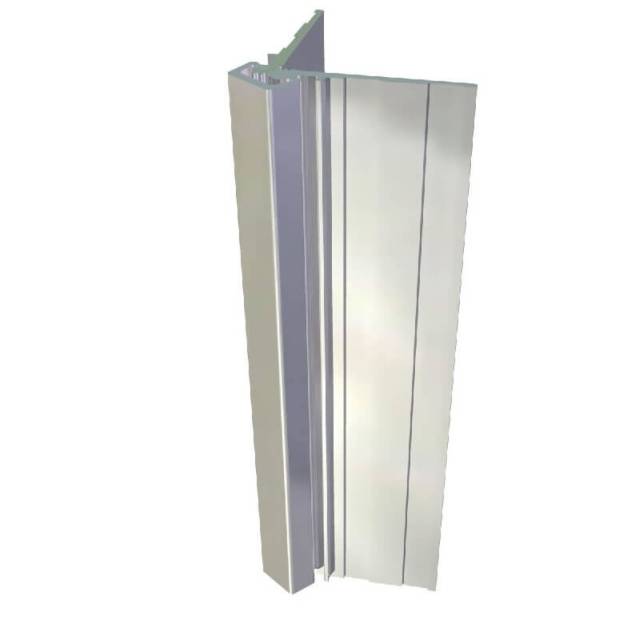

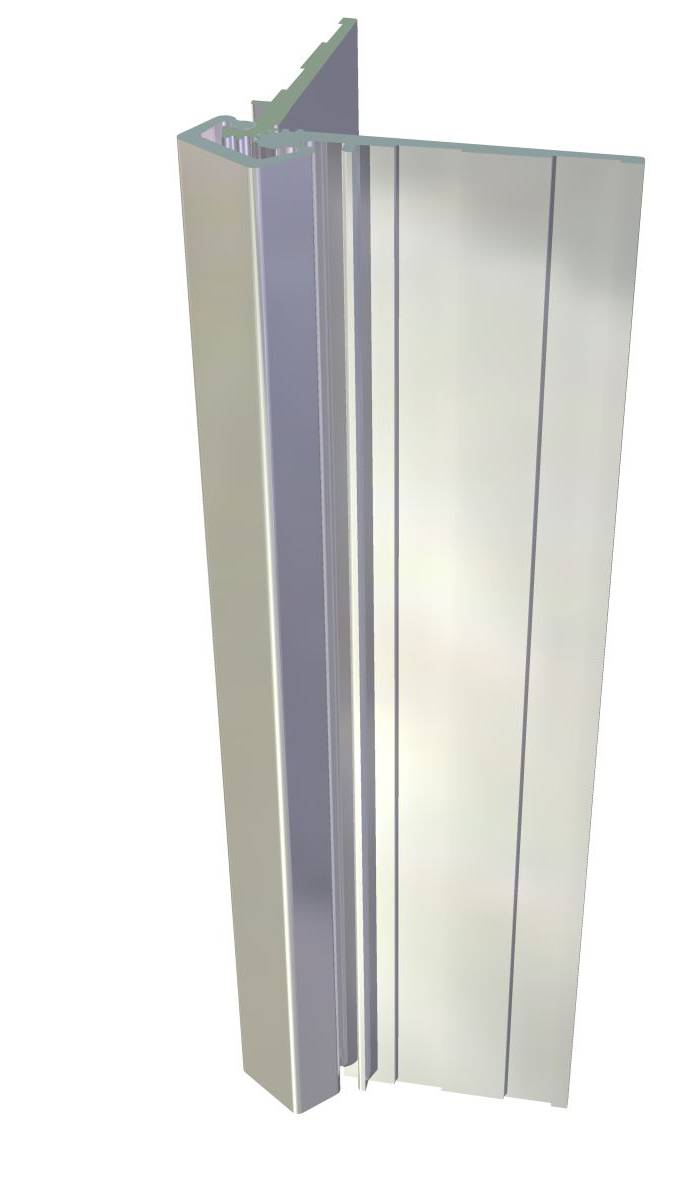

Full Mortice Hinges can be used on new or existing doors and are applied so as to conceal both leaves. Unlike conventional hinges, the Continuous Geared Hinge does not have a pin. It consists of two full height, paired and geared leaves. Each geared leaf rotates evenly from top to bottom riding on Delrin-Teflon bearings, retaining the smooth, clean lines of the door and frame, while easily supporting heavy vertical loads such as doors.


Features:

  • Designed mainly for new door applications.
  • Distributes load stress uniformly along the full length of the door and frame.
  • Gap between door and frame is sealed.
  • Tested to 250 000 cycles.
  • Fire tested to BS 476-20 and -22 for 30 and 60 minutes.
  • Grade 1 abuse tested.


Benefits:

  • Reduce the need to replace expensive fire doors by protecting them from damage and door dropping.
  • Ensures staff and patient safety in the event of a fire by maintaining fire integrity of the door allowing safe evacuation.
  • Prevents door dropping and addresses door alignment issues to prevent damage to floor.
  • Gives patients and staff privacy against prying.
  • Reduces life cycle costs by prolonging the lifetime of a door.
  • Reduces maintenance costs by preventing damage to vulnerable back edges of doors.

General information

Finish

Satin

Material

Aluminium

Length

2100 mm

2400 mm

Uniclass

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

P21/320 Door hinges

P21/8 Door hinges

Product range

Hinges

Specification data - Cranked hinges

Form

Cranked.

Material and finish

Satin anodized aluminium (SAA).

Length

2100 mm.

2400 mm.

Duty

Standard.

Guidance for specification option:

For doors up to 125 kg in weight.

Heavy.

Guidance for specification option:

For doors up to 245 kg in weight.

Extreme.

Guidance for specification option:

For doors up to 500 kg in weight.

Hinge seal pack (S44 smoke seal and intumescent)

Not required.

Required.
