ECO360 MA Sarking insulation - Pitched Roof Sarking Insulation

Name: ECO360 MA Sarking insulation - Pitched Roof Sarking Insulation
Brand: Unilin Insulation UK Limited
SKU: ukbWB6FaZfzqnZUWCjCvup

Verified by manufacturer 4 months ago

Unilin Insulation UK Limited

Third party certifications:

EPD
Certificate type

Polyisocyanurate (PIR) insulation suitable for sarking warm roof construction.

Jump to:

+44 (0)371 2221033 Website

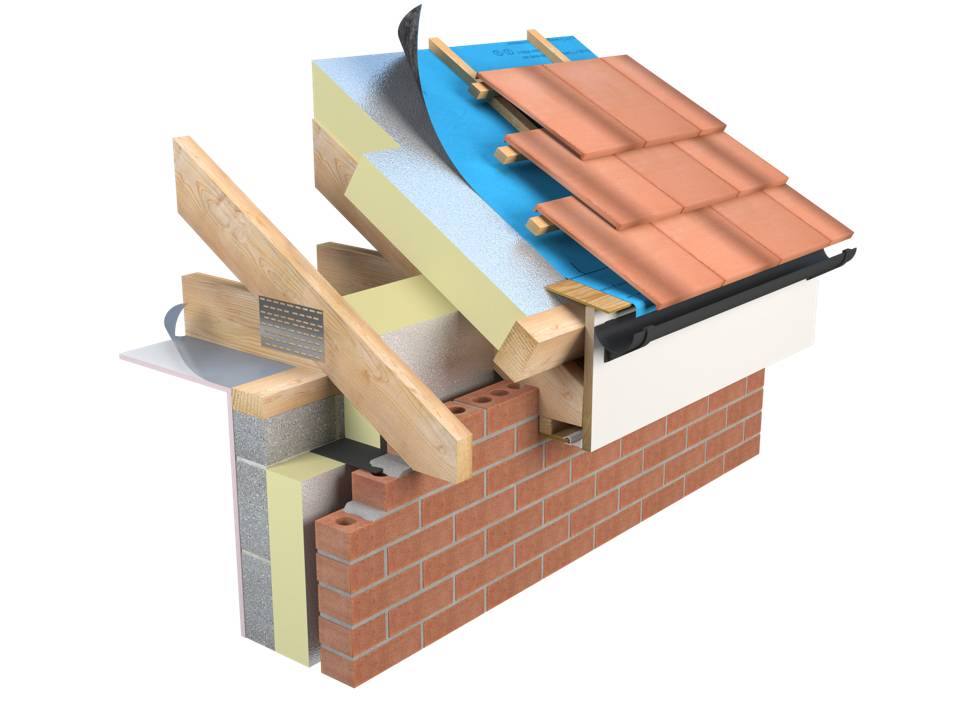

Application

Warm pitched roof

Description

ECO360 MA, with a thermal conductivity as low as

0.020 W/mK, in a sarking warm roof application offers

an environmentally conscious solution which provides

improved detailing, speed of installation and a uniform

plane to accommodate more efficient detailing.

This bio-enhanced insulation is lightweight, easy to install and combines high compressive strength with low thermal conductivity, providing a high performance solution for roof insulation.

ECO360 MA is halogen free and has low VOC emissions.

The product packaging is bio-degradable and the overall

packaging content has been reduced significantly

Features and benefits:

Bio-enhanced PIR insulation
Enhanced performance as low as 0.020 W/mK
Halogen free
Bio-degradable packaging
Suitable for pitched roofs.

General information

Color	Yellow
Finish	Foil
Material	Polyisocyanurate (PIR)
Shape	Rectangle
Length	2400 mm
Width	1200 mm
Height	100 mm 125 mm 150 mm Manufacturer guidance Thickness

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	K11/695 Rigid board insulation fixed as roof sarking K11/55 Rigid board insulation fixed as roof sarking

Specification data - Polyisocyanurate (PIR) foam boards

Standard	To BS EN 13165.
Fire performance	NPD.
Thermal conductivity (maximum)	0.020 (W/mK).
Compressive strength at 10% deformation	150 (kPa)
Cross section	Uniform thickness.
Thickness (nominal)	100 mm. Guidance for specification option: R-Value : 5 m² K/W. 125 mm. Guidance for specification option: R-Value : 6.25 m² K/W. 150 mm. Guidance for specification option: R-Value : 7.5 m² K/W.
Face size (length x width)	2400 x 1200 mm.
Facing	Foil.
Edges	Square.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Polyisocyanurate (PIR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	9.11 kg CO₂ eq/m²
Recyclability	0
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
