Education Range: Classroom Doorset - Wood Doorsets

Name: Education Range: Classroom Doorset - Wood Doorsets
Brand: Bridgman IBC Ltd
SKU: nZ6eqAcsRas8yFEF8kjLYE

Verified by manufacturer 4 months ago

Bridgman IBC Ltd

Third party certifications:

BM Trada
Certificate type

A severe duty single classroom doorset with two vision panels.

Jump to:

+44 (0)1429 221111 Website

Application

A doorset suitable for classrooms and education rooms.

Description

A severe duty single classroom doorset with two vision panels.

Features and benefits:

The severe duty flax core doors (framed) are available in 44 mm and 54 mm thickness.
Available with FSC/ PEFC certification - consult manufacturer for details.
Two types of frame construction are available:
Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm, a tongued extension piece is fitted.
Frames can be softwood or hardwood to suit project requirements.
Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements. Consult manufacturer for details.
Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Color	Beige Black Blue Brown Gold White Grey Ivory Green Cream Copper Orange Purple Pink Yellow Red Silver Other Guidance for specification option: A range of colours available. Show more
Finish	Primed Guidance for specification option: Factory primed. Lacquered Laminated Veneered Other Guidance for specification option: PVC Manufacturer guidance Also available with Hygienilac finish.
Material	Wood
Shape	Rectangle
Length	Bespoke Manufacturer guidance A range of sizes are available based on the suitable fire rating.
Width	Bespoke Manufacturer guidance A range of sizes are available based on the suitable fire rating.
Height	Bespoke Manufacturer guidance A range of sizes are available based on the suitable fire rating.
Warranty description	25 year Guidance for specification option: On hinges.

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/410 Wood doorsets L20/55 Doorsets

Specification data - Wood doorsets

Third party accreditation	FSC; PEFC certification. Guidance for specification option: Consult manufacturer for details.
Configuration	Single leaf, single action.
Doorset size	1000 x 2100 mm.
Format	Single leaf, single action.
Frame	-
Material	Hardwood. Softwood.
Finish	Factory primed. Hygienilac. Lacquered. Laminated.
Frame accessories	Not required. Cookes Brothers butt hinges. Royd and Tucker hi-load H105 lift off hinges. Union 603 butt hinges.
Door leaf	-
Thickness	44 mm. 54 mm.
Panel details	Door panel has two vision panels.
Facings	Acrovyn. Laminated. Medium density fibreboard (MDF). Plywood. Veneered.
Species	Hardwood. Softwood.
Lippings	Hardwood.
Finish	Factory primed. Hygienilac. Lacquered. Laminated.
Door accessories	Not required. Kick plates. Guidance for specification option: Consult manufacturer for details. Mouldings. Guidance for specification option: Consult manufacturer for details. Overpanels. Guidance for specification option: Consult manufacturer for details. Push plates. Guidance for specification option: Consult manufacturer for details. Alarm wiring facilities. Guidance for specification option: Linked to existing alarm systems, consult manufacturer for details. Emergency exit facilities. Guidance for specification option: Consult manufacturer for details. Factory mortising for locks. Guidance for specification option: Consult manufacturer for details. Fire-resisting doors. Guidance for specification option: Consult manufacturer for details.
Architraves	-
Wood appearance class	Type 1. Type 2. Type 3.

Type	Solid rebated frame with integral stop. Guidance for specification option: Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm. Planed square edge (PSE) section with loose door stops. Guidance for specification option: 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm, a tongued extension piece is fitted. Manufacturer guidance Door frame type.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Wood

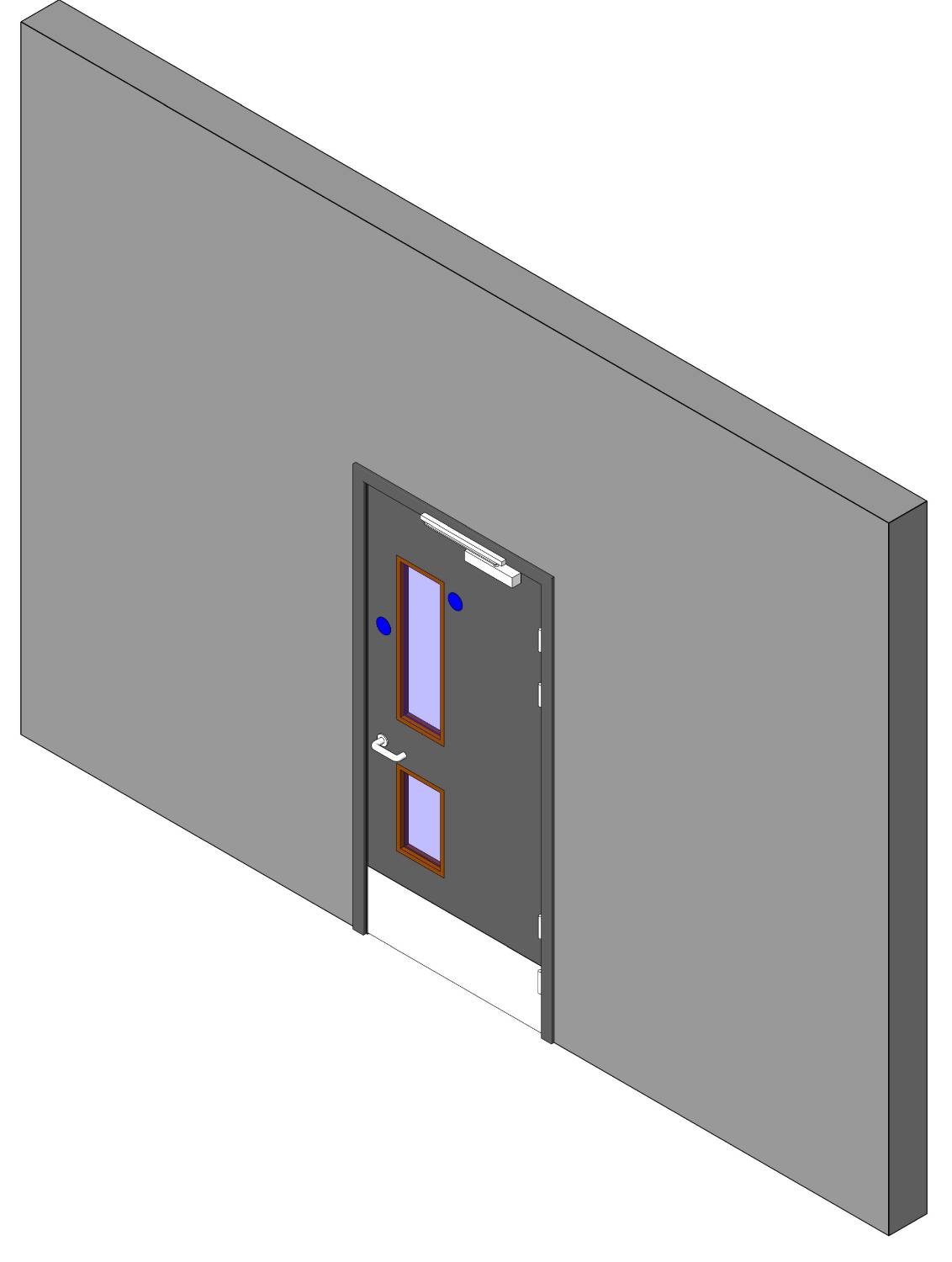

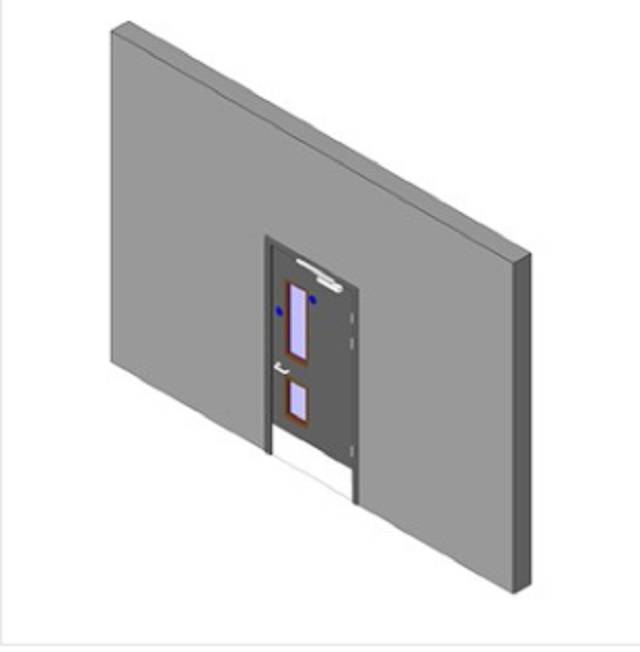

BIM objects

Platform	Compatible	Version
Revit	Revit 2016	1

Third party certifications

BM Trada

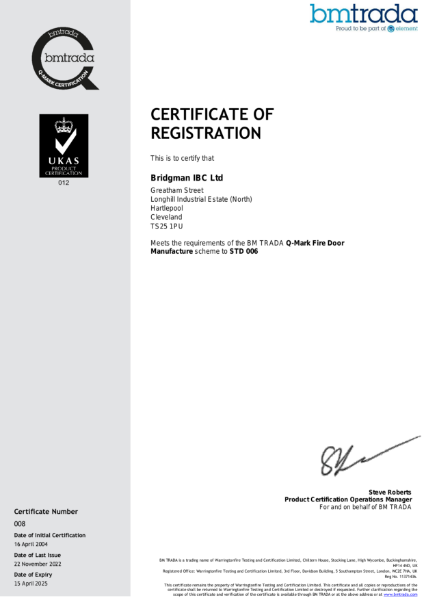

BM Trada Q Mark Fire

BM Trada

FSC

BM Trada

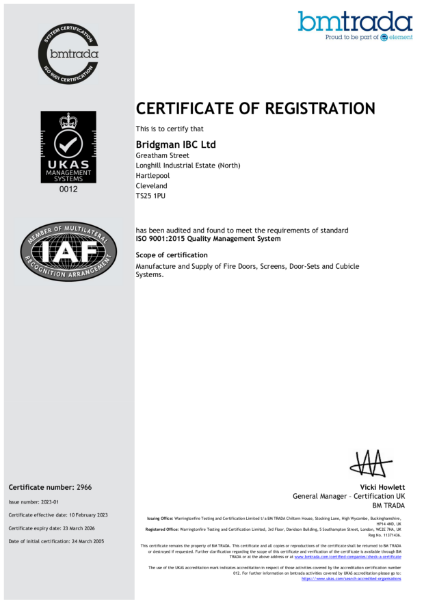

IS0 9001:2015 Quality Management System

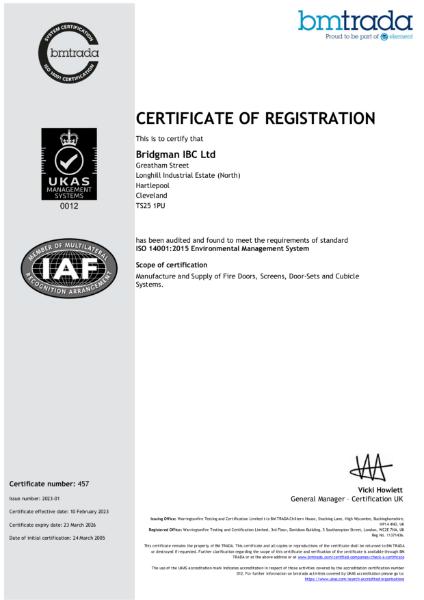

BM Trada

ISO 14001 EMS

Literature

Installation Guidance
