Education Range: Store Room/ Plant Room

Name: Education Range: Store Room/ Plant Room
Brand: Bridgman IBC Ltd
SKU: 5DNr5giC7Ch3TFLseUGAXu

Verified by manufacturer 3 months ago

Third party certifications:

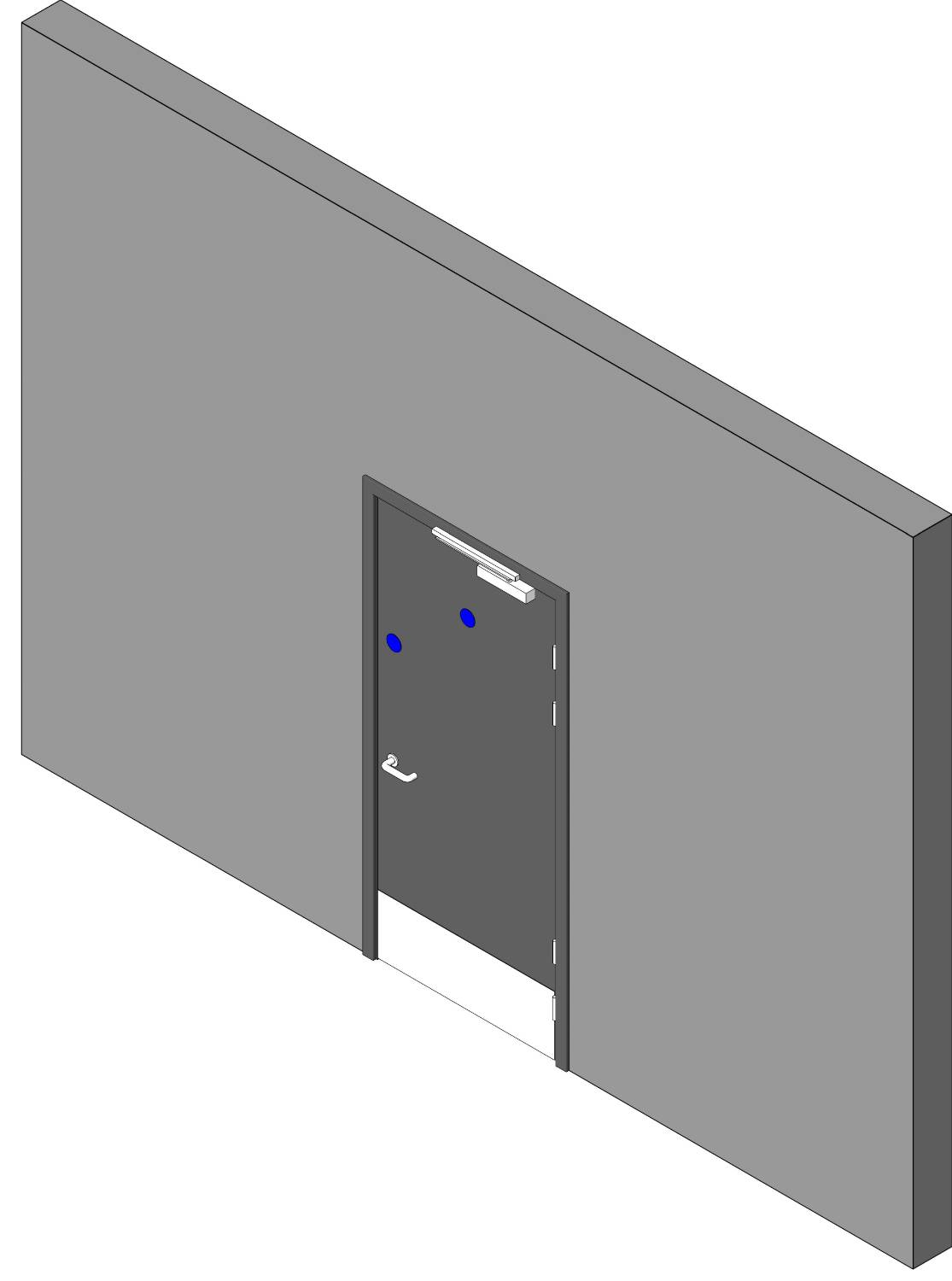

Store room/ plant room door.

Jump to:

Application

A doorset suitable for classrooms and education facilities, suitable for plant and store rooms.

Store room/ plant room door.

Features and benefits:

The severe duty flax core doors (framed) are available in 44 mm and 54 mm thickness.
Available with FSC/ PEFC certification - consult manufacturer for details.
Two types of frame construction are available:
Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
Frames can be softwood or hardwood to suit project requirements.
Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements.
Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

Finish	Primed Lacquered Laminated Manufacturer guidance Also available with a Hygienilac finish.
Material	Wood
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Warranty description	25 year Guidance for specification option: On hinges.

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/410 Wood doorsets L20/55 Doorsets

Configuration	Single leaf, single action.
Doorset size	Guidance for specification option: Insert requirements, maximum 1000 x 2100 mm.
Frame	-
Material	Hardwood. Softwood.
Frame accessories	Not required. Cookes Brothers butt hinges. Royd and Tucker Hi-Load H105 lift off hinges. Union 603 butt hinges.
Door leaf	-
Thickness	44 mm. 54 mm.
Facings	Acrovyn. Laminated. Medium density fibreboard (MDF). Plywood. Veneered.
Finish	Factory primed. Hygienilac. Lacquered. Laminated.
Door accessories	Not required. Kick plates. Guidance for specification option: Consult manufacturer for details. Mouldings. Guidance for specification option: Consult manufacturer for details. Overpanels. Guidance for specification option: Consult manufacturer for details.Consult manufacturer for details. Push plates. Alarm wiring facilities. Guidance for specification option: Linked to existing alarm systems, consult manufacturer for details. Emergency exit facilities. Guidance for specification option: Consult manufacturer for details. Factory mortising for locks. Guidance for specification option: Consult manufacturer for details. Fire resisting doors. Guidance for specification option: Consult manufacturer for details.
Planted stops	-
Wood species	Hardwood. Softwood.

Lippings	Hardwood.
Architraves	Type 1. Type 2. Type 3.
Type	Solid rebated frame with integral stop. Guidance for specification option: Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm. Planed square edge (PSE) section with loose door stops. Guidance for specification option: 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted. Manufacturer guidance Door frame type.
Third-party certification	FSC; PEFC certification. Guidance for specification option: Consult manufacturer for details.
