Education Range: Stairwell Doorset Double
Verified by manufacturer 4 months ago

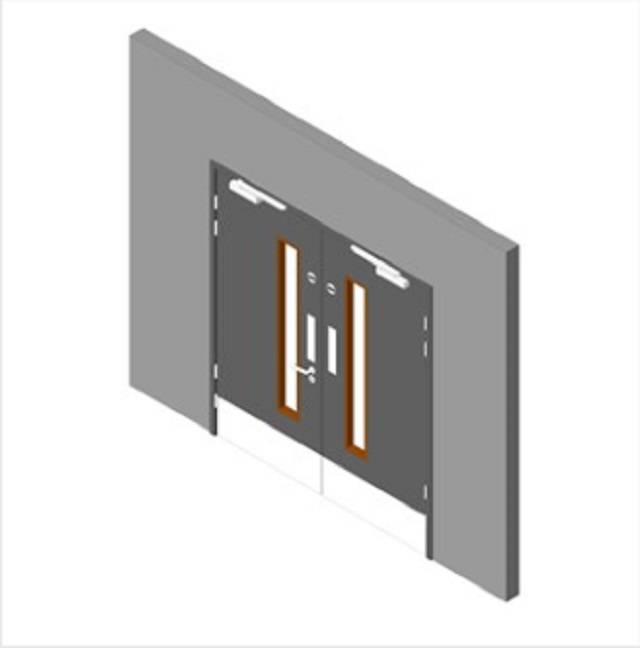

A severe duty, stairwell double doorset with one vision panel per door.
Application
A double doorset suitable for classrooms and education facilities.
Description
A severe duty, stairwell double doorset with one vision panel per door.
Features and benefits:
- The severe duty flax core doors (framed) are available in 44 mm and 54 mm thickness.
- Available with FSC/ PEFC certification - consult manufacturer for details.
- Two types of frame construction are available:
- Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
- Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
- Frames can be softwood or hardwood to suit project requirements.
- Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements.
- Bridgman are members of the Exova/ BM Trada Q Mark Scheme.
General information
Shape | Rectangle |
Finish | Primed Guidance for specification option: Factory primed. Lacquered Laminated Manufacturer guidanceAlso available with Hygienilac finish. |
Material | Wood |
Warranty description | 25 year |
Size | 1850 x 2110 x 44 mm 1850 x 2110 x 54 mm |
Uniclass | |
CAWS | L20/410 Wood doorsets L20/55 Doorsets |
Specification data - Wood doorsets
Third party accreditation | FSC; PEFC certification.Guidance for specification option: Consult manufacturer for details. |
Configuration | Double leaf, double action. |
Doorset size | 1850 x 2110 mm. |
Format | Double leaf, single action. |
Frame | |
Material | Hardwood.Softwood. |
Finish | Factory primed.Hygienilac.Lacquered.Laminated. |
Frame accessories | Not required.Cookes Brothers butt hinges.Guidance for specification option: With 25 year guarantee. Royd and Tucker Hi-Load H105 lift off hinges.Guidance for specification option: With 25 year guarantee. Union 603 butt hinges.Guidance for specification option: With 25 year guarantee. |
Door leaf | |
Thickness | 44 mm.54 mm. |
Panel details | Door panel has two vision panels. |
Facings | Acrovyn.Laminated.Medium density fibreboard (MDF).Plywood.Veneered. |
Species | Hardwood.Softwood. |
Lippings | Hardwood. |
Finish | Factory primed.Hygienilac.Lacquered.Laminated. |
Door accessories | Not required.Kick plates.Guidance for specification option: Consult manufacturer for details. Mouldings.Guidance for specification option: Consult manufacturer for details. Overpanels.Guidance for specification option: Consult manufacturer for details. Push plates.Guidance for specification option: Consult manufacturer for details. Alarm wiring facilities.Guidance for specification option: Linked to existing alarm systems, consult manufacturer for details. Emergency exit facilities.Guidance for specification option: Consult manufacturer for details. Factory mortising for locks.Guidance for specification option: Consult manufacturer for details. Fire resisting doors.Guidance for specification option: Consult manufacturer for details. |
Lippings | Hardwood. |
Architraves | Type 1. Type 2. Type 3. |
Type | Solid rebated frame with integral stop. Guidance for specification option: Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm. Planed square edge (PSE) section with loose door stops. Guidance for specification option: 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
