Application

A doorset suitable for bathrooms in education buildings and schools.

Description

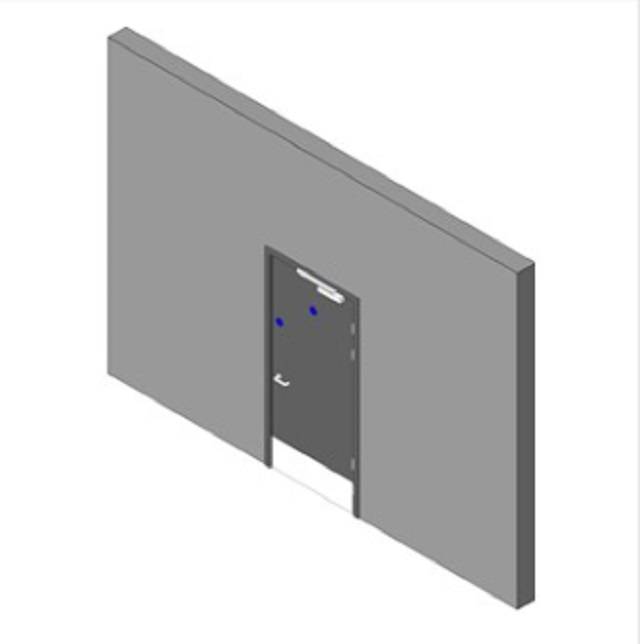

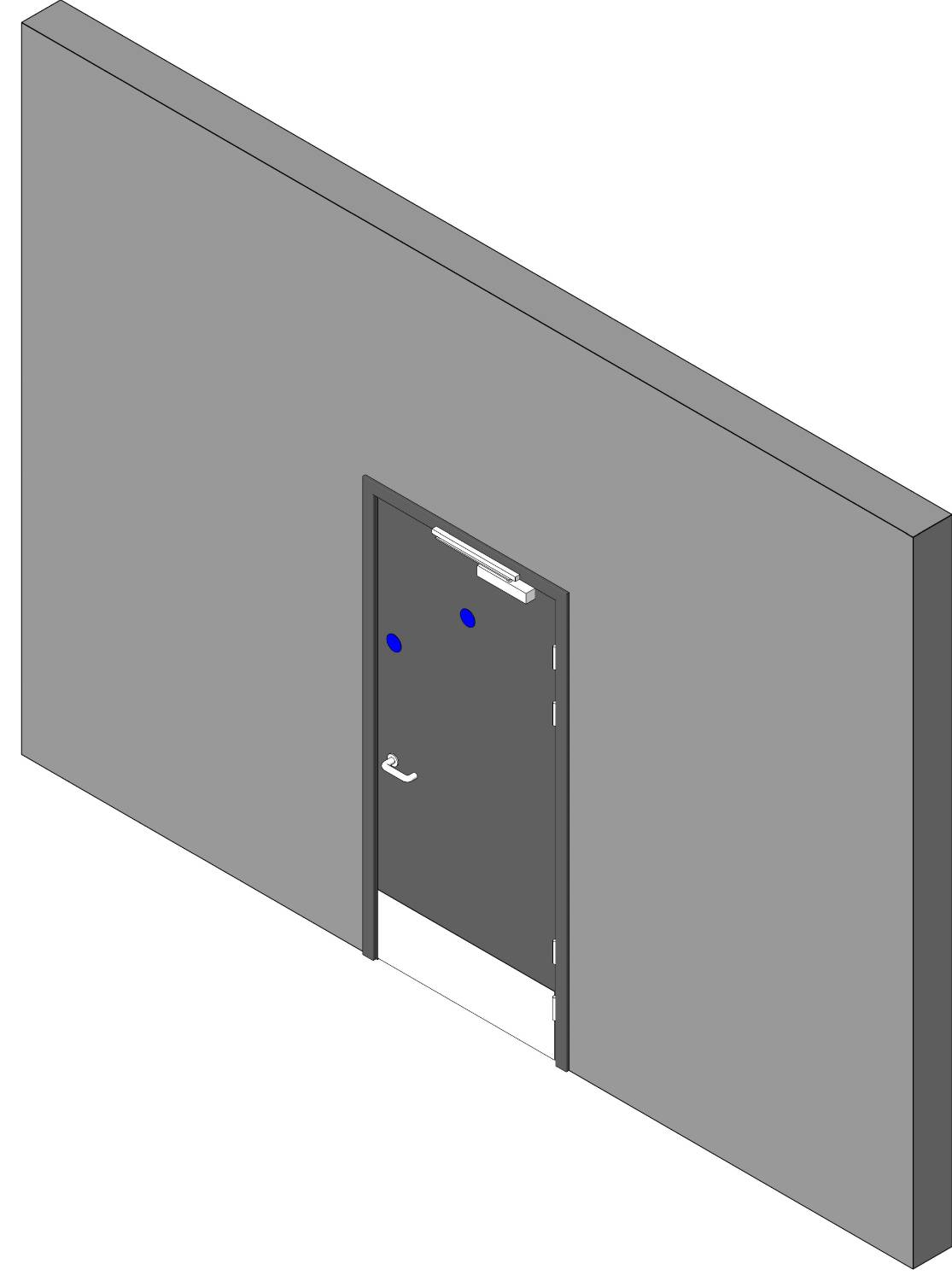

Toilet doorset.


Features and benefits:

  • The severe duty flax core doors (framed) are available in 44 mm and 54 mm thickness.
  • Available with FSC/ PEFC certification - consult manufacturer for details.
  • Two types of frame construction are available:
  • Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
  • Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
  • Frames can be softwood or hardwood to suit project requirements.
  • Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements.
  • Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Shape

Rectangle

Finish

Primed

Guidance for specification option:

Factory primed.

Lacquered

Laminated

Manufacturer guidance

Also available with a Hygienilac finish.

Material

Wood

Warranty description

21 year

Guidance for specification option:

On hinges.

Size

1000 x 2100 x 44 mm

1000 x 2100 x 54 mm

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Third party accreditation

FSC; PEFC certification.

Guidance for specification option:

Consult manufacturer for details.

Configuration

Single leaf, single action.

Doorset size

1000 x 2100 mm.

Format

Single leaf, single action.

Frame

-

Material

Hardwood.

Softwood.

Frame accessories

Not required.

Cookes Brothers butt hinges.

Royd and Tucker Hi-Load H105 lift off hinges.

Union 603 butt hinges.

Door leaf

-

Thickness

44 mm.

54 mm.

Facings

Acrovyn.

Laminated.

Medium density fibreboard (MDF).

Plywood.

Veneered.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Door accessories

Not required.

Kick plates.

Guidance for specification option:

Consult manufacturer for details.

Mouldings.

Guidance for specification option:

Consult manufacturer for details.

Overpanels.

Guidance for specification option:

Consult manufacturer for details.

Push plates.

Guidance for specification option:

Consult manufacturer for details.

Alarm wiring facilities.

Guidance for specification option:

Linked to existing alarm systems, consult manufacturer for details.

Emergency exit facilities.

Guidance for specification option:

Consult manufacturer for details.

Factory mortising for locks.

Guidance for specification option:

Consult manufacturer for details.

Fire resisting doors.

Guidance for specification option:

Consult manufacturer for details.

Planted stops

-

Wood species

Hardwood.

Softwood.

Lippings

Hardwood.

Architraves

Type 1.

Type 2.

Type 3.

Type

Solid rebated frame with integral stop.

Guidance for specification option:

Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.

Planed square edge (PSE) section with loose door stops.

Guidance for specification option:

32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.

Manufacturer guidance

Door frame type.

BIM objects

Platform Compatible Version
Revit

Revit 2016
