European Redwood - VTX Preservative Treated Timber Cladding
Verified by manufacturer 6 days ago
VTX1
VTX1
Chain of Custody Certification
Certificate type
Softwood weatherboards for external timber cladding in a range of profiles and sizes. Suitable for private and commercial projects including housing, education, healthcare and office.
Application
Preservative Treated European Redwood softwood weatherboards for external timber cladding in a range of profiles and sizes. Suitable for private, commercial and infrastructure projects, including:
- Housing
- Education
- Healthcare
- Offices
- Retail
Other applications include external timber fins/ louvres on a range of structures:
- Car park screening
- Solar shading
- Fencing
Description
VTX Pigmented (Brown) and VTX Zero (Clear) are preservative treatments commonly applied to European Redwood (Scots Pine).
The treatment offers a 30 year warranty against rot, and fungal decay when installed as a cladding board out of direct ground contact.
VTX Pigmented contains brown pigments and dyes within the preservative treatment (not a coating) which will offer an element of colour stability to your timber cladding, slowing the weather process.
VTX Zero does not contain any additional pigments, for those that want their timber to weather to a natural silver/ grey upon exposure to UV light.
- PEFC certified timber
- 30 year warranty
- Low Maintenance
General information
Color | Brown Clear |
Finish | Smooth Wood grain Woodgrain Sawn Textured |
Material | Timber |
Shape | Rectangle Guidance for specification option: Profiled, Fin, Aerofoil. |
Length | 1800 mm 2100 mm 2400 mm 2700 mm 3000 mm |
Width | 45 mm 70 mm 95 mm 120 mm 145 mm |
Warranty description | 30 year Guidance for specification option: Against rot and fungal decay. |
Uniclass | |
CAWS | B91/460 Timber cladding H21/116 Horizontal timber weatherboarding H21/115 Vertical timber weatherboarding H21/111 Horizontal timber weatherboarding H21/110 Vertical timber weatherboarding H21/15 Horizontal timber weatherboarding H21/10 Vertical timber weatherboarding |
Specification data - Softwood weatherboards
Standard | To BS EN 14915. |
Third-party certification | PEFC certified.FSC certified. |
Reaction to fire classification | To BS EN 13501-1, Class D-s2, d0.Guidance for specification option: In accordance with the SKBI (single burning item). |
Thermal conductivity | 0.13 W/m K. |
Resistance to fixings | Guidance for specification option: Stainless steel fixings recommended. |
Wood species | European redwood. |
Quality of timber (exposed surfaces) | To BS EN 14519, Grade A. |
Profile | VTX1. |
Finished size | |
Face width | 115 mm.Manufacturer guidanceFinished width: 145 mm. Other profiles are available in 45 mm and 70 mm face widths, consult manufacturer for details. |
Thickness | 20 mm. |
Biological durability | |
Use class | To BS EN 335, Use Class 2.Guidance for specification option: Once treated. |
Preservative treatment | VTX Pigmented.Guidance for specification option: Brown pigment. VTX Zero.Guidance for specification option: No pigment. |
Flame-retardant treatment | Not required.Required. |
Surface texture | Smooth. Planed. |
Board length | 1800 mm. 2100 mm. 2400 mm. 2700 mm. 3000 mm. |
MoistureContent | 18–20%. |
Density | 510 kg/m3 at 16–18% moisture content. |
Accessories | Not required. VTX7 Trim. VTX8 Trim. VTX9 Trim. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | United Kingdom |
Material | Timber |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Chain of Custody Certification
PEFC Certification - Vincent Timber
Literature
VTX Preservative Treated Redwood Timber Cladding Data Sheet
Case studies

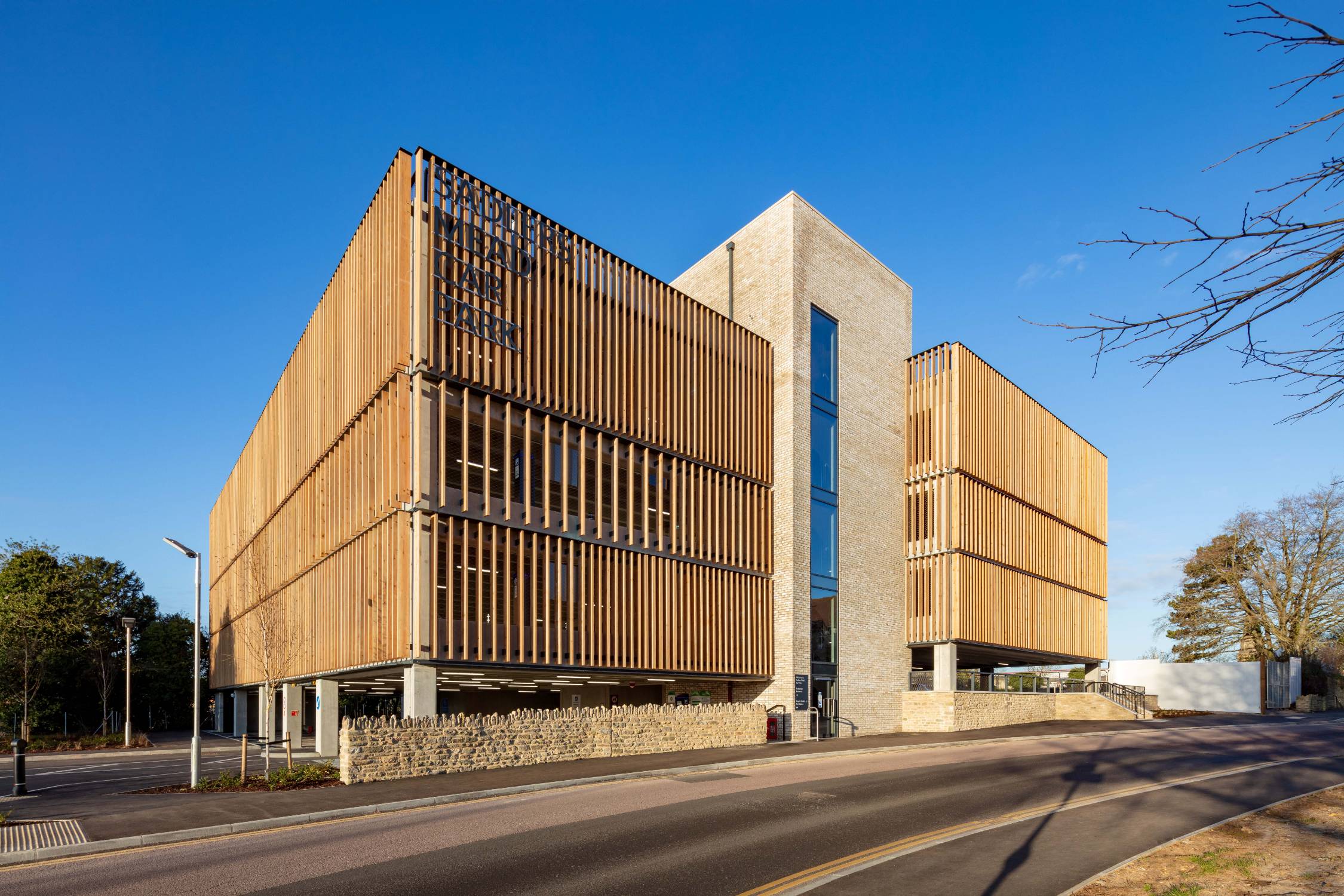

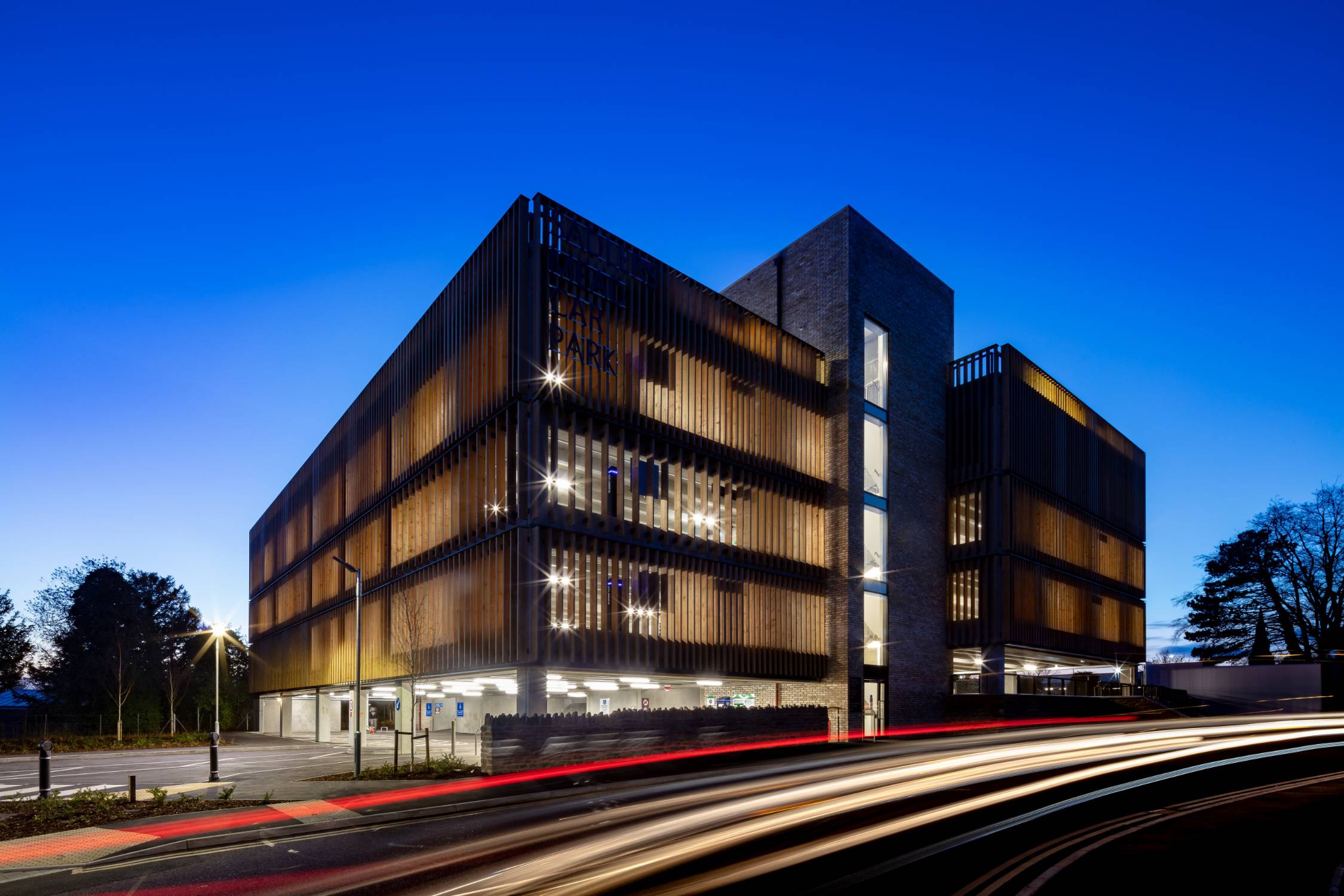

VTX Pigmented Redwood Timber Fins - Sadlers Mead Car Park Case Study
