FID SV Damper - Fire Dampers
Verified by manufacturer 4 days ago
A battery of single-blade, cut-off dampers for multi-zone fire ventilation systems.
Application
- The battery of dampers can be installed in vertical, rigid building-partition walls made of masonry blocks or solid (walls, shafts) with a minimum thickness of 120 mm.
- It is also possible to install the battery of dampers in walls and shafts, which are additionally lined with fireproof (prefabricated) panels in order to achieve their smoke tightness (S).
Description

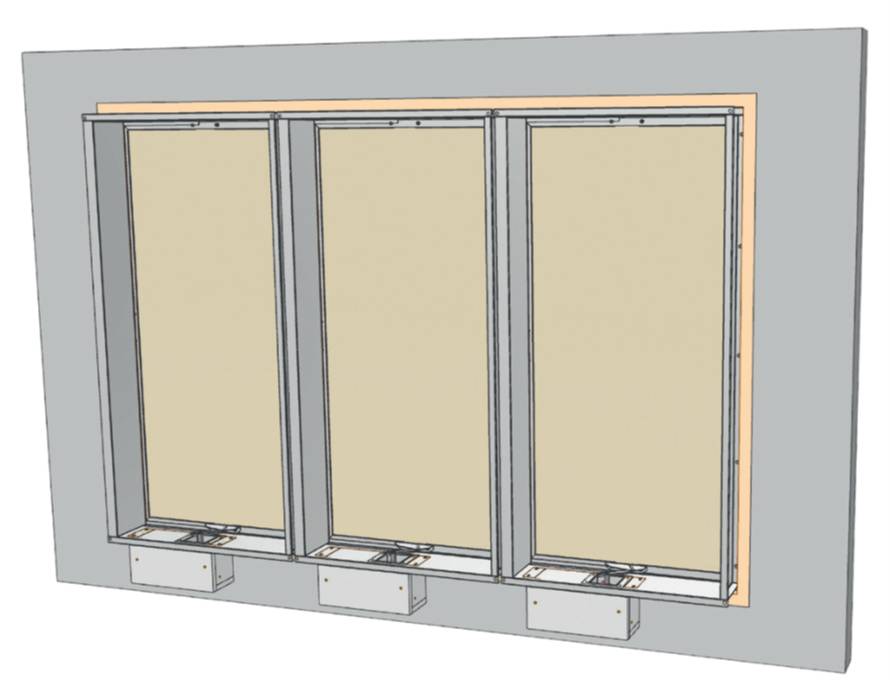

The battery of cut-off fire dampers mcr FID S/V or mcr FID S/V-M is designed for installation in automatically
actuated fire ventilation systems. The battery of dampers can consist of two or three mcr FID S/V or mcr FID S/V-M dampers, each with a vertical axis of rotation. The size of a single damper in the battery can range between 200 x 200 mm and 1500 x 710 mm (1 mm accuracy).
Features and benefits:
- Certified installation.
- Larger active surface with smaller size of the solution.
- Full range of controls.
- Mounted in walls and in rigid shafts (solid, masonry).
- Control mechanism can be mounted at the top or bottom of the battery.
General information
Color | Grey |
Finish | Galvanized |
Material | Steel Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Height | 500 mm 1000 mm 1500 mm |
Uniclass | |
CAWS | U90/445 Dampers, smoke |
Specification data - Smoke dampers
Classification data | |
Manufacturer | Mercor. |
Standard | To EN 12101-8. |
Classification | |
Standard | To EN 13501-4. |
Multi-compartment | |
Integrity class | EI 120. |
Suitability | Ve wall. |
Smoke leakage | S. |
Under pressures | 1000. |
Inside or outside | (i ↔ o). |
Smoke control use | C10 000. |
Control and monitoring | Control mechanism perpendicular to the rotation axis of the damper. Control mechanism along the rotation axis of the damper. |
Actuators | Belimo BE24. Guidance for specification option: Actuator without return spring, U = 24 V a.c./d.c. Belimo BLE24. Guidance for specification option: Actuator without return spring, U = 24 V a.c./d.c. Belimo BE24-ST. Guidance for specification option: With BKNE230-24 option – actuator without return spring, U = 24 V a.c./d.c., with SBS control system plug. Belimo BLE24-ST. Guidance for specification option: With BKNE230-24 – actuator without return spring, U = 24 V a.c./d.c., with SBS control system plug. Belimo BE230. Guidance for specification option: Actuator without return spring, U = 230 V a.c. Belimo BLE230. Guidance for specification option: Actuator without return spring, U = 230 V a.c. |
Material | Galvanized steel. Guidance for specification option: Zn 275 g/m² coating. Stainless steel. 1.4404 acid-proof steel. |
Casing | Standard length. 400 mm long casing. |
Rotation | Vertical axis. Vertical axis - mechanism at the bottom of the battery. Vertical axis - mechanism at the top of the battery. |
Sustainability data
Material | Steel Stainless steel |
