WIP LD Damper - Smoke Damper
Verified by manufacturer 4 days ago
Multi-blade smoke control damper for multi-zone fire ventilation systems.
Application
- For installation in manually or automatically operated fire ventilation systems.
- The devices are used in fire ventilation systems or mixed fire and comfort ventilation systems (smoke evacuation or air supply systems).
Description

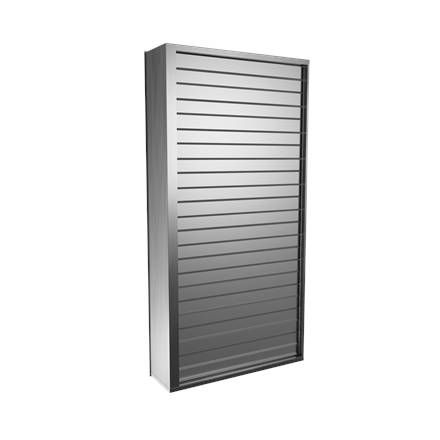

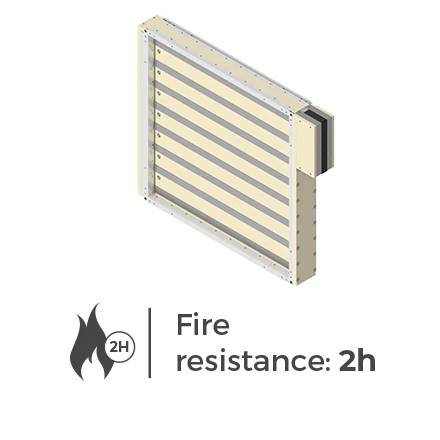

mcr WIP LD/V, mcr WIP LD/V-M smoke control dampers consist of a casing with a rectangular cross-section, multiple moving damper blades – louvres rotating around their own axes – and a remotely activated trigger and control mechanism, which is installed inside the damper clearance. The damper casing is made of galvanized steel sheets or stainless steel sheets. The damper is also provided with a connection flange on one side. The other end is the so-called 'bare-end'. The damper casing total length is 350 mm. Damper louvres are made of galvanized steel sheets or stainless steel. The damper blades revolve on their own axes, which consist of steel pins. A ventilation gasket is provided on the blades to ensure that the damper is “cold” sealed.
Features and benefits:
- Certificate of constancy of performance 2434-CPR-0240.
- Certified for compliance with EN 12101-8.
- Rated under EN 13501-4 and tested under EN 1366-10.
- Dedicated for application in smoke removal and air supply shafts.
- Large active area, small resistances, quick installation.
- Certified installation with a system grille in set as per EN 12101-8.
General information
Color | Grey |
Finish | Galvanized |
Material | Steel Stainless steel |
Shape | Rectangle Square |
Width | 300 mm 400 mm 500 mm 600 mm 700 mm |
Height | 600 mm 700 mm 800 mm 900 mm 1000 mm |
Uniclass | |
CAWS | U90/445 Dampers, smoke |
Specification data - Smoke dampers
Classification data | |
Standard | To EN 12101-8. |
Classification | |
Standard | To EN 13501-4. |
Multi-compartment | |
Integrity class | EI 120. Guidance for specification option:
E 600. Guidance for specification option:
|
Suitability | Ve wall. |
Smoke leakage | S. |
Under pressures | 1000. |
Inside or outside | (i → o). |
Smoke control use | C10 000. |
Actuators | Belimo BE24. Guidance for specification option: Actuator without a return spring, U = 24 V a.c./d.c. Belimo BE24-ST. Guidance for specification option: With BKE230-24 option – actuator without a return spring, for the SBS control system. Belimo BE230. Guidance for specification option: Actuator without a return spring, U = 230 V a.c./d.c. Belimo BEE24. Guidance for specification option: Actuator without a return spring, U = 24 V a.c./d.c. Belimo BEN24. Guidance for specification option: Actuator without a return spring, U = 24 V a.c./d.c. Belimo BEE24-ST. Guidance for specification option: With BKE230-24 option – actuator without a return spring, for the SBS control system. Belimo BEN24-ST. Guidance for specification option: With BKE230-24 option – actuator without a return spring, for the SBS control system. Belimo BEE230. Guidance for specification option: Actuator without a return spring, U = 230 V a.c./d.c. Belimo BEN230. Guidance for specification option: Actuator without a return spring, U = 230 V a.c./d.c. |
Material | Galvanized steel. Guidance for specification option: Zn 275 g/m² coating. Stainless steel. 1.4404 acid-proof steel. |
Accessories | Not required. mcr MWS system masking element. Guidance for specification option: The masking elements are painted in RAL 9010 as a standard (available in any colour from the RAL range on request). |
Colour/ Finish | Not painted. Guidance for specification option: Standard. Painted RAL 9005. Guidance for specification option: Damper blades and internal casing from the side of the actuator are painted black. |
