General Purpose Wall Ties - Type 2 - Cavity Tie
Verified by manufacturer 24 days ago

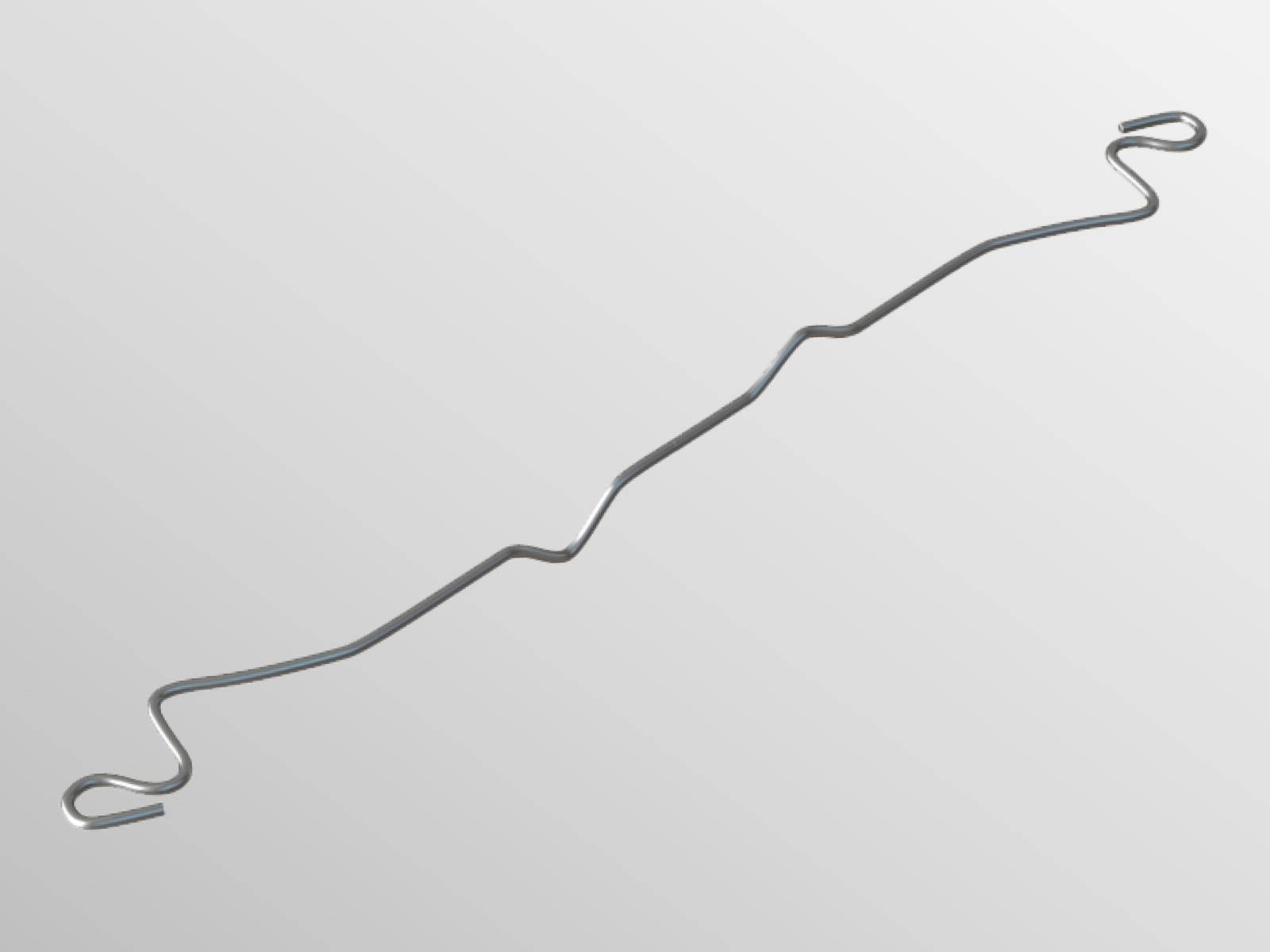

EN2 General purpose wall ties

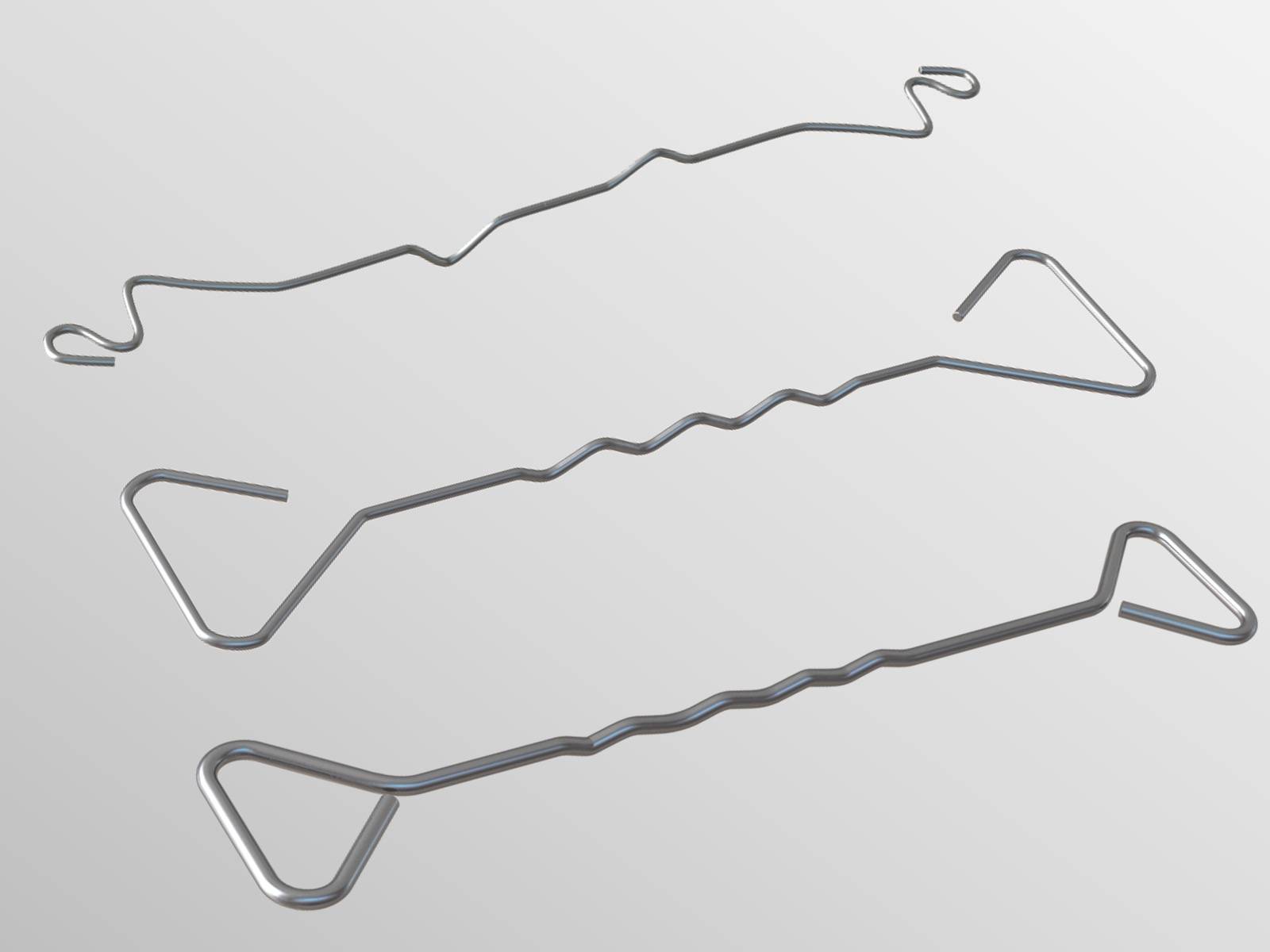

EN2 General purpose wall ties
ISO 9001 Quality Management
Certificate type
General purpose wall ties for securing two leaves of a cavity wall to each other, allowing them to act as one structurally.
Application
- General-purpose wall ties are suitable for use in small commercial buildings and domestic dwellings. Suitable for buildings with a maximum height of 15 m and cavity widths of 50–125 and 125–150 mm.
Description
For securing two leaves of a cavity wall to each other, allowing them to act as one structurally.
Features and benefits:
- Each tie incorporates a change of shape to discourage moisture moving across the tie.
- Available with a dedicated clip to secure insulation (usually in sheet form) within the cavity.
- Designed to allow installation either way up.
- Tested as Type B (sound).
- Tested as Type 2 (strength) to BS EN 845-1.
- Selected ties are BBA certified 17/5462.
- UKCA certified.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 304. |
Length | 150 mm Guidance for specification option: V26 only. 200 mm Guidance for specification option: EN2. 225 mm Guidance for specification option: EN2. 250 mm Guidance for specification option: EN2 or V26. 275 mm Guidance for specification option: VE2 only. |
Uniclass | |
CAWS | F30/25 Cavity wall ties used with partial fill insulation F30/215 Cavity wall ties used with partial fill insulation F30/220 Wall ties F30/26 Wall ties F30/24 Cavity wall ties F30/214 Cavity wall ties |
Specification data - Cavity wall ties
Standard | To BS EN 845-1. |
Tie type | PD 6697 Type 2 (Masonry – general purpose).Guidance for specification option: General-purpose wall tie used in small commercial buildings and domestic dwellings. Suitable for buildings with a maximum height of 15 m and cavity widths from 50 to 125 mm. Multidrip feature to prevent moisture travelling across the cavity. Design means the tie can be installed either way up. |
Material | Grade 304 stainless steel. |
Length | 200 mm.Guidance for specification option: Cavity: 50–75 mm. Supplied in boxes of 250 or bags of 50. 225 mm.Guidance for specification option: Cavity: 76–100 mm. Supplied in boxes of 250 or bags of 50. 250 mm.Guidance for specification option: Cavity: 101–125 mm. Supplied in boxes of 250. |
End types | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Design embedment length (minimum) | 62.5 mm. |
Movement | Manufacturer's standard. |
Additional requirements | |
Mortar joint thickness (minimum) | 10 mm. |
Resistance to water crossing cavity | Resistant (multidrip feature). |
Slope tolerance | Manufacturer's standard. |
Compressive load capacity | Manufacturer's standard.Guidance for specification option: Dependent on length specified; consult manufacturer's Declaration of Performance (DoP) literature for details. |
Tensile load capacity | Manufacturer's standard.Guidance for specification option: Dependent on length specified; consult manufacturer's Declaration of Performance (DoP) literature for details. |
Dynamic stiffness | Type B. |
Tie-mounted insulation retaining clips | ECO-clips.Guidance for specification option: Universal 80 mm-diameter insulation clip made using less plastic for reduced environmental impact. Supplied in bags of 250 or 50. Not required. |
Third party accreditation | BBA 17/5462; UKCA marked. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Wall Ties Brochure
EN2-200-STST Declaration of Performance
EN2-225-STST Declaration of Performance
EN2-250-STST Declaration of Performance
VE2-275-STST Declaration of Performance
V26-250-STST Declaration of Performance
