Housing Wall Ties - Type 4 Light Duty - Cavity Tie

Verified by manufacturer 7 days ago

VE4-200-STST (200 mm)

Vista Engineering Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

BBA approved, stainless steel light duty wall tie used in domestic dwellings. Suitable for buildings with a maximum height of 10 m and cavity widths from 50–150 mm. (Type 4 Wall Tie)

Jump to:
+44 (0)1663 736700 Website

Application

Suitable for use in domestic dwellings. Suitable for buildings with a maximum height of 10 m and cavity widths of 50–150 mm.

Description

The UK's only BBA approved stainless steel wire Type 4 housing wall tie.


For securing two leaves of a cavity wall to each other, allowing them to act as one structurally.

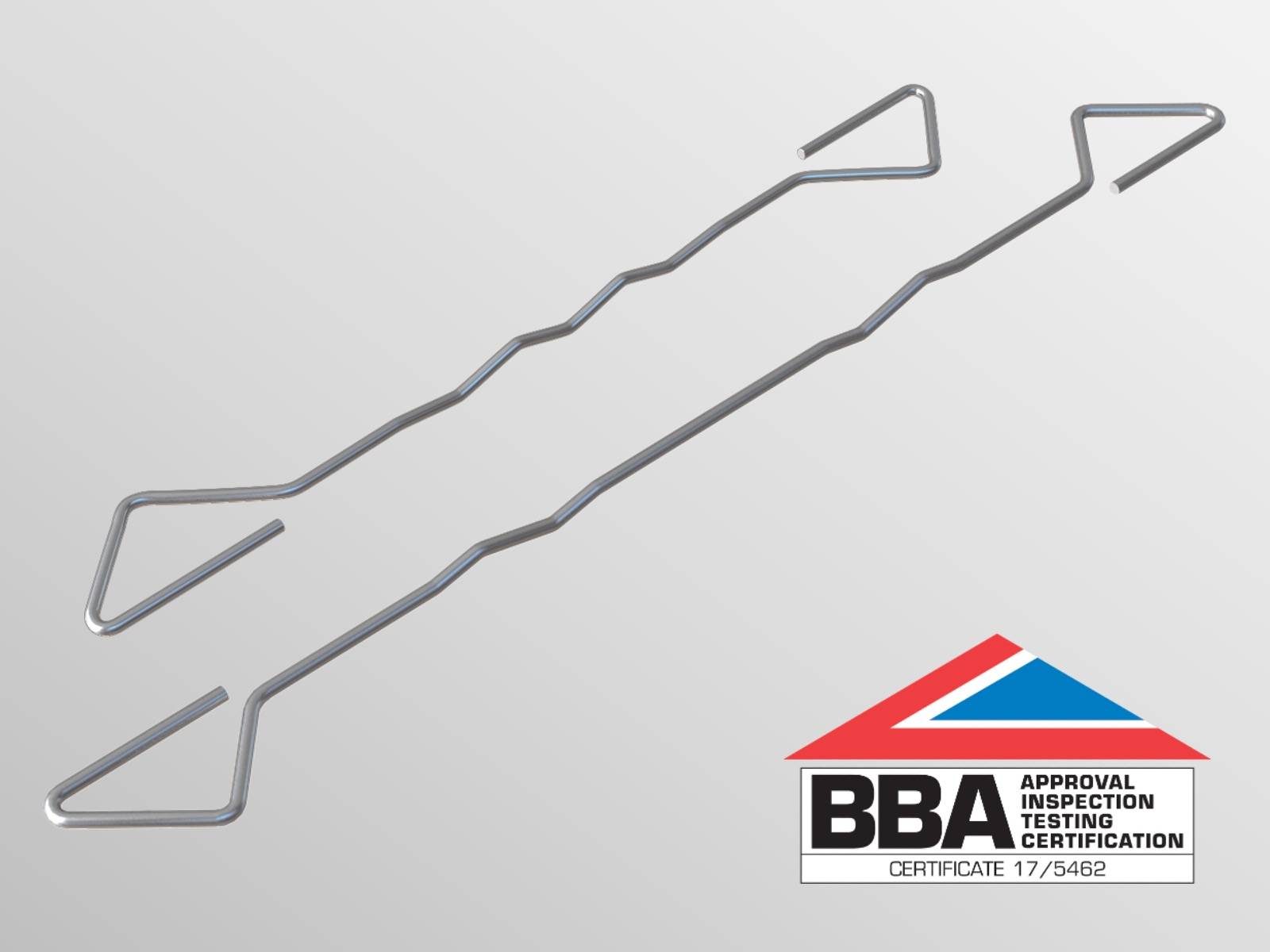

The VE4 comes in two styles. The first has a multi-drip in the middle of the tie, while the second has two offset double drips

placed apart. This second style is intended for walls with larger cavities ensuring the drip sits in the clear cavity. The double-drip

style is only available for the 275mm tie. Both designs allow

them to be installed in either orientation.


Features and benefits:

  • Incorporates a change of shape to discourage moisture moving across the tie.
  • Available with a dedicated clip to secure insulation (usually in sheet form) within the cavity.
  • Designed to be installed either way up.
  • Tested as Type A (sound).
  • Tested as Type 4 (strength) to BS EN 845-1.
  • BBA certified 17/5462.
  • UKCA certified.

General information

Color

Silver

Material

Stainless steel

Guidance for specification option:

Grade 304.

Length

200 mm

225 mm

250 mm

275 mm

Uniclass

Pr_20_85_84_19 Cavity wall tiesPrimary

CAWS

F30/25 Cavity wall ties used with partial fill insulation

F30/215 Cavity wall ties used with partial fill insulation

F30/220 Wall ties

F30/26 Wall ties

F30/24 Cavity wall ties

F30/214 Cavity wall ties

Specification data - Cavity wall ties

Standard

To BS EN 845-1.

Tie type

PD 6697 Type 4 (Masonry – light duty).

Guidance for specification option:

A light-duty wall tie used in domestic dwellings. Suitable for buildings with a maximum height of 10 m and numerous cavity widths from 50 to 150 mm.

Multidrip feature to prevent moisture travelling across the cavity. The design means that the tie can be installed either way up.

Material

Grade 304 stainless steel.

Length

200 mm.

Guidance for specification option:

Supplied in boxes of 250 or bags of 50.

End types

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Design embedment length (minimum)

62.5 mm.

Movement

Manufacturer's standard.

Additional requirements

-

Mortar joint thickness (minimum)

10 mm.

Resistance to water crossing cavity

Resistant (multidrip feature).

Slope tolerance

Manufacturer's standard.

Compressive load capacity

557 N.

Tensile load capacity

1256 N.

Dynamic stiffness

Type A.

Tie-mounted insulation retaining clips

ECO-clips.

Guidance for specification option:

Universal 80 mm-diameter insulation clip made using less plastic for reduced environmental impact.

Supplied in bags of 250 or 50.

Not required.

Third party accreditation

BBA 17/5462; UKCA marked.

Cavity width

50–75 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA - CAVITY WALL TIES AND INSULATION RETAINING CLIPS

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management
