High Movement Timber Frame Ties - Type 7 - V62
Verified by manufacturer 26 days ago
100 mm-long, for 50 mm cavities
100 mm-long, for 50 mm cavities
ISO 9001 Quality Management
Certificate type

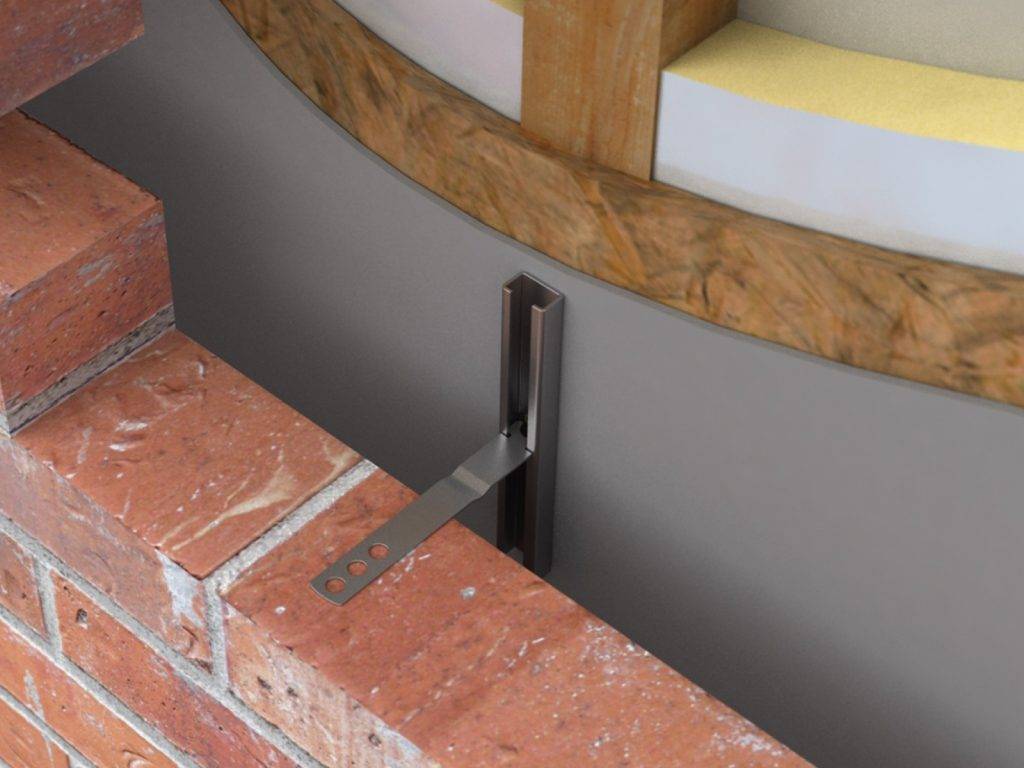

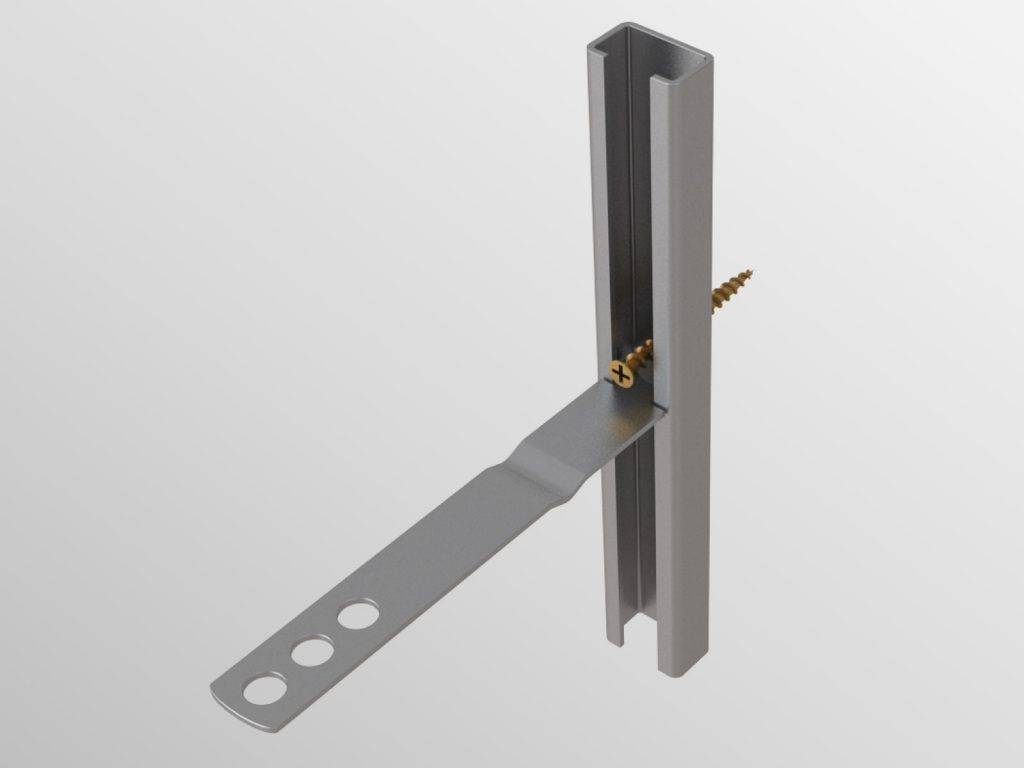

Type 7 channel and strip tie system for use where the building height is up to 18 m (five to seven stories).
Application
For use in domestic dwellings and small commercial buildings from five to seven storeys high.
Description
Type 7 channel and strip tie system for use where the building height is up to 18 m (five to seven stories).
Features and benefits:
- This type of timber frame wall tie is right for domestic dwellings and small commercial buildings from five to seven storeys high.
- They are suitable for buildings with a maximum height if 18 m. Their suitability should be calculated for each location and the Vista technical team can be consulted for advice.
- Maximum differential movement of 65mm.
- Manufactured from grade 304 stainless steel.
- Non combustible (as defined in the national Building Regulations).
- Excellent corrosion resistance and a service life of not less than 60 years.
- In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
- Tested as Type B (sound) and as Type 7 (strength) to BS EN 845-1.
- Fits cavities from 50–150 mm.
- Supplied with 50 x 4 mm stainless steel screws, and in boxes of 250.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 304. |
Length | 100 mm 125 mm 150 mm 175 mm 200 mm |
Uniclass | |
CAWS | F30/25 Cavity wall ties used with partial fill insulation F30/24 Cavity wall ties F30/26 Wall ties F30/214 Cavity wall ties F30/215 Cavity wall ties used with partial fill insulation F30/220 Wall ties |
Specification data - Cavity wall ties
Standard | To BS EN 845-1. |
Tie type | Type 7 (strength) to BS EN 845-1.Guidance for specification option: Channel and strip tie system for use where the building height is up to 18 m (five to seven stories). |
Material | Grade 304 stainless steel. |
Length | 100 mm.Guidance for specification option: Cavity: 50 mm. Manufacturer guidanceSupplied in boxes of 250. |
End types | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Design embedment length (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Movement | Tolerant.Guidance for specification option: Maximum differential movement of 65 mm. |
Additional requirements | |
Mortar joint thickness (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Resistance to water crossing cavity | Resistant (drip feature). |
Slope tolerance | Manufacturer's standard. |
Compressive load capacity | Mean load capacity, as received: 1510 N.Guidance for specification option:
Values are identical when allowing for timber shrinkage. |
Tensile load capacity | Mean load capacity, as received: 2340 N.Guidance for specification option:
Allowing for timber shrinkage:
|
Dynamic stiffness | Type B. |
Tie-mounted insulation retaining clips | ECO-clips.Not required. |
Third party accreditation | UKCA marked. |
Fixing | Guidance for specification option: For masonry end; insert requirements. |
Integral accessories | 50 x 4.0 mm stainless steel screws. |
Cavity | 50 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
ISO 9001 Quality Management
ISO 9001
