HEXATHERM® XDRAiN - Drainage XPS Inverted Roof Insulation
Verified by manufacturer 6 months ago
BM Trada
Certificate type
Extruded polystyrene inverted thermal roof boards featuring integrated drainage channels.
Application
Inverted thermal roof boards with drainage channels.
Description
Featuring integrated drainage channels on their underside which speeds up the shedding of rainwater from the roof, eliminating the need for a separating drainage mat.
Features and benefits:
- 100% recyclable.
- CFC and HCFC free.
- Closed cell structure.
- Code for Sustainable Homes Pol 1 compliant.
- High compressive strength.
- High thermal performance.
- Integral drainage channels.
- Wide range of thicknesses available: 50–160 mm.
- Zero ODP & Less than 5 GWP.
- Manufactured in accordance with BS EN 13374, and tested to BS EN 12267.
- Long term water absorption by immersion (% volume, to BS EN 12087): <0.7%
Grade (to BS EN 826): CS300.
General information
Color | Yellow |
Finish | Smooth |
Material | High density extruded polystyrene (XPS) Guidance for specification option: (XPS) |
Shape | Rectangle |
Length | 1250 mm |
Width | 600 mm |
Height | 50 mm 60 mm 75 mm 80 mm 100 mm |
Uniclass | |
CAWS | J21/10 Warm deck roof coating J21/115 Warm deck roof coating J31/10 Warm deck roof coating J31/120 Warm deck roof coating J31/130 Inverted roof coating J42/10 Warm deck roof covering J42/110 Warm deck roof covering J42/120 Inverted roof covering |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164. |
Third-party certification | ISO 9001:2015. ISO 14001:2015. Q-Mark 0107. |
Compressive strength (minimum) at 10% compression | To BS EN 826), 300 kPa. |
Thermal conductivity (maximum) | To BS EN 12667, 0.033—0.034 W/mK. |
Thickness | 50 mm.60 mm.70 mm.75 mm.80 mm.90 mm.100 mm.120 mm.140 mm.160 mm.Manufacturer guidanceInsulation. |
Face size (length x width) | 1250 x 650 mm. |
Edges | Shiplap. |
Density | To BS EN 1602, 34 kg/m³ minimum. |
TemperatureRange | -50 to +75°C. |
Water vapour diffusion factor (to EN 12086) | 100—200 µ. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |

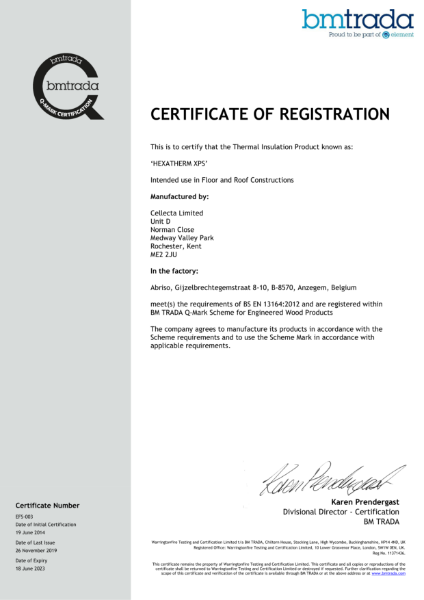

Third party certifications
BM Trada
Q-Mark Building Insulation Products
