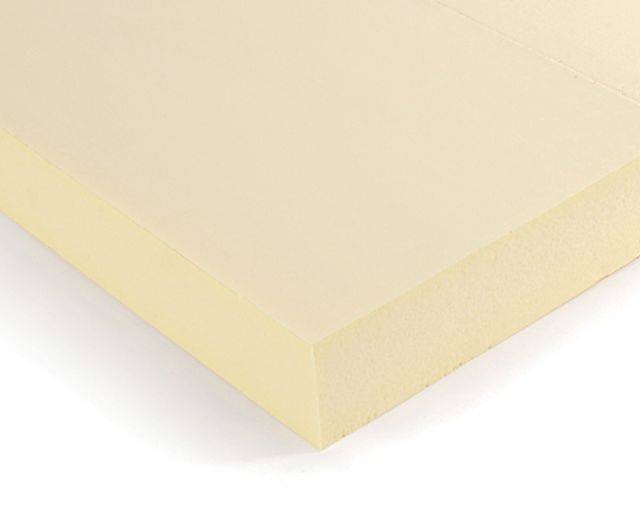

HEXATHERM® XFLOOR 700 - High Strength, XPS Floor Insulation
Verified by manufacturer 6 months ago
50 mm.
50 mm.
High thermal performance and compressive strength, low water absorption extruded polystyrene insulation for domestic, commercial and industrial applications.
Application
Insulation for domestic, commercial and industrial applications
Description
Features and benefits:
- 100% recyclable.
- Excellent life-long thermal performance.
- High compressive strength.
- CFC, HCFC, HFC and HFA free.
- Closed-cell structure.
- Code for Sustainable Homes Pol 1 compliant.
- Zero ODP & Less than 5 GWP.
- It is available in thicknesses of 50–160 mm.
- Manufactured using reclaimed CO2 as a blowing agent and has a global warming potential (GWP) of less than 5.
- Manufactured in accordance with BS EN 13374, and tested to BS EN 12267.
- Ideal for floor applications.
- Long term water absorption by immersion (% volume, to BS EN 12087): <0.7%.
Grade (to BS EN 826): CS500.
General information
Color | Yellow |
Finish | Smooth |
Material | High density extruded polystyrene (XPS) Guidance for specification option: (XPS) |
Shape | Rectangle |
Length | 1250 mm |
Width | 600 mm |
Height | 50 mm 60 mm 80 mm 100 mm 120 mm |
Uniclass | |
CAWS | E20/200 Proprietary underslab insulation E20/30 Underslab insulation M10/290 Floating construction M10/40 Floating construction M11/220 Mastic asphalt floor underlay |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164. |
Third-party certification | ISO 9001:2015. ISO 14001:2015. |
Compressive strength (minimum) at 10% compression | 700 kPa. |
Thermal conductivity (maximum) | To BS EN 12667, 0.034 W/mK.Guidance for specification option: < 80 mm. |
Thickness | 50 mm. |
Edges | Shiplap. |
TemperatureRange | -50 to +75°C. |
Water vapour diffusion factor (to EN 12086) | 100—200 µ. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
