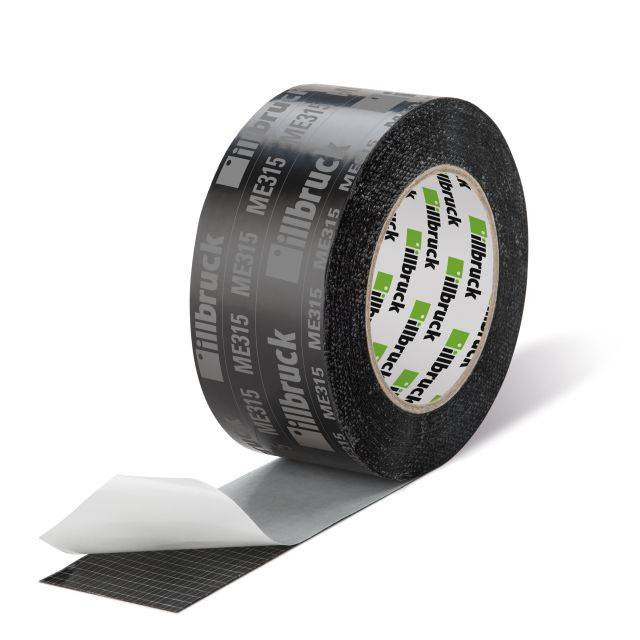

illbruck ME315 Total Protection Tape

Verified by manufacturer 6 months ago

illbruck – a brand of Tremco CPG UK Ltd Third party certifications:
  • EC1plus

    EC1plus

    Certificate type

A purpose made proprietary internal and external sealing tape.

Jump to:
+44 (0)1942 251400 Website

Application

Sealing of the overlapping and perimeter joints of breather membranes, vapour barrier membranes. May also be used as a standalone sealing tape between sheathing board horizontal and vertical butt joints and at the interface with the board and slab edge.

Description

A proprietary single-sided adhesive tape for interior and exterior use, providing a high-performance air and weather-tight seal to linear joints between membranes and other types of narrow construction joints.


Usually primerless adhesion to most common substrates which should be dry, grease , dust and debris free. Consolidate the bond by applying pressure with a stout seam roller by rolling over the top of the tape where there is a solid surface underneath.


Features and benefits:

  • For interior and exterior use.
  • Quick and easy application.
  • Highly UV-resistant.
  • Can be used within partially open facades.
  • Weather-resistant.
  • Highly moisture resistant adhesive.
  • Excellent adhesive bond strength to most common substrates.
  • Very soft to touch.


For Technical Data Sheets and Safety Data Sheets, please refer to the illbruck website Download Centre.

General information

Color

Black

Silver

Finish

Gloss

Material

Polyethylene

Shape

Rectangle

Length

25000 mm

Width

150 mm

100 mm

50 mm

Height

0.3 mm

Warranty description

-

Manufacturer guidance

Any product which has been applied (a) in accordance with Tremco CPG UK Ltd written instructions and (b) in any applications recommended by Tremco CPG UK Ltd, but which is proved to be defective, will be replaced free of charge.

Uniclass

Pr_35_90_87_69 Polymer-based adhesive sealant tapesPrimary

CAWS

H92/780 Air and vapour control layer

H92/785 Breather membrane

P10/60 Air and vapour control layer

P10/310 Air and vapour control layer

P10/320 Breather membrane

P10/65 Breather membrane

Product range

High Performance Sealing & Bonding Tape

Specification data - Polymer-based adhesive sealant tapes

Material

Polyethylene foil.

Bond

Acrylic dispersion adhesive.

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class E.

Guidance for specification option:

(Exempt from the requirements of Approved Document B, Part B4 Regulation 7. ME315 is classed as a seal or sealing tape up to a maximum width of 150 mm).

Air permeability

To DIN EN 12114, <0.1m³/m².hr @ 600Pa.

Colour

Gloss black/ silver.

Width

50 mm.

100 mm.

150 mm.

UV resistance

12 months full exposure.

Guidance for specification option:

Permanent in facades with louvres up 35 mm or no more than 50% of surface area.

Application temperature

-10 to +40°C.

Service temperature

-40 to +100°C.

Bonding

To BS EN 1939, 35 N/25 mm.

Guidance for specification option:

Approximate, dependent on ambient temperature and RH.

Execution

-

Manufacturer guidance

As per manufacturers' Technical Data Sheet. Primer AT140 is required when bridging over known barriers to adhesion such as over-applied and smeared Fire Rated Silicone based sealants applied between horizontal and vertical butt joints in sheathing boards and at the head & foot of sheathing boards at the slab edge interface. Apply the tape wrinkle and bubble free, do not stretch the tape when applying. Apply in pre-cut short over lapping sections or continuously dierct from the roll.

Third party certifications

EC1plus

EC1plus

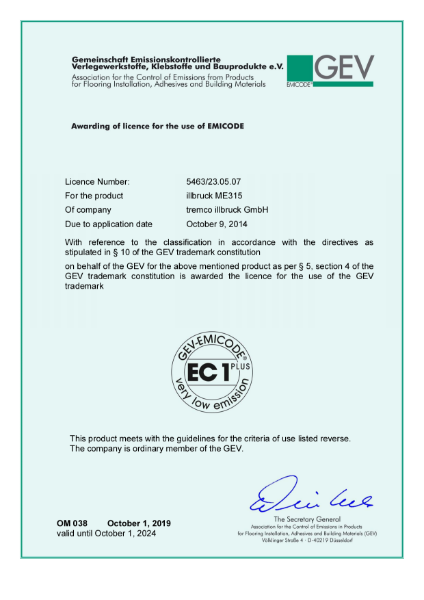

ME315 EC1 Plus Certificate
