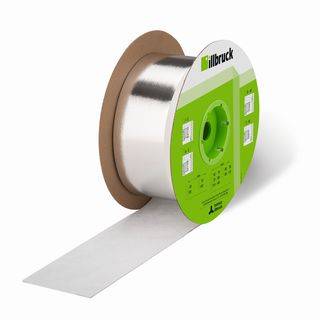

illbruck ME322 Internal Tape 100

Verified by manufacturer 6 months ago

illbruck – a brand of Tremco CPG UK Ltd

A self-adhesive internal air and vapour tight sealing tape to make the final connection from illbruck vapour barriers to the internal face of the window frame.

Jump to:
+44 (0)1942 251400 Website

Application

For internal use only to provide the final air and vapour tight connection between the illbruck ME060 A2 Vapour Barrier and the internal face of the window, door or curtain wall.

Description

ME322 Internal Tape 100 is a fully self-adhesive backed PE foil-face tape for making the final air and vapour tight connection between illbruck Vapour Control barrier membranes and the internal face of the window or door.


Features and benefits:

  • Airtight according DIN 4108-7.
  • Vapour barrier.
  • Plaster compatible.
  • Self-adhesive.
  • High SD-value.
  • Easy application.


For Technical Data Sheets and Safety Data Sheets, please refer to the illbruck website Download Centre.

General information

Color

Silver

White

Material

Polyethylene

Fleece

Aluminium

Foil

Laminate

Shape

Rectangle

Length

50000 mm

Width

140 mm

100 mm

70 mm

Warranty description

-

Manufacturer guidance

Any product which has been applied (a) in accordance with Tremco CPG UK Ltd written instructions and (b) in any applications recommended by Tremco CPG UK Ltd, but which is proved to be defective, will be replaced free of charge.

Uniclass

Pr_35_90_87_69 Polymer-based adhesive sealant tapesPrimary

CAWS

P10/60 Air and vapour control layer

P10/310 Air and vapour control layer

H92/780 Air and vapour control layer

Product range

Window Perimeter Sealing Membranes (Internal)
i3 - 3 level sealing system

Specification data - Polymer-based adhesive sealant tapes

Material

Polyethylene (PE) non woven fleece and aluminium foil laminate.

Bond

Acrylic dispersion self adhesive.

Fire performance

-

Reaction to fire

To EN 13501-1, Class E.

Guidance for specification option:

Exempt from requirements of Approved Document B.

Air permeability

< 0.1m³/m²/hm@50Pa.

Size

50 000 x 140 mm.

50 000 x 100 mm.

50 000 x 70 mm.

Colour

Silver/ off-white.

Water vapour resistance

To EN ISO 12572, sd-value 100 m.

Liquid water penetration resistance

To EN ISO 12572, 500 MNs.g.

Temperature resistance

-25° to +60°C.

Application temperature

+5°C to +45°C.

Storage

12 months in cool dry conditions, without exposure to UV radiation.

Accessories

Tape measure.

Cutting shears.

Stout seam roller.
