Janus C4 Multi Controller with 2 Door Blade
Verified by manufacturer 20 days ago
ISO/IEC 27001:2022 Information security, cybersecurity and privacy protection — Information security management systems — Requirements
Certificate type
ISO 9001 Quality Management
Certificate type

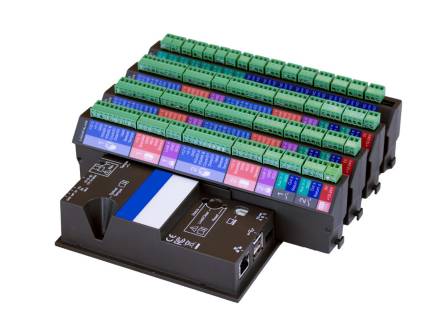

Janus C4 Multi-Blade Controller is an access control system controller for use with Janus C4 host software fitted with 2-door blade plug-in unit. Up to four blades may be fitted in a multi-controller
Application
The JanusC4 Multi Controller with 2 Door Blade is suitable for various settings, including:
- Office buildings.
- Educational institutions.
- Healthcare facilities.
- Industrial complexes.
- Multi-site enterprises requiring centralized access management.
Description
The Janus C4 Multi-Blade Controller is an access control system controller for use with Janus C4 host software. The controller kit is supplied with one 2-door blade fitted.
The 2-door blade is a plug-in unit that can be used with the Janus C4 Multi-Blade Controller, the 2-Door Blade enables the connection of two readers and two doors in JanusC4 access control systems.
The muli-controller allows the ability to fit up to 4 blades which can be any combination according to requirements. The options are 2 Door Blades (Part No: JC4-ADV-BL-2D) each supporting two doors and two readers or OSDP Blades (Part No: JC4-ADV-BL-OSDP) each supporting two doors and four readers, or I/O Blades (Part No: JC4-ADV-BL-IO16), each supporting up to eight supervised inputs and eight volt-free relay outputs.
Features and benefits:
- Multi-Blade Controller can be used powered using either a 12V external power supply (either 5A or 8A) or POE/POE+.
- Can be fitted in the standard Grosvenor enclosure (Part No: ADV-ENC-8A) or an alternative enclosure.
- Supports both IP and RS-485 host communications (note: if using RS-485 a line header will be required).
- Supports various card technologies, including proximity cards, smart cards, and even bio-metric readers, depending on the hardware used.
General information
Color | Black |
Finish | Other |
Material | Plastic |
Shape | Rectangle |
Length | 148 mm Guidance for specification option: Base unit only. 197 mm Guidance for specification option: With blades. |
Width | 205 mm |
Height | 38 mm Guidance for specification option: Base unit only. 65 mm Guidance for specification option: With blades. |
Warranty description | Five year |
Uniclass | |
CAWS | W90/130 Electronic access control system W90/363 Access control units |
Specification data - Access control units
Standards | To EN 55022:2010 Class B, EN 50130-4:2011 inc A1:2014 and IEC 62599-2:2010. |
Type of operation | Networked. |
Number of doors per controller | Up to eight. |
Communication interface | Ethernet.Guidance for specification option: Ethernet 10/100 BASE-T. RS-485.Guidance for specification option: RS-485 2-wire 19.2 k baud. |
Visual indication | Status LEDs. |
Interfaces | |
Door lock relays | Up to eight. |
Door status monitoring | Up to eight. |
Readers | Up to eight. |
Request-to-exit buttons | Up to eight. |
Rated operational voltage (Ue) | 12 V.d.c.Power over ethernet (POE).Power over ethernet (POE)+. |
Rated operational current (In) | 300 mA (maximum). |
Battery backup | |
Battery location | Not required.External battery backup.Guidance for specification option:
|
Battery backup capacity | Not required.12 V lead-acid battery up to 7 Ah capacity.Guidance for specification option: Optional. |
Random access memory (RAM) capacity (minimum) | 256 MB. |
Control features | |
Anti-passback | Anti-passback supported. |
Enclosure | |
Material and finish | Plastic. |
Colour | Black. |
Accessories | USB port.Guidance for specification option: Two USB 2.0 Type A ports; intended for Grosvenor-approved products only. Can be used to update controller firmware. |
Controller | Multi-blade controller. |
Blade | 2 Door Blade. |
Enclosure | Grosvenor enclosure (ADV-ENC). Other. Guidance for specification option: Insert requirements. |
Security | Optical tamper (Grosvenor enclosure only). External tamper switch (volt-free). |
Operating temperature | 0°C to +49°C. |
Humidity | 5–85±5% at 30±2°C. |
Weight | 0.285 kg. |
Dimensions | Base unit only: 205 x 148 x 38 mm. |
Sustainability data
Material | Plastic |
Third party certifications

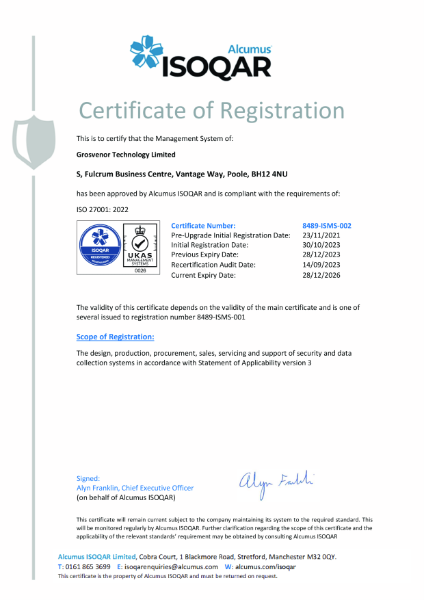

ISO/IEC 27001:2022 Information security, cybersecurity and privacy protection — Information security management systems — Requirements
