Marker Blocks

Verified by manufacturer 3 months ago

60 mm Single size packs

Brett Landscaping Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • BES 6001

    BES 6001

    Certificate type

Marker blocks faced with a coloured non-reflective epoxy paint, in a choice of colours.

Jump to:
+44 (0)345 60 80 570 Website

Application

Domestic and commercial use: hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, heavy duty pavements, roof top and balcony applications.

Description

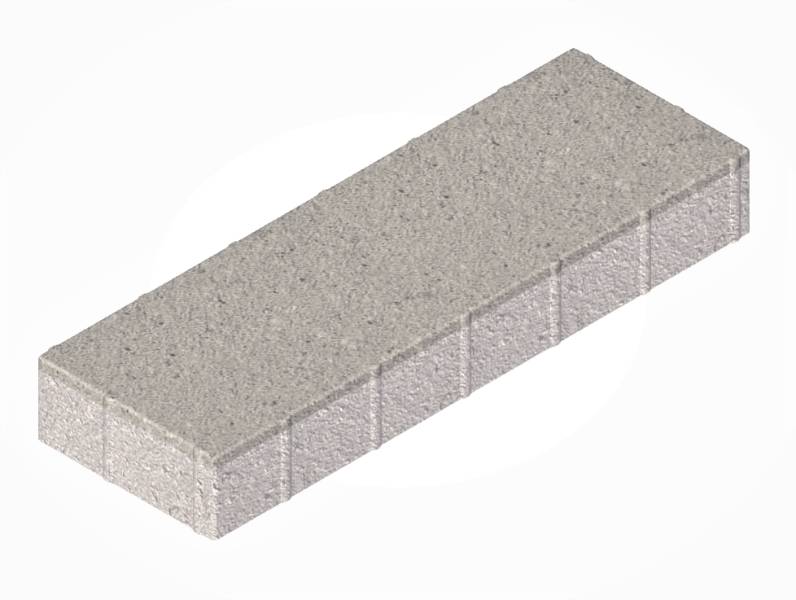

Standard concrete block paviours faced with a coloured non-reflective finish and come in a choice of three colours (Black, white and yellow). Where greater visibility is required, the marker blocks can also have Ballotini glass beads integrated in the surface coating of the block to reflect light, even in very low light conditions.


The bespoke design allows a variety of patterns to be easily achieved for integration into the majority of the manufacturer's paving ranges – however, they are most commonly used within the Omega, Alpha and Beta ranges.


Since they can be used within most Brett Landscaping ranges, the blocks can be used with a wide range of complementary products, as well as providing permeable and impermeable paving options.


Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information

Color

Black

White

Yellow

Finish

Painted

Guidance for specification option:

Non-reflective epoxy paint.

Material

Concrete

Length

100 mm

140 mm

280 mm

Width

105 mm

140 mm

200 mm

210 mm

Height

60 mm

80 mm

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/113 Conventional concrete block paving overlay

Specification data - Concrete paving blocks

Standard

To BS EN 1338: 2003.

Physical properties

-

Colour

Black.

Guidance for specification option:

(BK).

Yellow.

Guidance for specification option:

 (YW).

White.

Guidance for specification option:

 (WH).

Finish

Coloured non-reflective epoxy paint.

Guidance for specification option:

Standard facing finish.

Coloured non-reflective epoxy paint with Ballotini glass beads.

Guidance for specification option:

Ballotini glass beads integrated in the surface coating of the block to reflect light, even in very low light conditions.

Profile

-

Paver type

Regular plan form.

Dimensions and associated tolerances

-

Nominal sizes

105 x 140 x 60 mm.

140 x 140 x 60 mm.

200 x 100 x 60 mm.

210 x 140 x 60 mm.

210 x 280 x 60 mm.

Weathering resistance

Guidance for specification option:

Manufacturer's standard.

Abrasion resistance

Guidance for specification option:

Manufacturer's standard.

Slip resistance

Guidance for specification option:

Manufacturer's standard.

Recycled content (minimum)

Manufacturer's standard.

Type

Hand lay.

Other requirements

Guidance for specification option:

Insert requirements: Various line/ coating options available on request.

Third-party certification

CE marked.

Strength

Characteristic tensile splitting strength: ≥3.6 MPa; Failing load: ≥250 N/mm.

Tolerances on plan dimension and thickness (nominal)

Thickness: ±3 mm; Plan size: ±2 mm.

Sustainability data

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Environmental Management System Certification - BS EN ISO 14001:2015

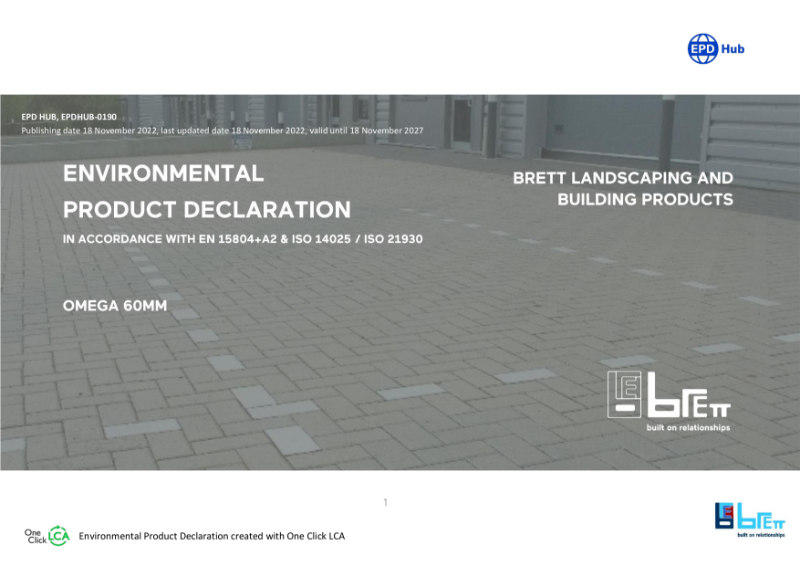

EPD

EPD

Environmental Product Declaration - Concrete Block Paving Barrow

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

Occupational Health & Safety Management System Certification - BS ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management System Certification - BS EN ISO 9001:2015

BES 6001

BES 6001

Responsible Sourcing of Construction Products BES 6001
